33

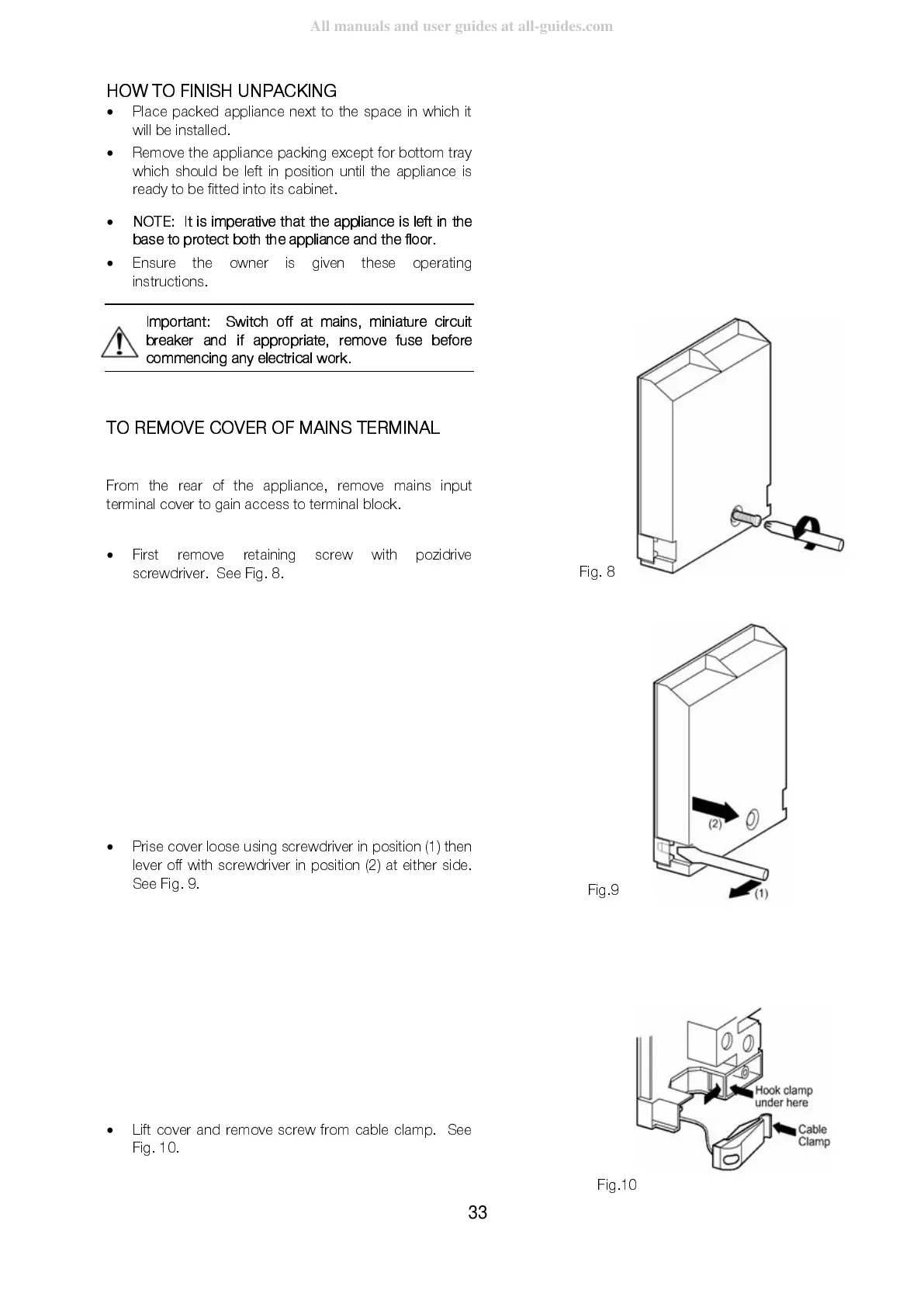

HOW TO FI N I SH UNP ACK I N G
•
Place packed appliance next to the space in which it
will be installed.
•
Remove the appliance packing except for bottom tray
which should be left in position until the appliance is
ready to be fitted into its cabinet.
•
NOTE: It is imperative that t he appliance is left in the
base to protect both the applia nce a nd the floor.
•
Ensure the owner is given these operating
instructions.
Important: Switch off at mains, miniature circuit
breaker and if appropriate, remove fuse before
commenci ng any ele ctr ical work.
TO REMO V E CO VER OF MAI NS T ERMI N AL
From the rear of the appliance, remove mains input
terminal cover to gain access to terminal block.
•
First remove retaining screw with pozidrive
screwdriver. See Fig. 8.
•
Prise cover loose using screwdriver in position (1) then
lever off with screwdriver in position (2) at either side.
See Fig. 9.
•
Lift cover and remove screw from cable clamp. See
Fig. 10.
Fig. 8
