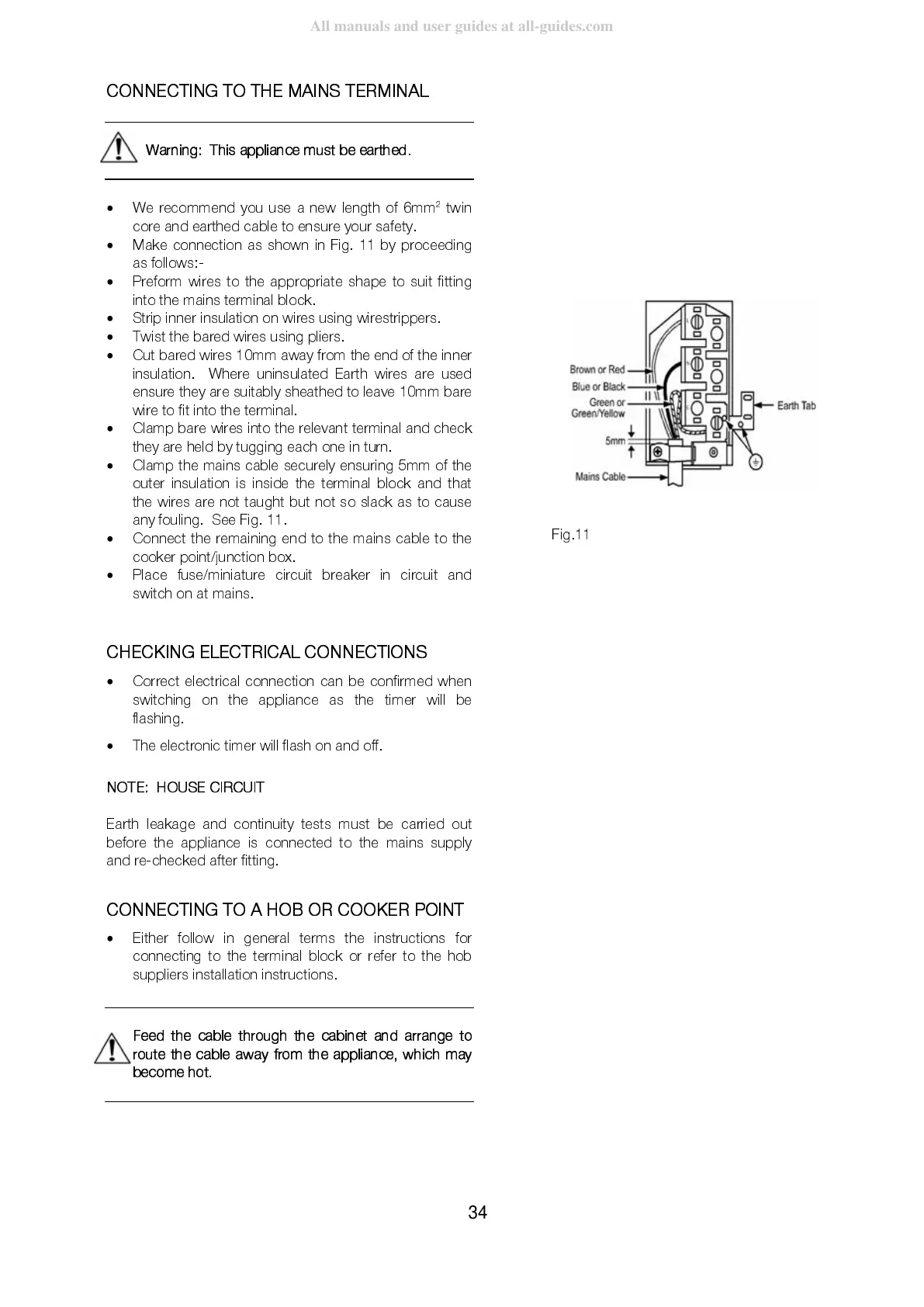

34
CONN EC T IN G TO T H E MA INS TER MI NA L
Warnin g: This applia nce mu st be eart hed.
•
We recommend you use a new length of 6mm
2
twin
core and earthed cable to ensure your safety.
•
Make connection as shown in Fig. 11 by proceeding
as follows:-
•
Preform wires to the appropriate shape to suit fitting
into the mains terminal b lock.
•
Strip inner insulation on wires using wirestrippers.
•
Twist the bared wires using pliers.
•
Cut bared wires 10mm away from the end of the inner
insulation. Where uninsulated Earth wires are used
ensure they ar e suitably sheathed to leave 10mm bare
wire to fit into the terminal.
•
Clamp bare wires into the relevant terminal and check
they are held by tugging each one in turn.
•
Clamp the mains cable securely ensuring 5mm of the
outer insulation is inside the terminal block and that
the wires are not taught but not so slack as to cause
any fouling. See Fig. 11.
•
Connect the remaining end to the mains cable to the
cooker point/junction box.
•
Place fuse/miniature circuit breaker in circuit and
switch on at mains.
CHE CKI N G E L E CTRIC A L CO NNE C T I ON S
•
Correct electrical connection can be confirmed when
switching on the appliance as the timer will be
flashing.
•
The electronic timer will flash on and off.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried out
before the appliance is connected to the mains supply
and re-checked after fitting.
CONN EC T IN G TO A HO B OR COOK ER POIN T
•
Either follow in general terms the instructions for
connecting to the terminal block or refer to the hob
suppliers installation instructions.
Feed the cable through the cabinet and arrange to
route the cable away from the appliance, which may
become hot.
Fig.11
