2. Adjust the turndown setting on the valve
 • Iftted,removetheknobsfromthevalves.
 • Removerubbergrommetsfromcontrolpanelholes.
 • Adjusttheturndownscrewfullyclockwiseoneach
of the 4 valves using a small flat blade screwdriver.
The valve is now set correctly for LPG operation (see
diagram).
3. Connect the test point adaptor to the barbecue gas inlet
 • Fitthetestpointadaptorensuringthebluesealing
washer is in place and the arrow is pointing in the
direction of gas flow. Do not over-tighten.
4. Connect the hose to the test point adaptor
 • Applythreadtapeorsealanttothemalethreadon
the hose and screw into the test point adaptor.
5. Replace the ‘gas type’ sticker
 • Locatethe‘NaturalGas’stickerlocatedonthe
barbecue gas inlet and remove it. Put the Universal
LPG sticker in its place.
4 universal LPG installation electrolux integrated barbecue
Preparing the unit for Universal LPG installation.
This barbecue is supplied set up for Natural Gas and is
labelled accordingly. A Universal LPG conversion Kit is
included to enable conversion to Universal LPG.
NOTE
Conversion of this unit to Universal LPG must be carried
out by a qualified licensed person and a Certificate of
Compliance must be issued to the owner on completion of
the installation and conversion.
The required components for conversion have been
supplied. The components are:
• Hoseandregulatorassembly
• Smallplasticbagcontaining4brassinjectors
• 1UniversalLPGsticker
• 1testpointadaptor
• 1sealingwasher
1. Change the injectors
 • Removethefrontcover.
 • Releasetheburnerretainerclipasshown.
 • Unscrewandreplacethe4injectornippleslocated
in the end of each tube feeding the burners. The
Universal LPG injectors have a 0.95mm diameter
orifice in them. They appear substantially smaller
than the Natural Gas injectors.
 • Re-fastenthecliptoretainthetubeintheburner.
Do not over tighten or distort supply tube.
 • Fitthefrontcoverbackonandfastenscrews.

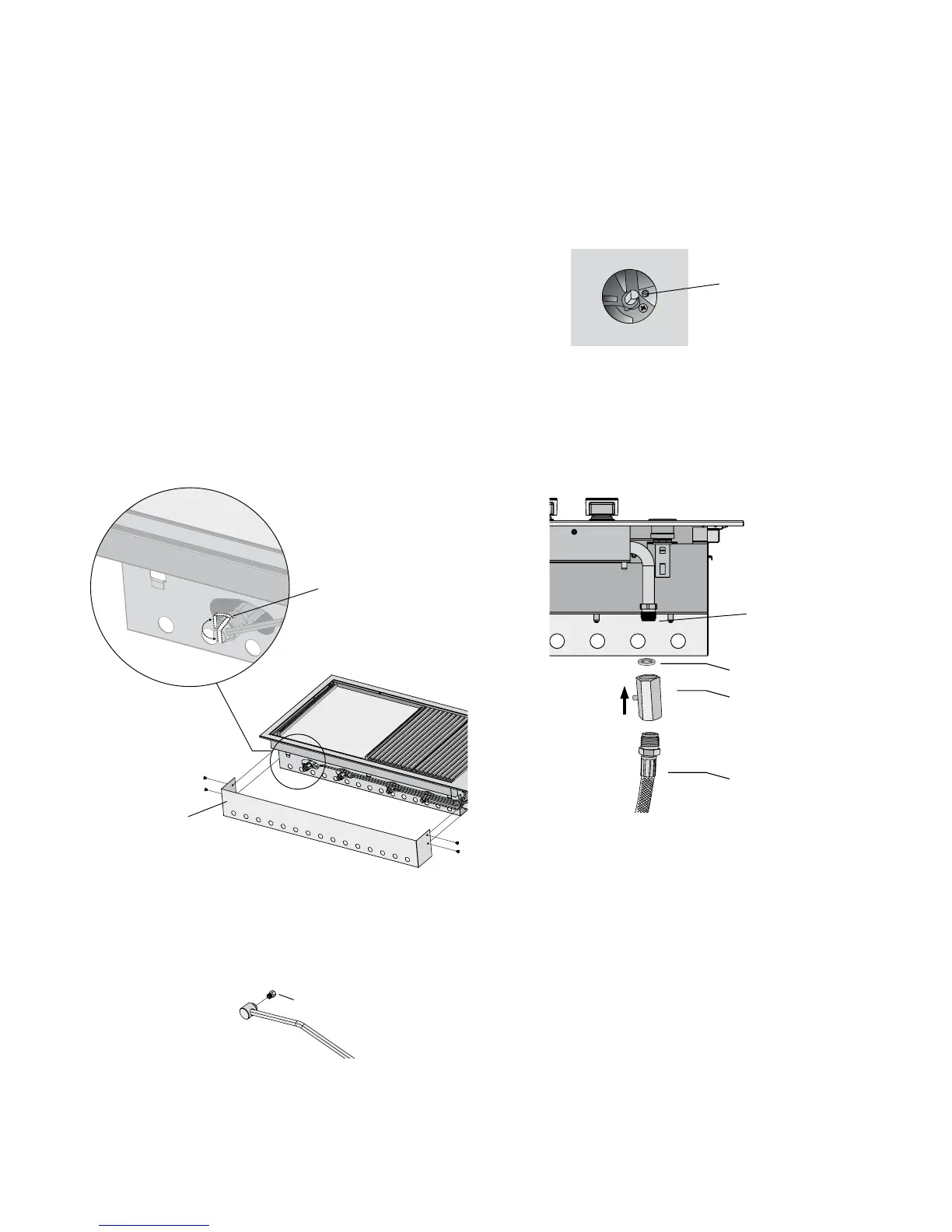

Universal LPG installation
LPG injector
turndown screw
test point adaptor –
ensure arrow is pointing
in the right direction
hose with tapered thread
– thread tape required
sealing washer
barbecue gas inlet
remove spring clip
by rotating over
burner tube end
front cover
