Electrolux ESF 472 - Use of the Upper Basket; Adjusting the Height of the Upper Basket; Reversible Spray Arm

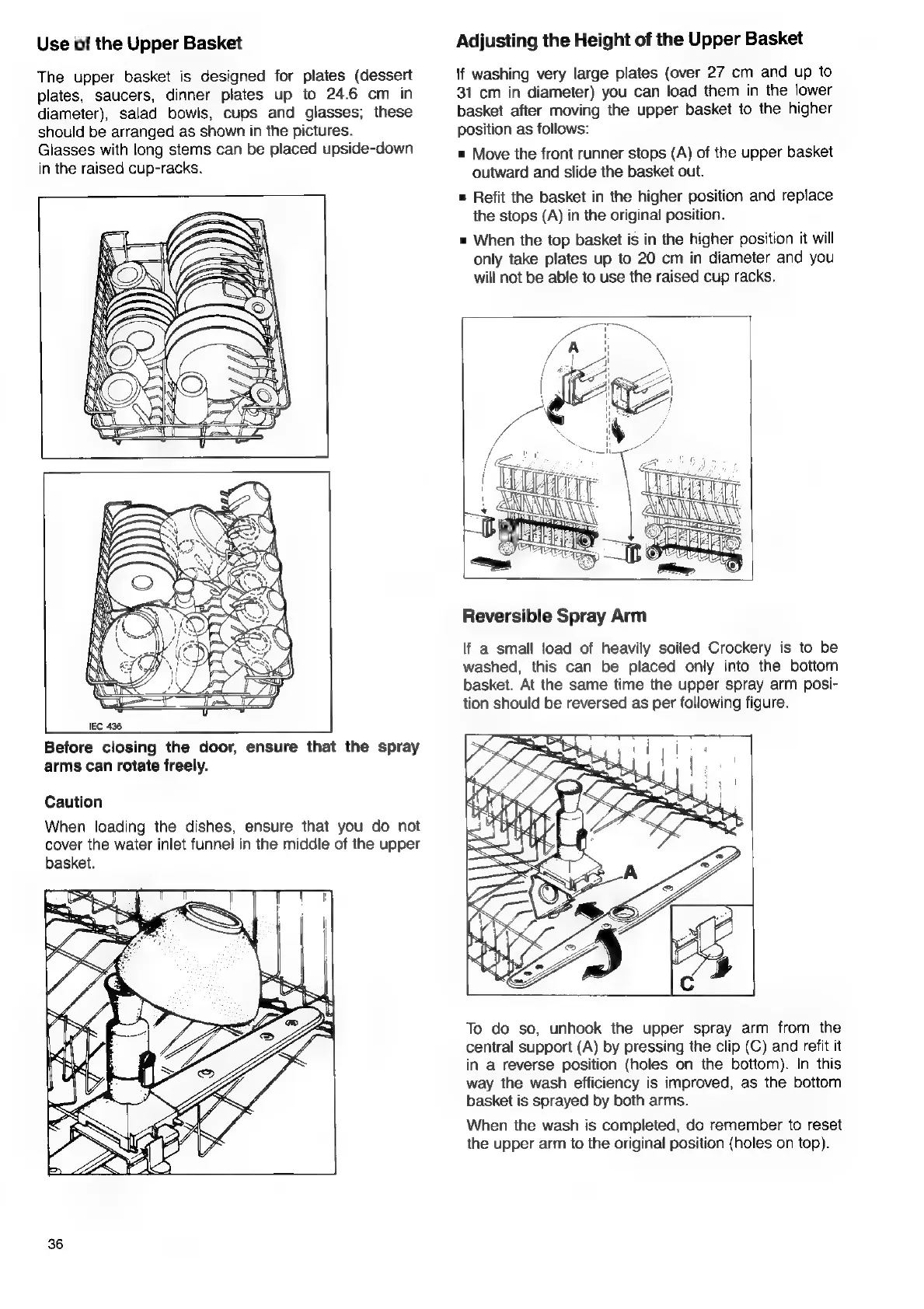

Use of the Upper Basket
The upper basket is designed for plates (dessert
plates, saucers, dinner plates up to 24.6 cm in
diameter), salad bowls, cups and glasses; these
should be arranged as shown in the pictures.
Glasses with long stems can be placed upside-down
in the raised cup-racks.
Before closing the door, ensure that the spray
arms can rotate freely.
Caution
When loading the dishes, ensure that you do not
cover the water inlet funnel in the middle of the upper
basket.
36
Adjusting
the
Height
of
the
Upper
Basket
\f washing very large plates (over 27 cm and up to
31
cm
in
diameter)
you
can
load
them
in
the
lower
basket
after
moving
the
upper
basket
to
the
higher
position as follows:
= Move the front runner stops (A) of the upper basket
outward and slide the basket out.
= Refit the basket in the higher position and replace
the stops (A) in the original position.
=
When
the
top
basket
is
in
the
higher
position
it
will
only
take
plates
up
to
20
cm
in
diameter
and
you
will
not
be
able
to
use
the
raised
cup
racks.
a
ed
‘i
Reversible Spray Arm
If a small load of heavily soiled Crockery is to be
washed, this can be placed only into the bottom
basket. At the same time the upper spray arm posi-
tion should be reversed as per following figure.
To do so, unhook the upper spray arm from the
central support (A) by pressing the clip (C) and refit it
in a reverse position (holes on the bottom). In this
way the wash efficiency is improved, as the bottom
basket is sprayed by both arms.
When the wash is completed, do remember to reset
the upper arm to the original position (holes on top).
