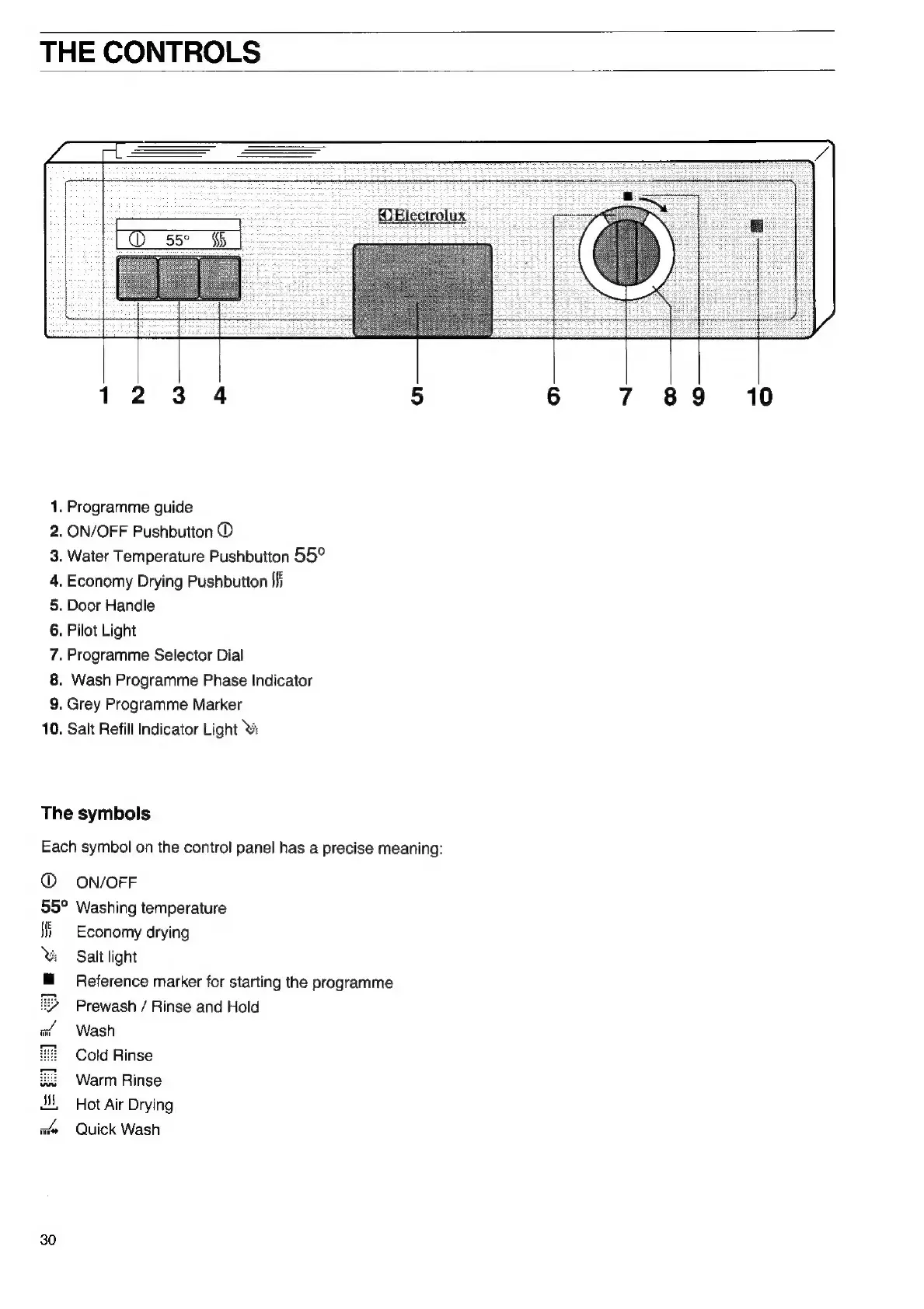

THE CONTROLS
DO 55° §&
1. Programme guide
2. ON/OFF Pushbutton ©
3. Water Temperature Pushbutton 55°
4, Economy Drying Pushbutton [fi
5. Door Handle
6. Pilot Light
7. Programme Selector Dial
8. Wash Programme Phase Indicator
9. Grey Programme Marker
10. Salt Refill Indicator Light &:
The symbols
Each symbol on the control panel has a precise meaning:
© ON/OFF
55° Washing temperature
{i Economy drying
Salt light
M@ Reference marker for starting the programme
Prewash / Rinse and Hold
Wash
Cold Rinse
Warm Rinse
Hot Air Drying
Quick Wash
