ø40 mm
650-800 mm
There must be an air gap around and
below the end of drain hose. This means
that the internal diameter of the
standpipe must be larger than the outer
diameter of the hose.
The hose must not be sticked into the
standpipe more than 50 mm and it has to
be fixed in this position. The drain hose
must not be kinked.
The drain hose can be extended up to
total 3,5 m. For the extension piece use
a hose with an internal diameter at least
as large as that of the machine's own
hose. Use a suitable hose connector.
4. PRODUCT DESCRIPTION

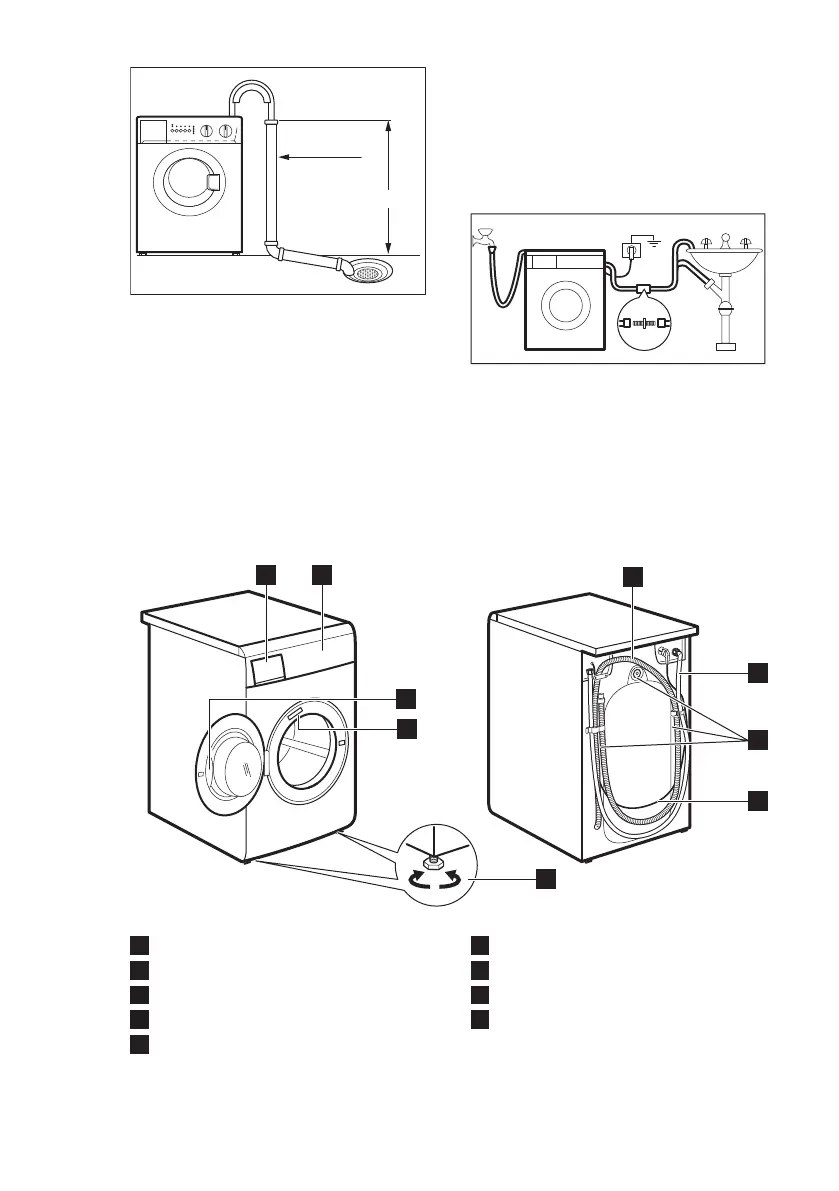

4.1 Appliance overview
1 2
6
7
9
8
4
3
5
1
Detergent dispenser drawer
2
Control panel
3
Door handle
4
Rating plate
5
Feet for levelling the appliance
6
Drain hose
7
Inlet hose
8
Transit bolts
9
Mains cable
ENGLISH 9
