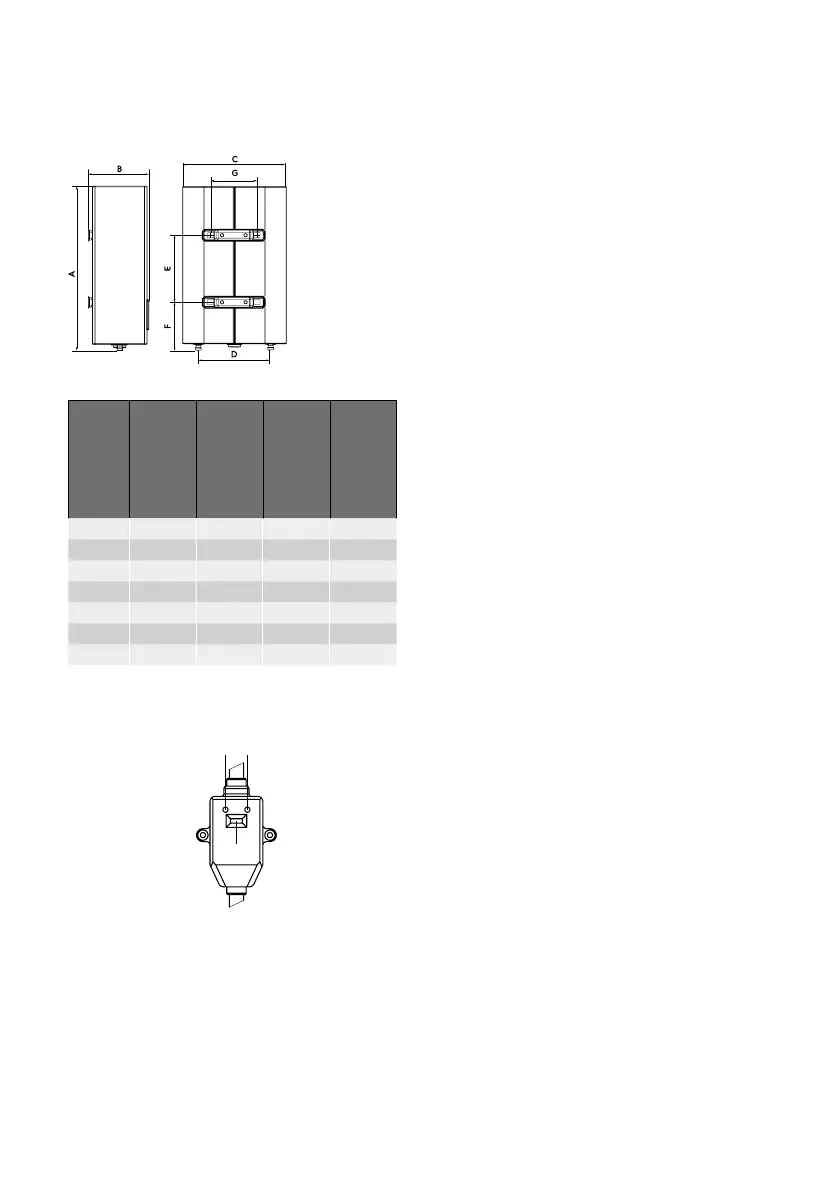

Installation dimensions and
dimensions
Fig. 7
Options/
Model
EWH 30 MXM WiFi
EEC
EWH 50 MXM WiFi
EEC
EWH 80 MXM WiFi
EEC
EWH 100 MXM WiFi
EEC
A, mm 635 970 920 1135
B, mm 260 260 350 350
C, mm 435 435 555 555
D, mm 360 360 430 430
E, mm 280 550 430 600
F, mm 201 201 267 267
G, mm 197 197 197 197
RCD (Ground Fault Interrupter)
1 2
3
Fig. 8
• 100% prevention of electric shock.
• Follow the installation instructions when
connecting the electric water heater
household battery heater.
• The Power indicator (1) will light up if the
RCD is not activated.
• Press the TEST button (2) to test the RCD.
Power indicator (1) will be disabled.
• Press button (3) to reset the RCD.
