FOR THE INSTALLER
Technical information
Dimensions height with panel 895 mm
height without panel 850 mm
width 397 mm
depth 600 mm
Power supply voltage / frequency 230 V / 50 Hz
Total power absorbed 2300 W (10 A)
Heater rating 1950 W
Water pressure minimum 0,05 MPa (0,5 bar)
maximum 0,8 MPa (8 bar)
Maximum load cotton 5,0 kg
synthetics 2,5 kg
wool 1,0 kg
Spinning speed EWT 1031 from draining position " " to 1000 rpm
EWT 931 from draining position " " to 900 rpm
This appliance complies with the following EC Directive :
- 72/23/EEC of 19.02.1973 - Low-Voltage Directive
- 89/336/EEC of 03.05.1989 (including Amentment Directive 92/31/EEC) - EMV Directive.
Installation

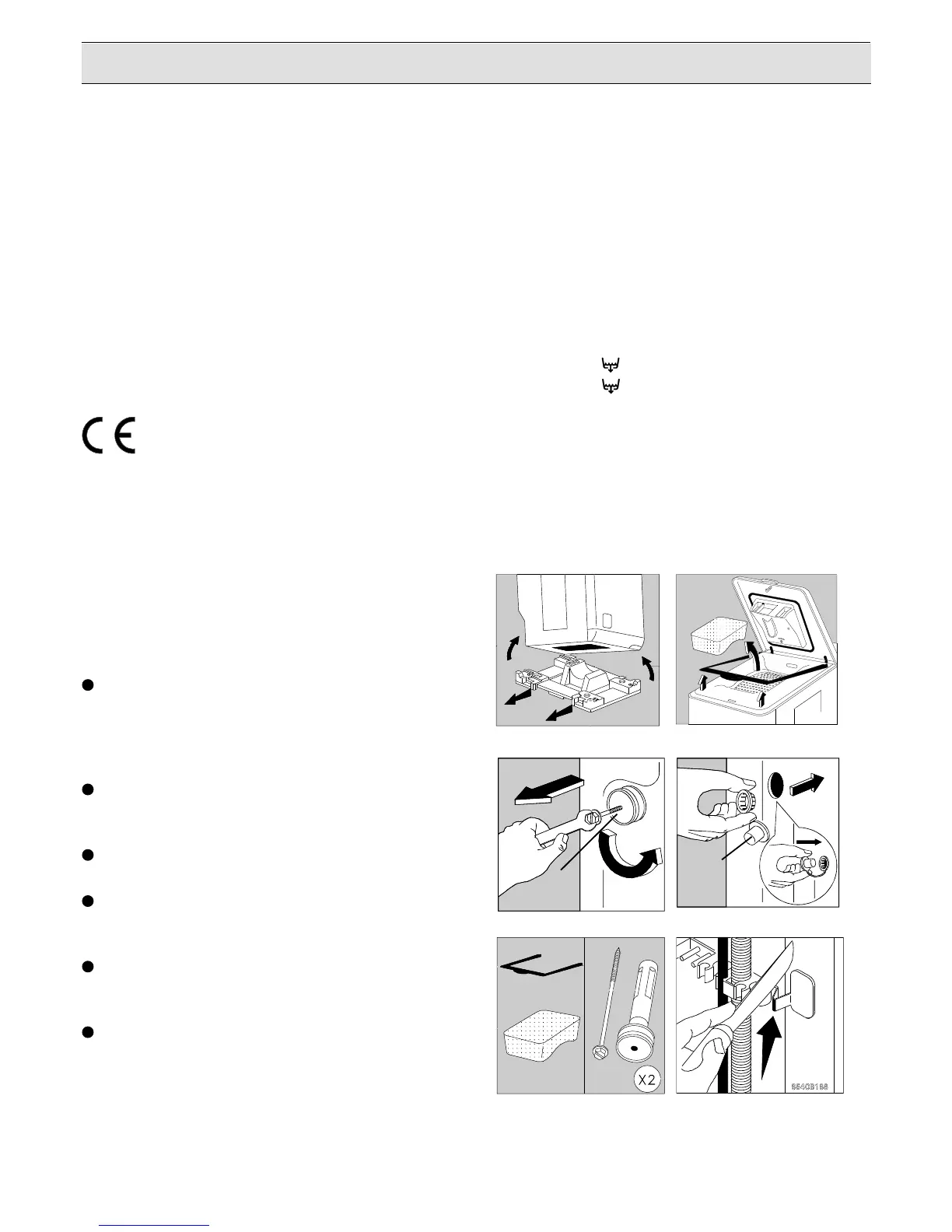

Unpacking
The parts protecting the inner components of the
machine during transit must all be removed before
using your machine for the first time. These parts
and their securing means should be kept in case
the machine has to be transported again.
Unpack the appliance. Tilt the appliance
backwards. Give to one of the back corners a
quarter turn. The appliance comes free naturally
out the polystyrene basis. Take away this basis
(fig. 1).
Open the lid of the appliance and remove the
polystyrene and plastic wedges which block the
drum. Close the lid (fig. 2).
On the back part and with a spanner, remove
the two loosened spacers (A) (fig. 3).
The holes which are now visible must be closed
with the plugs (B) provided with the appliance
(fig. 4).
Please ensure that these parts have been
removed from the machine and keep them in
case of next transport (fig. 5).
If you want to keep the alignment of your
appliance with the adjacent cupboards, you
have the possibility to cut the crossbar holding
the hoses located at the back of your washing
machine (fig. 6).
Fig. 1
Fig. 2
Fig 4
Fig 6
B
A
Fig 3
Fig 5
