Electrolux EXP35U538CW User Manual

17
ENGLISH
Plug in the unit, then press the “on/o󰘯”
button (when turned on, the unit will operate
as the last setting before shutdown.
To switch the unit o󰘯, press “on/o󰘯”
button again, then remove the plug.
Always switch the unit o󰘯 by pressing the
“on/o󰘯” button and wait for few minutes
before removing the plug.

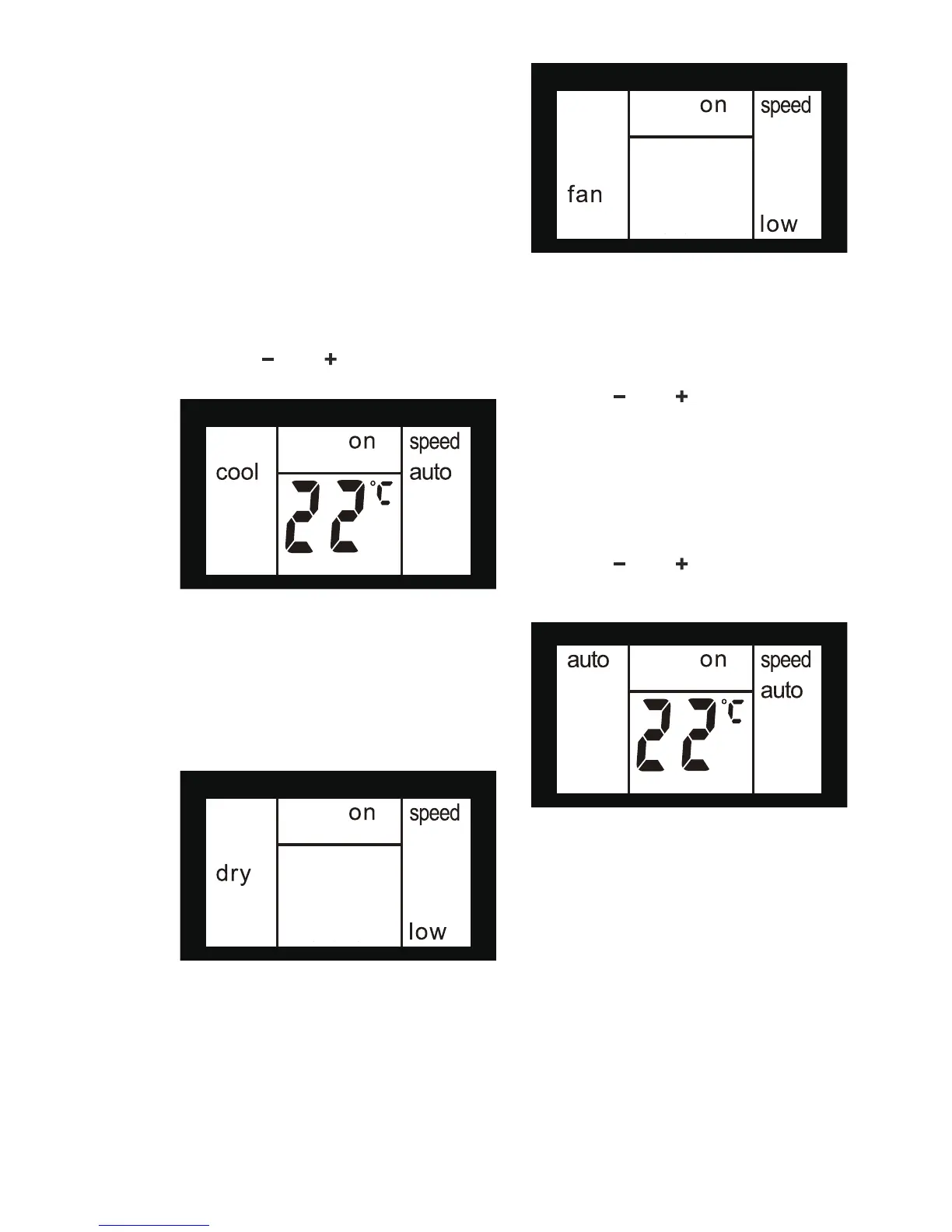

Press the “mode” button until the left side
of LCD screen displays “cool”.
Press the “fan speed” button to choose the
fan speed “auto”, “high”, “mid”, and “low”.
Press the “
” and “ ” button to choose
the temperature you want.
Press the “mode” button until the left side
of LCD screen displays “dry”.
At the same time, the “low” fan symbol
appears on the screen.
Note: In this mode, fan speed cannot
be selected.
Press the “mode” button until the left side
of LCD screen displays “heat”.
Press the “fan speed” button to choose the
fan speed “auto”, “high”, “mid”, and “low”.
Press the “
” and “ ” button to choose
the temperature you want.
Press the “mode” button until the upper
side of LCD screen displays “auto”.
Under AUTO mode, you can not select
the fan speed.
Press the “
” and “ ” button to choose
the temperature you want.
When the unit is in Cool, Heat or auto
mode, you can press the “sleep” button
to make the unit run in Sleep mode. In this
mode, the fan speed will be set as “auto”
automatically, which cannot be changed.
In Cool/Heat mode the selected
temperature will increase/decrease
by 1°C 30 minutes after the mode is
selected. The temperature will then
increase/decrease by another 1°C after
an additional 30 minutes. This new
temperature will be maintained for 7 hours
before it returns to the originally selected
temperature. This ends the “Sleep” mode
and the unit will shut down automatically.
Press the “mode” button until the left side
of LCD screen displays “fan”.
In this mode, you can select fan speed
“high”, “mid” or “low” by pressing the Fan
speed button and referring to the diagram.
Note: In this mode, the air exhaust hose
does not need to be connected.
Cool mode
Dry mode
Heat mode (For Heat & Cool models only)
AUTO mode
Sleep mode
Fan mode

Electrolux EXP35U538CW Specifications

General

Type	Monobloc mobile air conditioner
Timer	Yes
Noise level	64 dB
Cooling capacity (max)	- BTU/h
Dehumidifying capacity	1.6 l/h
Timer duration (maximum)	24 h
Air conditioner functions	Cooling
Heating capacity in watts (max)	- W
Heating energy efficiency (COP, W/W)	-
AC input voltage	220 V
Energy efficiency class (cooling)	A+
Hourly energy consumption (cooling)	3.5 kWh
Product color	White

Weight and Dimensions

Width	- mm
Weight	34000 g
