Reversing Door
WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before
servicing could result in personal injury or even
death.

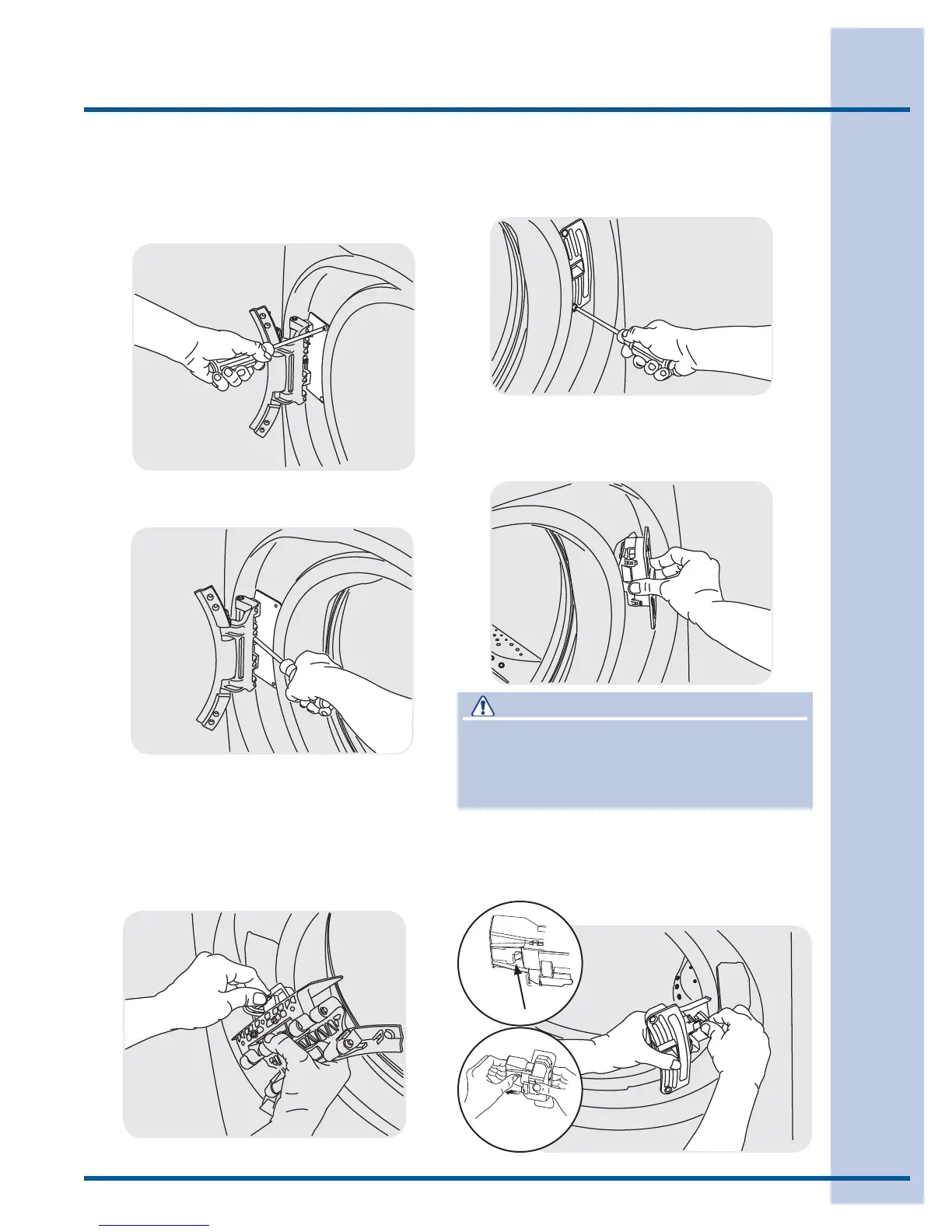

C) Removing Hinge from Front Panel
1 With the hinge in open position, remove 2
short, course-thread, panhead screws on
hinge plate.
D) Removing Door Lock from Front Panel
1 Remove 2 short, course-thread, panhead
screws from the door lock.
2 Remove 3 short, fi ne-thread, counter-sunk
screws in hinge side.
3 Slide the hinge toward the center of the front
panel, and then pivot the hinge inward while
slowly pulling it away from the front panel to
expose the attached harness.
4 Lift up on the tab and the release harness
from the retainer, allowing the harness to lay
outside the front panel.
2 Slide the lock toward the outer edge of the
front panel. Pivot the lock slightly outward
while slowly pulling it through opening to
expose the attached harness.
3 Release the harness from the terminal with
the small lever on back of the lock. Separate
the harness from the lock, allowing the
harness to lay outside the front panel.
To Next Page
