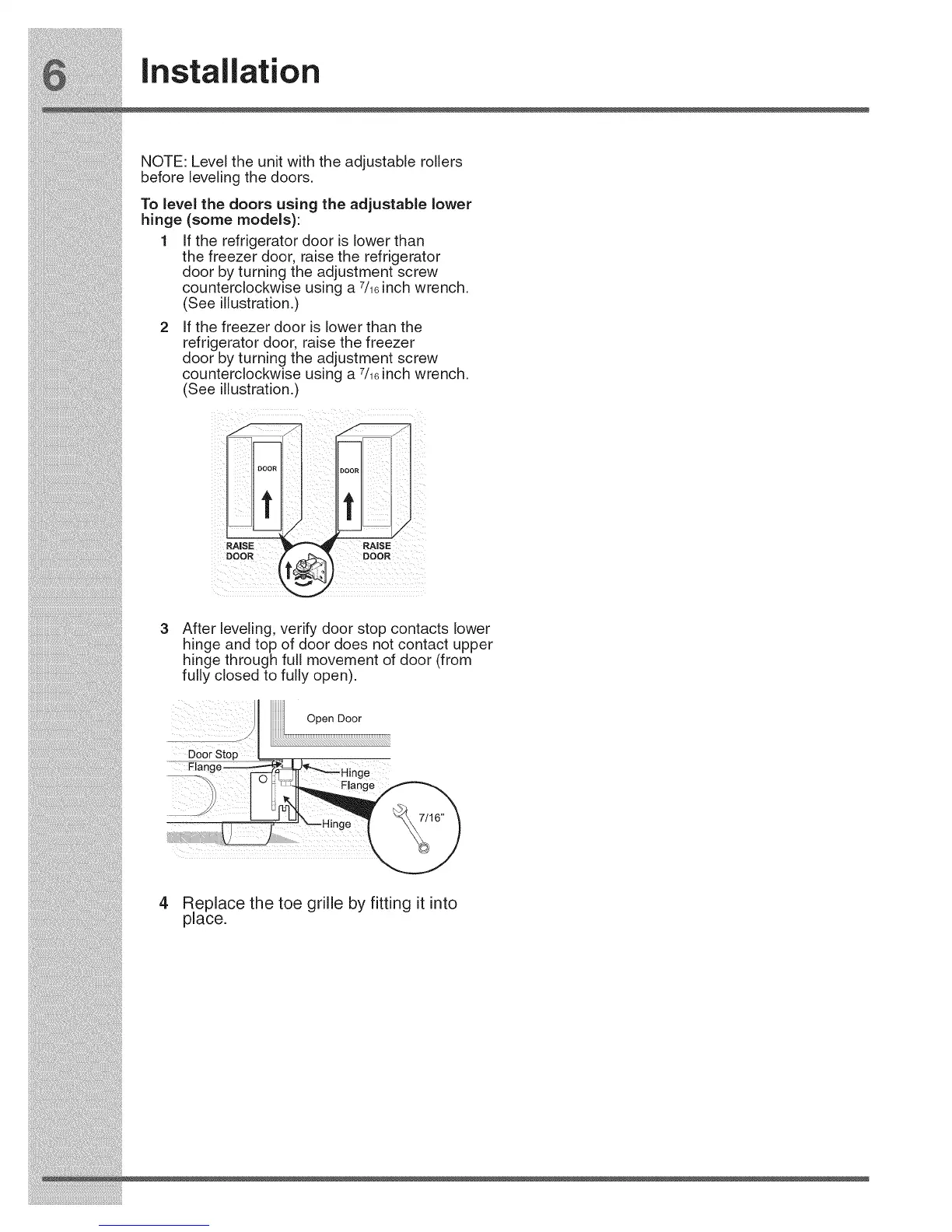

Installation
NOTE: Level the unit with the adjustable rollers
before leveling the doors.
To level the doors using the adjustable lower
hinge (some models):
1 If the refrigerator door is lower than
the freezer door, raise the refrigerator
door by turning the adjustment screw
counterclockwise using a 7/16inch wrench.
(See illustration.)
2 If the freezer door is lower than the
refrigerator door, raise the freezer
door by turning the adjustment screw
counterclockwise using a 7/16inch wrench.
(See illustration.)
RAISE
DOOR
3
After leveling, verify door stop contacts lower
hinge and top of door does not contact upper
hinge through full movement of door (from
fully closed to fully open).
ooostop!
ii
Open Door
4 Replace the toe grille by fitting it into
place.
