Guide to diagnostics of EWX11831 electronic controls
2013 TS/DT-mdm FCPD-dp 31/71 599 77 00-82 Rev. 01
Run the diagnostic
cycle and set
phase 8.
Is the motor running
and the drum not
moving?
Drain the water from
the tub and check
the internal pressure
chamber and the
pressure switch
tube.
Is the system
unobstructed?
–(see fig.2 )-
Clean the internal
pressure chamber
and/or the pressure
switch tube
(disconnect the tube
and blow into it to
make sure the
system is
unobstructed).
–(see fig. 8)-
Repeat the
diagnostic cycle to
check for any further
alarms.
Replace/reposition
the belt and repeat
the diagnostic cycle
to check for any
further alarms.
Replace the
analogue pressure
switch and repeat
the diagnostic cycle
to check for any
further alarms.

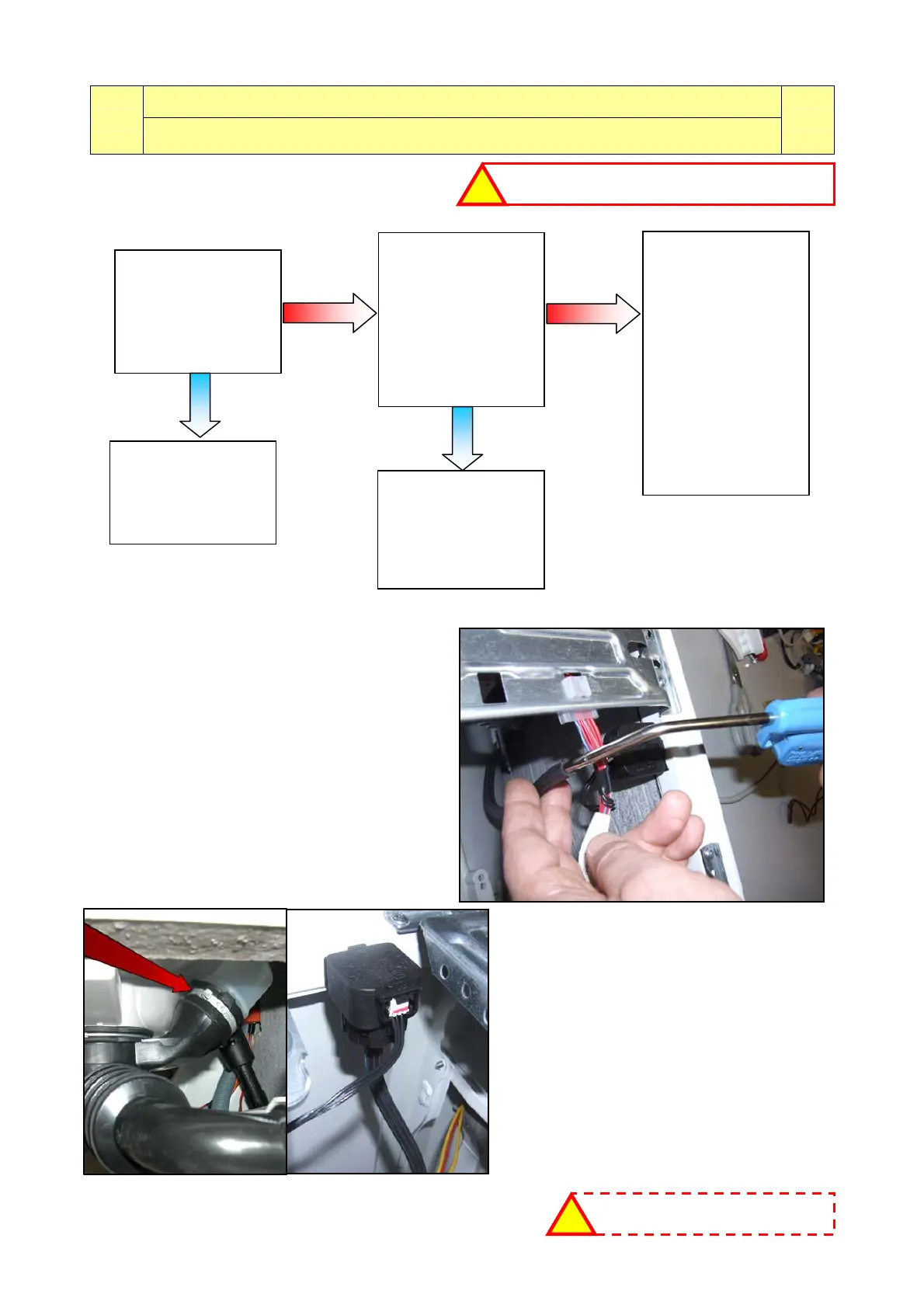

E38
E38: Internal pressure chamber is clogged
E38
The analogue pressure switch is not able to measure any variation in the water level for at
least 30 secs during drum rotation.
Checks to perform:
NO
NO
Fig.
2
Fig.
8
Check that all the connectors are correctly inserted
!
If there are burns on the circuit board,
see
p
a
g
e 69
!
Y
E
S
Y
E
S
