Electrolux MCC4060E - Oven Schematic - OFF Condition (Door Open); Oven Schematic - Microwave Cooking

SOI 12.06 FV 40/43 599 37 42-75
SCHEMATICS

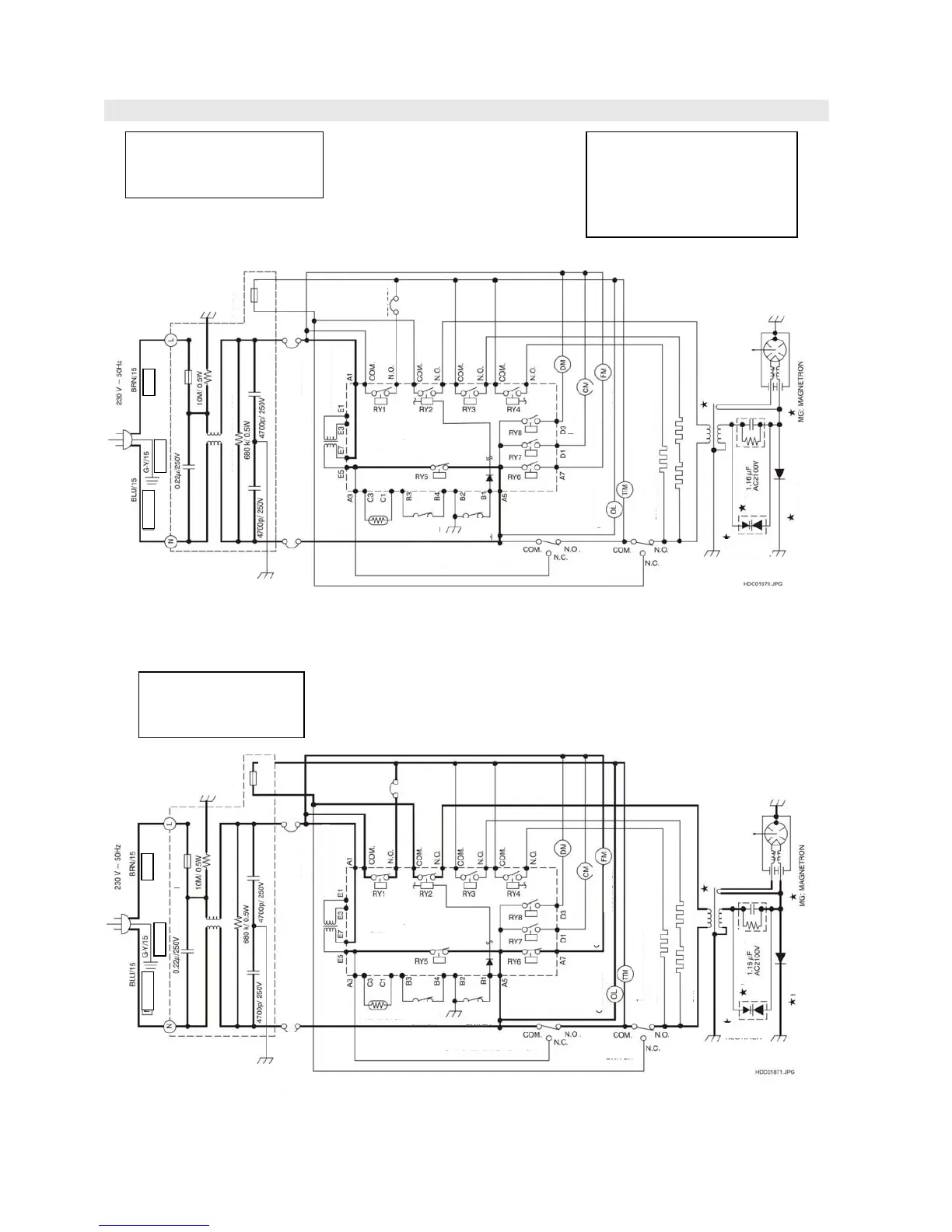

Figure O-1(c) Oven Schematic-OFF Condition after the door oven is closed.
Figure O-2 Oven Schematic-Microwave cooking Condition.
SCHEMATIC
NOTE:CONDITION OF OVEN
1. DOOR CLOSED
2. “ . 0” APPEARS ON DISPLAY.
Note:
AC CORD CONNECTION
BRN: BROWN
BLU: BLUE
G-Y: GREEN AND YELLOW STRIPE
/15: SECTION AREA OF 1.5mm
2
MIN.
“” Indicates components with potential
above 250V.
SCHEMATIC
NOTE:CONDITION OF OVEN
1. DOOR CLOSED
2. COOKING TIME ENTERED.
3. START KEY TOUCHED.
TC2 : GRILL THERMAL
CU
T-
O
FF
SW1 : MONITORED LATCH SWITCH
TC1 : MAG THERMAL
CUT
-
OFF
NOISE SUPRESSION COIL
EARTH
THERMISTOR
SW4:
DAMPER
SWITCH
SW2:
STOP
SWITCH
CONTROL
UNIT
T/C TRANSFORMER
NOISE FILTER
F2:FUSE
F8A
TC3: CONV. THERMO
CUT
-
OUT
LIVE
NEUTRAL
DAMPER MOTOR
CONVECTION MOTOR
FAN MOTOR
TURNTABLE MOTOR
CH: CONVECTION HEATING ELEMENT
GH: GRILL HEATING ELEMENTS
C: CAPACITOR
H.V. RECTIFIER
OVEN LAMP
SW3: MONITOR
SWITCH
ASYMMETRIC
RECTIFIER
T: HIGH VOLTAGE
TRANSFORMER
F1: FUSE 20A
TC2 : GRILL THERMAL
CUT
-
OFF
SW1 : MONITORED LATCH SWITCH
TC1 : MAG THERMAL
CU
T-
O
FF
NOISE SUPRESSION COIL
EARTH
THERMISTOR
SW4:
DAMPER
SWITCH
SW2:
STOP
SWITCH
CONTROL
UNIT
T/C TRANSFORMER
NOISE FILTER
F2:FUSE
F8A
TC3: CONV. THERMO
CUT
-
OUT
LIVE
NEUTRAL
DAMPER MOTOR
CONVECTION MOTOR
FAN MOTOR
TURNTABLE MOTOR
CH: CONVECTION HEATING ELEMENT
GH: GRILL HEATING ELEMENTS
C: CAPACITOR
H.V. RECTIFIER
OVEN LAMP
SW3: MONITOR
SWITCH
ASYMMETRIC
RECTIFIER
T: HIGH VOLTAGE TRAN
S
F
O
RMER
F1: FUSE 20A
