Electrolux T4530 - Quick Diagram

16
Program
Group 1 - Reading total counters 1 01 - 1 05
See Selecta Control manual supplied the dryer
Group 5 - Setting control of temp. etc. 5 01 - 5 16
Group 4 - Setting dryer 4 01 - 4 10
Group 6 - Setting maximum values 6 01 - 6 05
Group 7 - Setting programs 7 01 - 7 72
Group 8 - Resetting counters 8 01 - 8 02
Group 9 - Various tests 9 01 - 9 14
Group A - Setting user display info A 01 - A 06
You are now in Area B
Group 3 -Log 3 01 - 3 11
Group 2 - Code to area B
Subgroups
Main groups
Group 0 - Temperature / drying time 0 01 - 0 08
See Selecta Control manual supplied the dryer

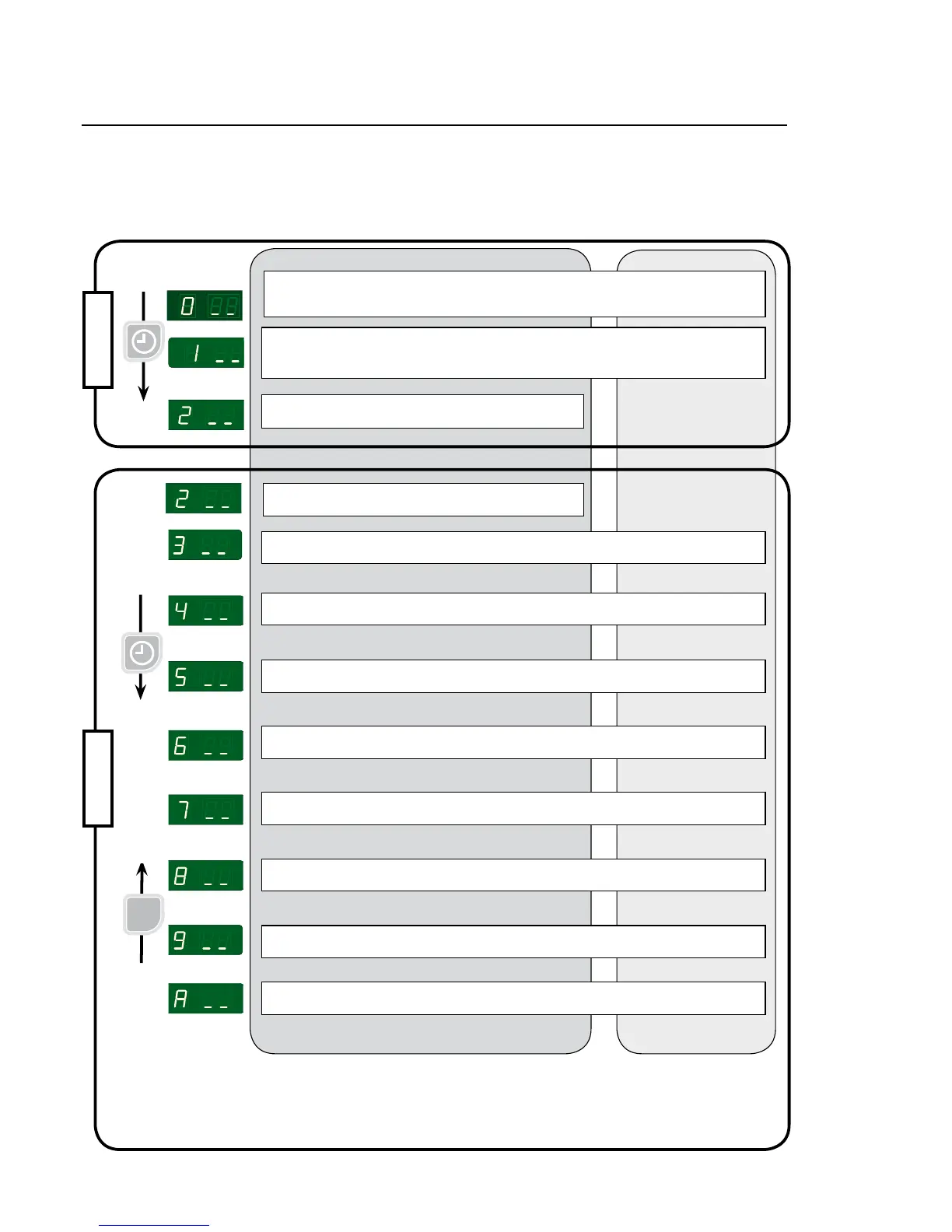

Quick-diagram
Up
Down
See “Changing factory setting” on the following page
Area AArea B
P
