Electrolux TK14014 - Detaching the Worktop

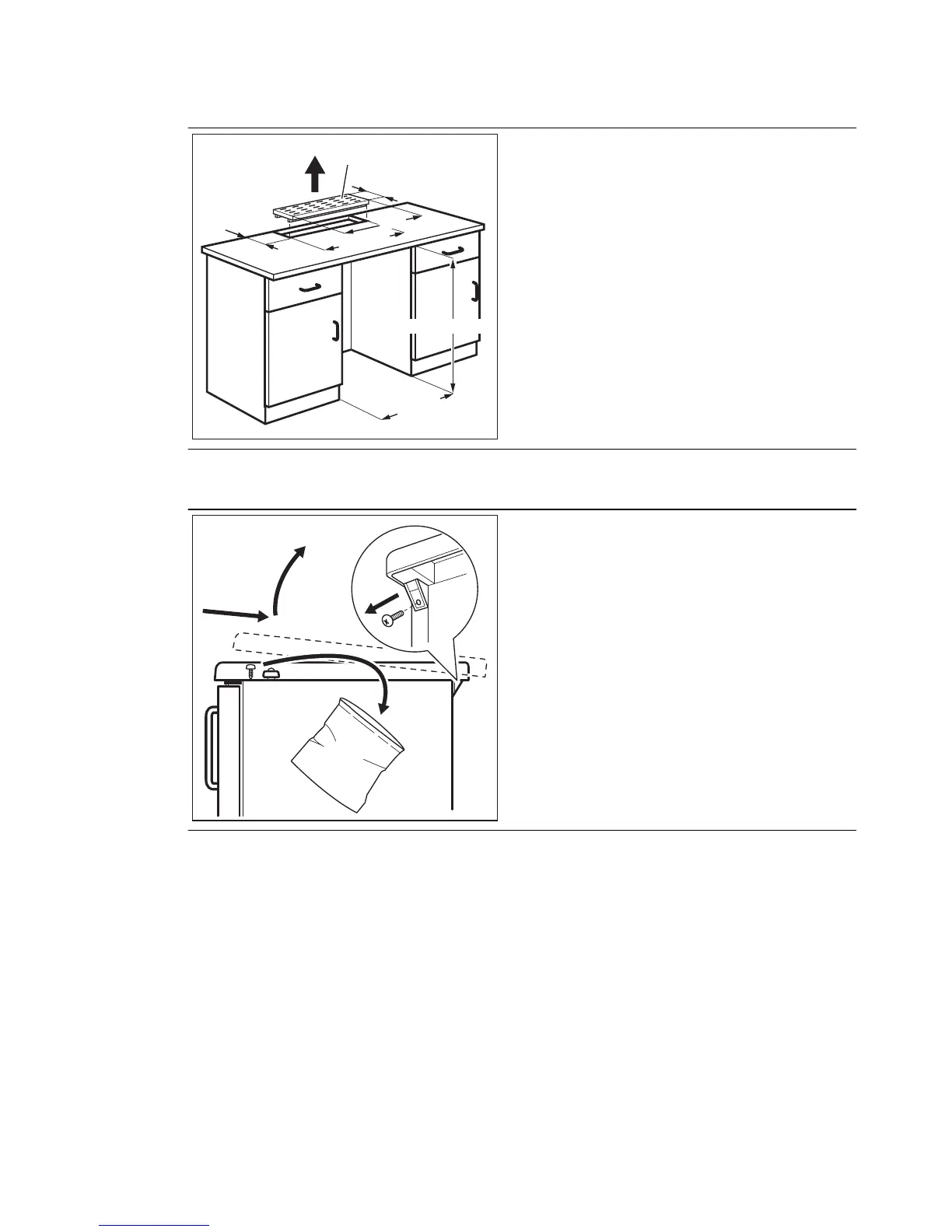

INSTALLING UNDER A CONTINUOUS WORKTOP
500/550/600 mm
93-103 mm
105 mm
A
200 cm
2
570 mm
min. 820 mm
550 mm
If your refrigerator is installed under a con-
tinuous worktop, an air outlet opening of at
least 200cm
2
and a ventilation grille match-
ing the worktop design should be installed
at the rear of the worktop.
The cut surfaces of the worktop should be
varnished to avoid swelling due to penetra-
tion of moisture.
The appliance wall distance must be at
least 30 mm and should be checked before
the ventilation grille is inserted.
DETACHING THE WORKTOP
2
3
1
To remove the worktop, please proceed as
follows:
• Unscrew left and right screws at the
back.
• Lift the worktop slightly at the front, push
back about 20 mm and lift off from the
front.
• Unscrew left and right screws at the
front.
• Store the screws in a safe place together
with the worktop.
