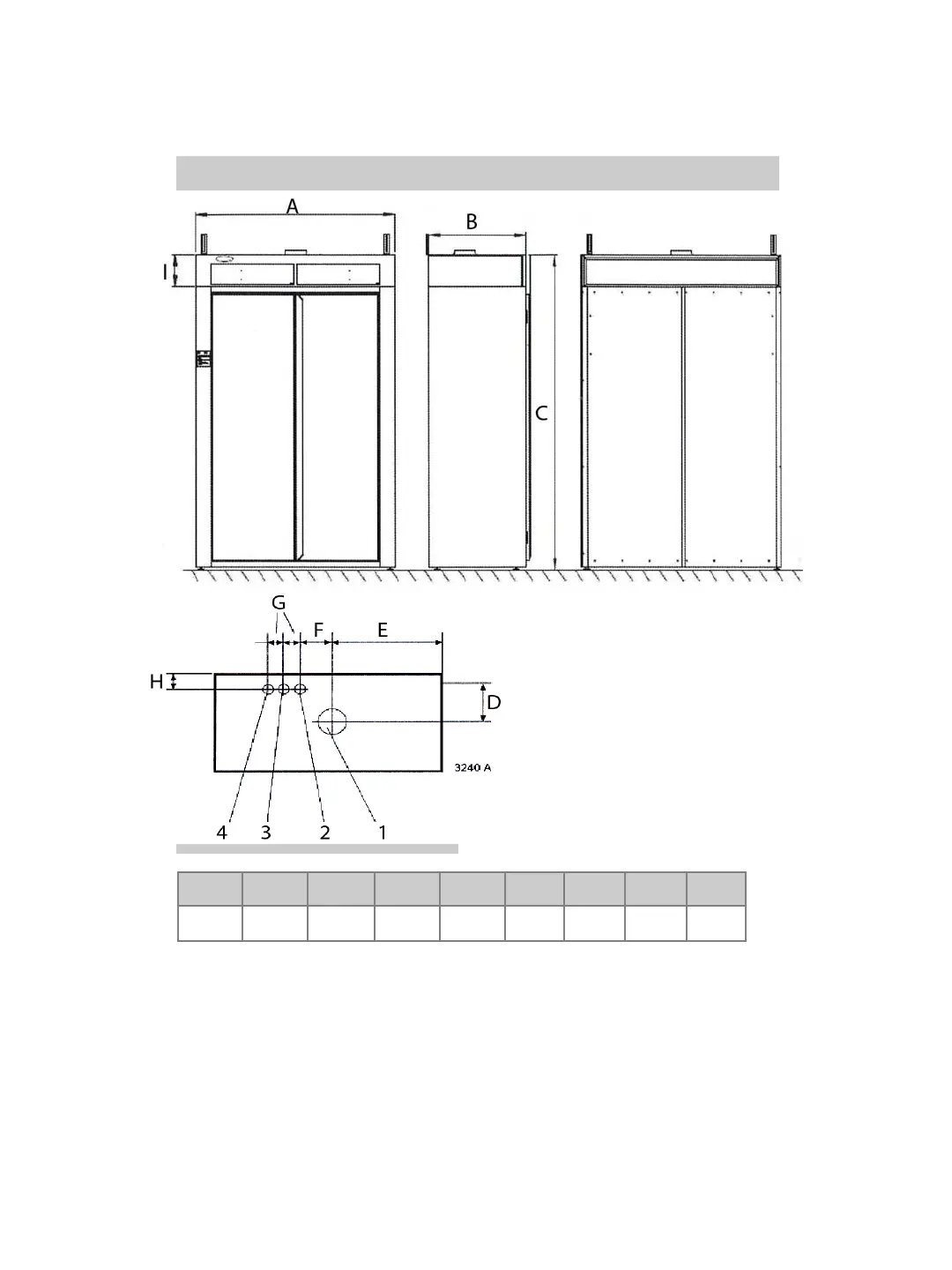

DIMENSIONS
A B C D E F G H I
1195 580 1815 215 595 165 50 60 185
Key to dimensions
1. Exhaust Duct Spigot : 125mm diameter
2. Mains Cable Entry
3. Cable Entry for External Fan (if required)
4. Cable Entry for External payment system (if required)
Page 10
Installation and Operating Manual
Notes:
Minimum clearance required for access with
the cabinet removed from pallet:
Width: 610mm Height: 1850mm
Maximum levelling adjustment: Plus 25mm
Minimum clearance required in front of the
cabinet with the hanging rail fully extended:
820mm
Doors open to 180 degees and extend 430mm
from the end panels.
