The upper section of the cabinet can be removed to reduce the overall
height by 207mm.
INSTALLATION WHERE ACCESS SPACE IS LIMITED
Installation and Operating Manual Page 5

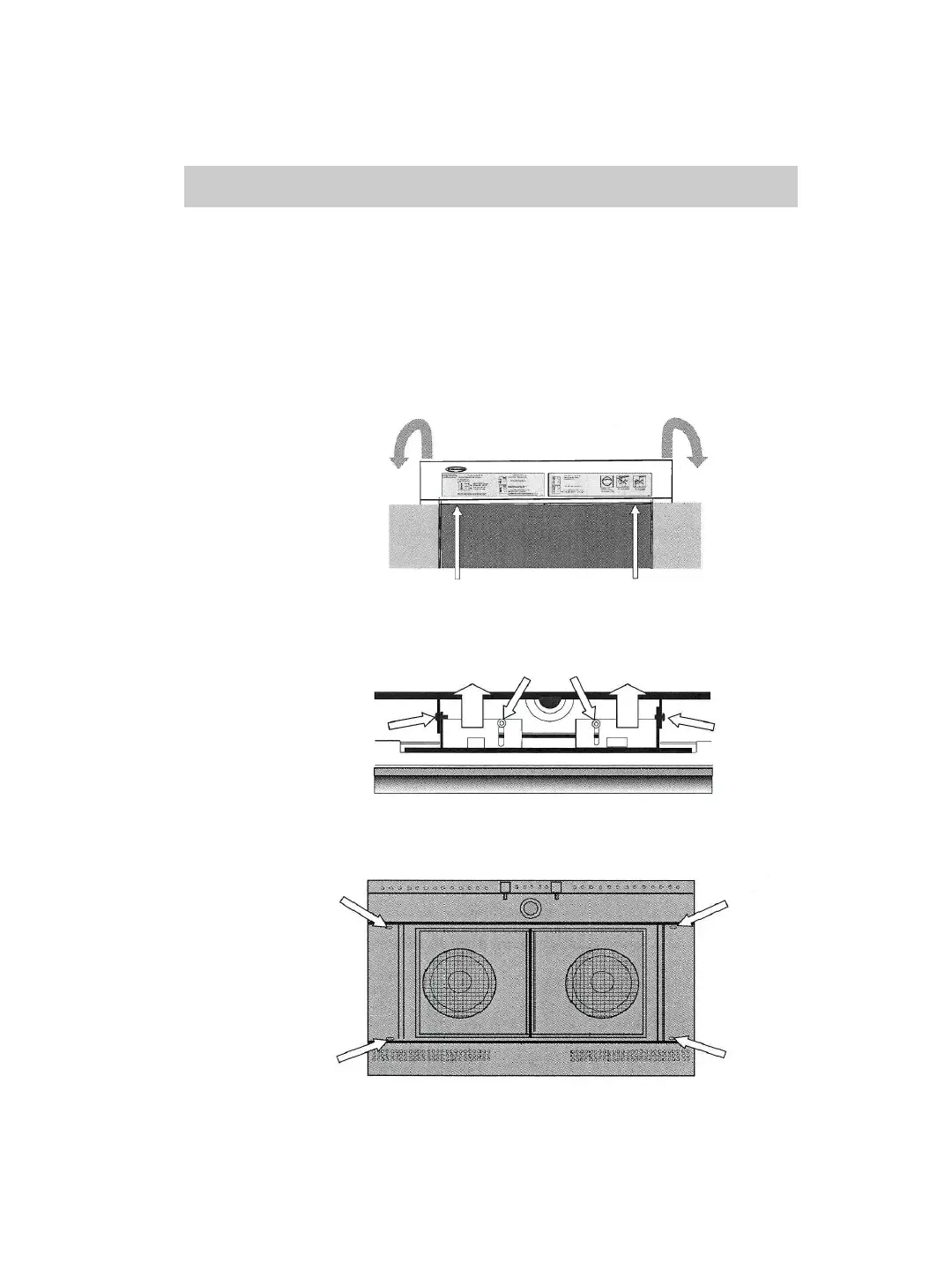

1. Remove two T20 screws from the under edge of the fascia panel
located through the square holes, then slide the panel upwards.
2. Loosen the four T20 screws securing the door switch bracket and
slide it backwards. Tighten one of the screws to secure in this
position .
3. Remove the four T30 screws from the underside of the control
module. With assistance, lift the cartridge clear from the cabinet.
