Service
Manual
23
23. Programme unit
20
438 9145-41/03
03.11

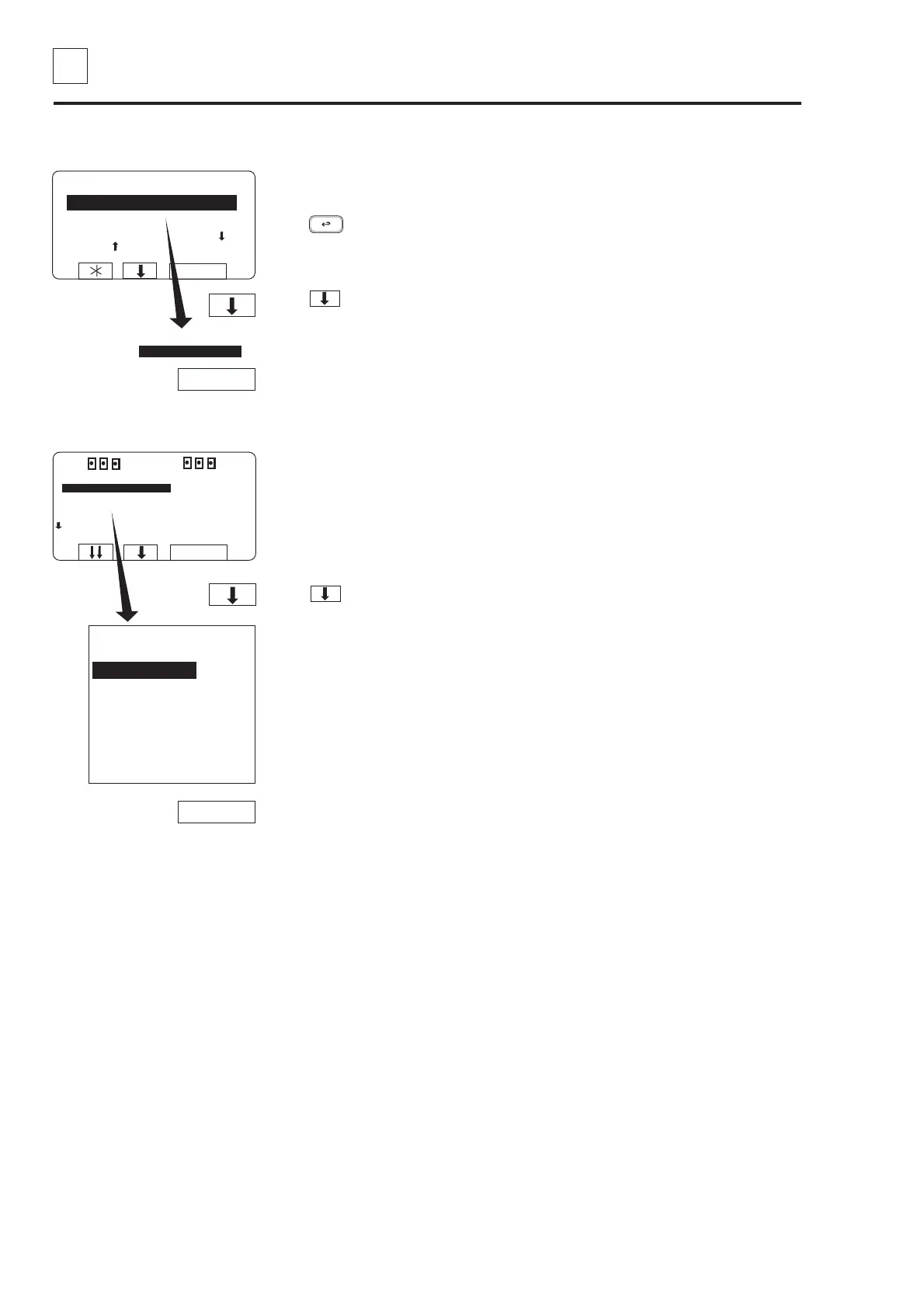

To select the ”SETTINGS 1” function
SELECT
SELECT
RUN A WASH PROGRAM
GO TO THE MENU
If this menu is not currently
displayed:
Press
repeatedly.
Press to highlight
”GO TO THE MENU”.
Press SELECT.
Press twice...
... to highlight ”SETTINGS 1”.
Press SELECT.
MENU
MAKE A CHOICE:
WASH PROGRAM LIBRARY
PROGRAMMING MODE
SETTINGS 1
MEMORY CARD
SERVICE MODE
STATISTICS
WASH PROGRAM LIBRARY
PROGRAMMING MODE
SETTINGS 1
MEMORY CARD
SERVICE MODE
STATISTICS
MANUAL MODE
SETTINGS 2
EXIT
SELECT
SELECT
RUN A WASH PROGRAM
GO TO THE MENU
MAKE YOUR CHOICE WITH
OR AND PRESS SELECT
WEIGHT, KG 000,0
105
107
Table of Contents
Table of Contents
3
Service Manual
1
Safety Precautions
7
Technical Data
11
Technical Data
12
Machine Presentation/Programmes
13
Machine Presentation
13
Programmes
13
Description
15
General
15
Function
16
General
16
Programme Unit
17
Motor and Motor Control
18
Door Lock
19
Heating
20
Rear Control Unit
20
Water Connections
20
Detergent Compartment
21
Drain Valve
21
Frame and Dampers
21
Regular Maintenance
23
Every Third Month
25
Troubleshooting
27
General Information about Troubleshooting
29
Precautions
29
Measurements
29
Errors with no Error Codes
30
Errors with Error Codes
30
Error Codes
30
Error Indication
30
Resetting an Error Indication
30
Control Unit
31
Service Programme
34
Opening the Service Programme
34
To Control the Machine Functions
36
I/O Card Inputs
37
Programme Unit
37
To End the Service Programme
37
Errors with no Error Codes
38
No Indication in the Display Window
38
Errors with Error Codes
39
No Water
39
Door Open
41
Door Unlocked
43
Ntc Low Temp
44
Ntc High Temp
45
Water in Drum
46
Machine Overfilled
47
No Heating
48
Not Drained
49
Unbalance Sensor Fault
50
No Motor Comm
51
Level Calibration
52
Weight from Scale
53
Emergency Stop
54
Door Lock
55
Start Not Allowed
56
Mis Communication
57
Interlock Status
58
Io Communication
59
Low Oil Level
60
Phase
61
Aut. Level Calib
62
Level Not Calibrated
63
No Scale Connected
64
Heat Sink too Hot
65
Motor too Hot
66
No Interlock
68
Motor Shortning
69
Interlock Hardware
70
Low DC Voltage
71
High DC Voltage
72
Rippel on DC Bus
73
Line Interrupt
74
Klixon Circuit
75
Troubleshooting the Keypad in the Display Unit
76
Door and Door Lock
82
Table of Contents
87
Input and Outputs on I/O Cards 1 and 2
95
The Service Program
100
To Select the "Service Program" Function
101
To Control the Machine Functions
103
I/O Card Inputs
104
Settings 1
105
To Select the "Settings 1" Function
106
Password
107
Variables under "Settings 1
109
Settings 2
130
To Select the "Settings 2" Function
131
Variables in Settings 2
132
Table of Contents
169
Description
171
W3105H up to Machine No. -595/9040
171
W3130H up to Machine No. -650/14354
171
W3180H up to Machine No. -725/7908
171
W3240H up to Machine No. -795/3769
171
General
171
Function
172
The Door Lock Locks the Door
172
The Door Lock Unlocks the Door
173
Error Codes
174
Reset Button
175
Repairs
178
Emergency Opening of Door Lock
178
Replacing the Door Lock
179
Description
180
W3105H from Machine No. 595/9041
180
W3130H from Machine No. 650/14355
180
W3180H from Machine No. 725/7909
180
W3240H from Machine No. 795/3770
180
W3300H
180
General
180
Function
181
The Door Lock Locks the Door
181
The Door Lock Unlocks the Door
182
Error Codes
183
Reset Button
183
Repairs
187
Emergency Opening of Door Lock
187
Replacing the Door Lock
188
Table of Contents
189
Warnings
191
Description
192
W3105H.up.to.machine.no
192
W3130H.up.to.machine.no
192
W3180H.up.to.machine.no
192
W3240H.up.to.machine.no
192
Motor
192
Motor.control
193
Function
194
Led.indications
198
Repairs
199
Motor.replacement
199
W365H,.W375H.up.to.machine.no
192
Adjustments
200
Drive.belt.tension
200
Description
201
W3105H.from.machine.no
201
W3130H.from.machine.no
201
W3180H.from.machine.no
201
W3240H.from.machine.no
201
W3300H
201
Motor
201
Motor.control
202
Function
203
Inputs.and.outputs
204
Led.indications
207
Repairs
208
Motor.replacement
208
Adjustments
209
Drive.belt.tension
209
Drain Valve
211
Description
213
Function
213
Repairs
214
Disassembly
214
Drain Valve
214
Assembling
215
Detergent Compartment
217
Description
223
Electric Heating
223
Function
224
Electric Heating
224
Steam Heating
224
Repairs
225
Connections
225
Replacing the Heating Elements
225
Service Manual
225
Water Level Reduction
233
Actual Weight Display
233
Resetting the Weighing Equipment
233
Calibrating the Weighing Equipment
234
Checking Accuracy of Weighing Equipment Display
234
If the Weighing Equipment Has a Fault
234
Fault-Finding, Weighing Equipment
235
