30
30. Motor and motor control
4
438 9145-81/07
06.42
Service
Manual
Description
W365H, W375H
Up to machine No. –520/19486
and 520/19549-22806
W3105H Up to machine No. –595/9040
W3130H Up to machine No. –650/14354
W3180H Up to machine No. –725/7908
W3240H Up to machine No. –795/3769
Motor
The motor is fitted in a bridge carrier under the
outer drum. It drives the washing drum using a
drive belt.
The motor is frequency-controlled and is con
-
trolled by microcomputer control. The vari
-
ous speeds for normal operation, distribution
speeds and extraction as well as acceleration/
retardation can be controlled with a high degree
of precision.
The motor winding is protected against overlo
-
ads using a thermal overheating protector that
is automatically reset.
The motor is connected directly to the motor
control via a cable with quick connectors.

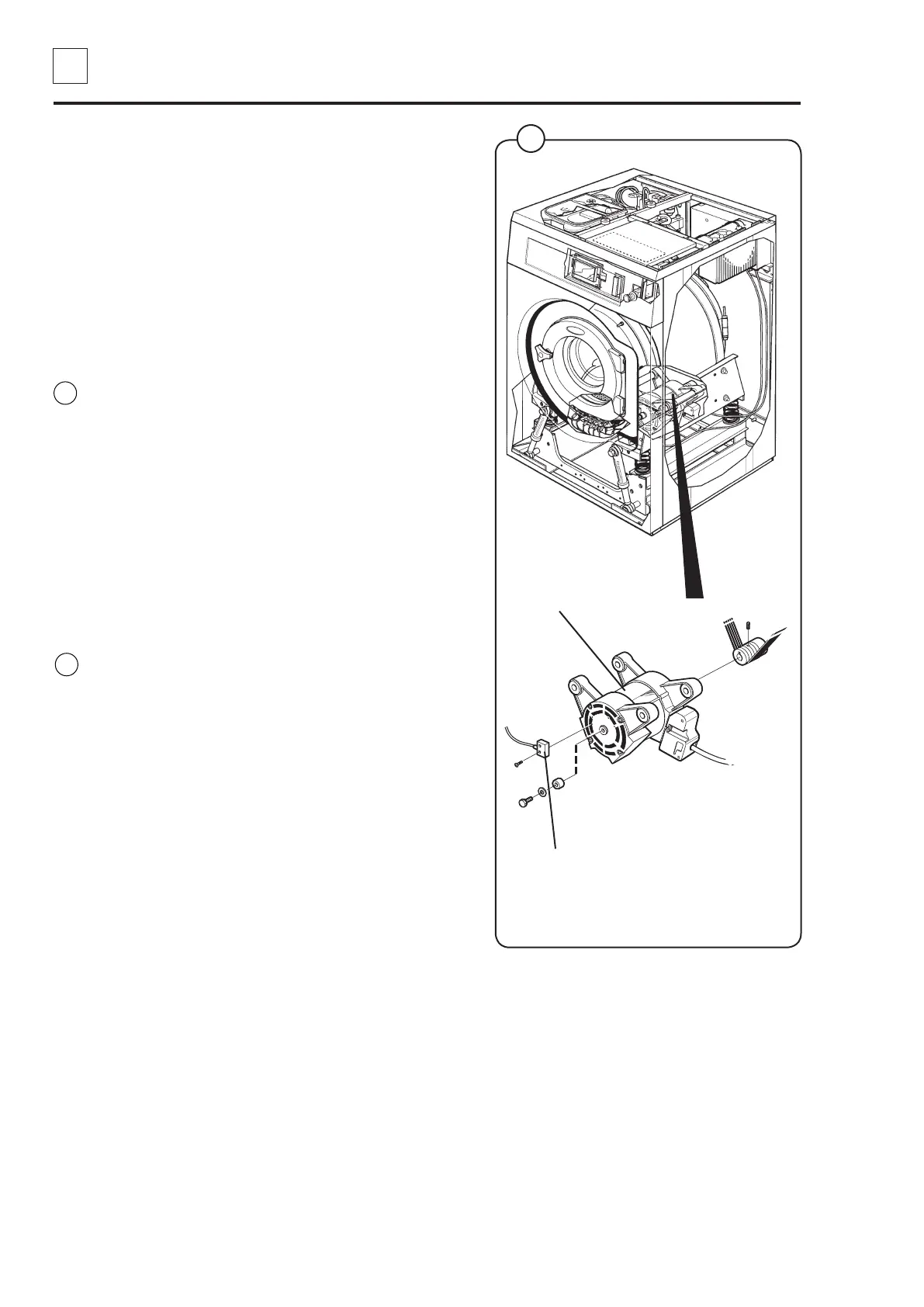

Motor
Rotation sensor B3
5207 5196
Fig.
1
Fig.
1
1
