Electrolux WSF67251S - Detergent Dispenser and Pressure Switch

Page 10

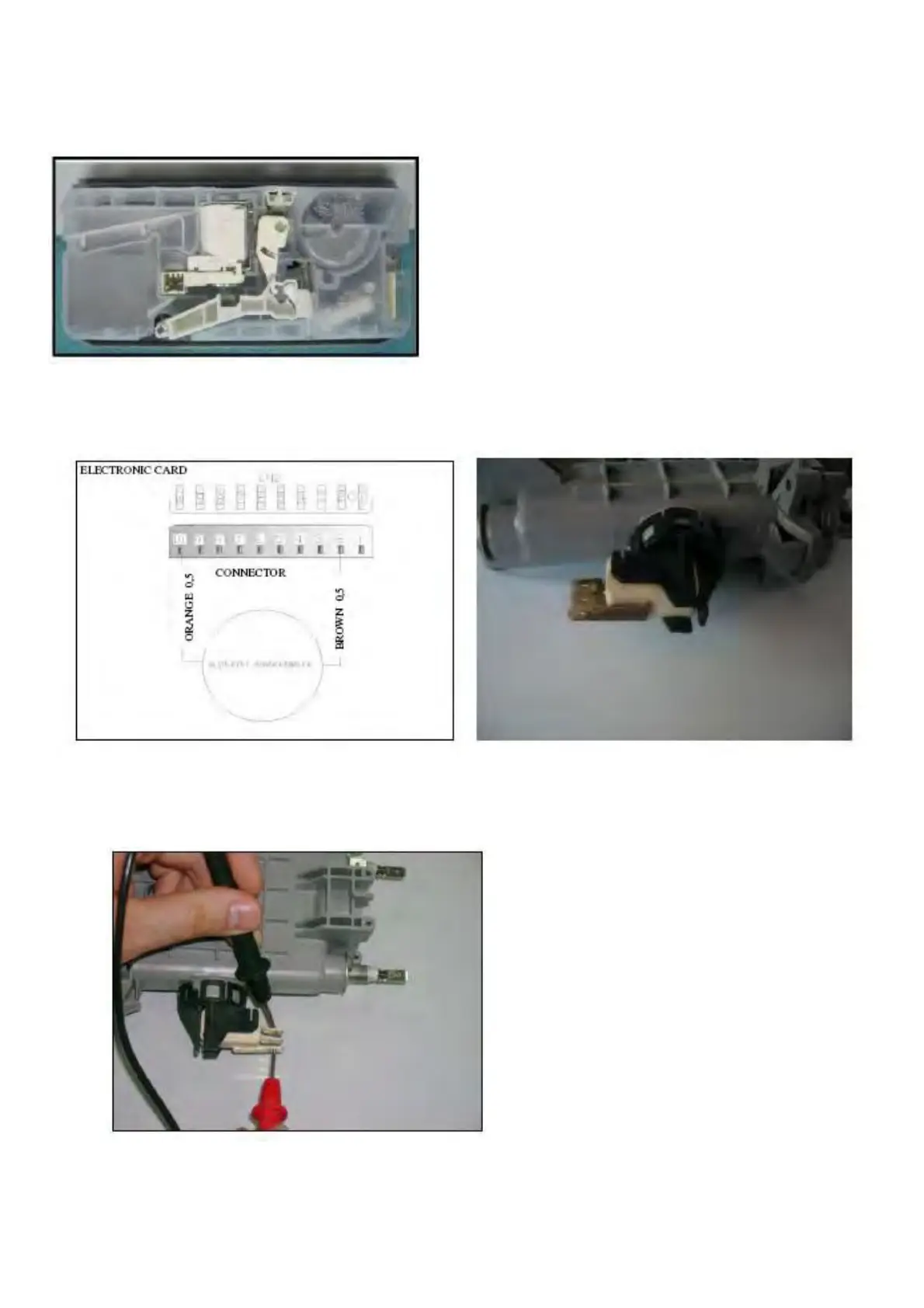

1.4 Detergent Dispenser
Can’t be measured from the Main P.C.B. Connectors:
From the component
1660 ± 10 (25 C º)
1.5 Pressure Switch
From the Main P.C.B. Connector
KN2.10 – KN2.2 0 there is water (Full)  there is not water (Empty)
The above sketch shows the connectors of the pressure switch on the Main P.C.B. Apply the
probes of the tester onto the relative connectors as shown.
From the component
Apply the probes of the tester onto the relative connectors as shown.
