1.6 NTC Sensor
From the Main P.C.B. Connector:
(Relative to water temperature ºC)
KN 7.3-KN 7.4 25°C – 5000 ± 250
35°C – 3300 ± 181.5
55°C – 1520 ± 98.8
63°C – 1174 ± 88.0
80°C – 670 ± 53.5
90°C – 488 ± 41.5

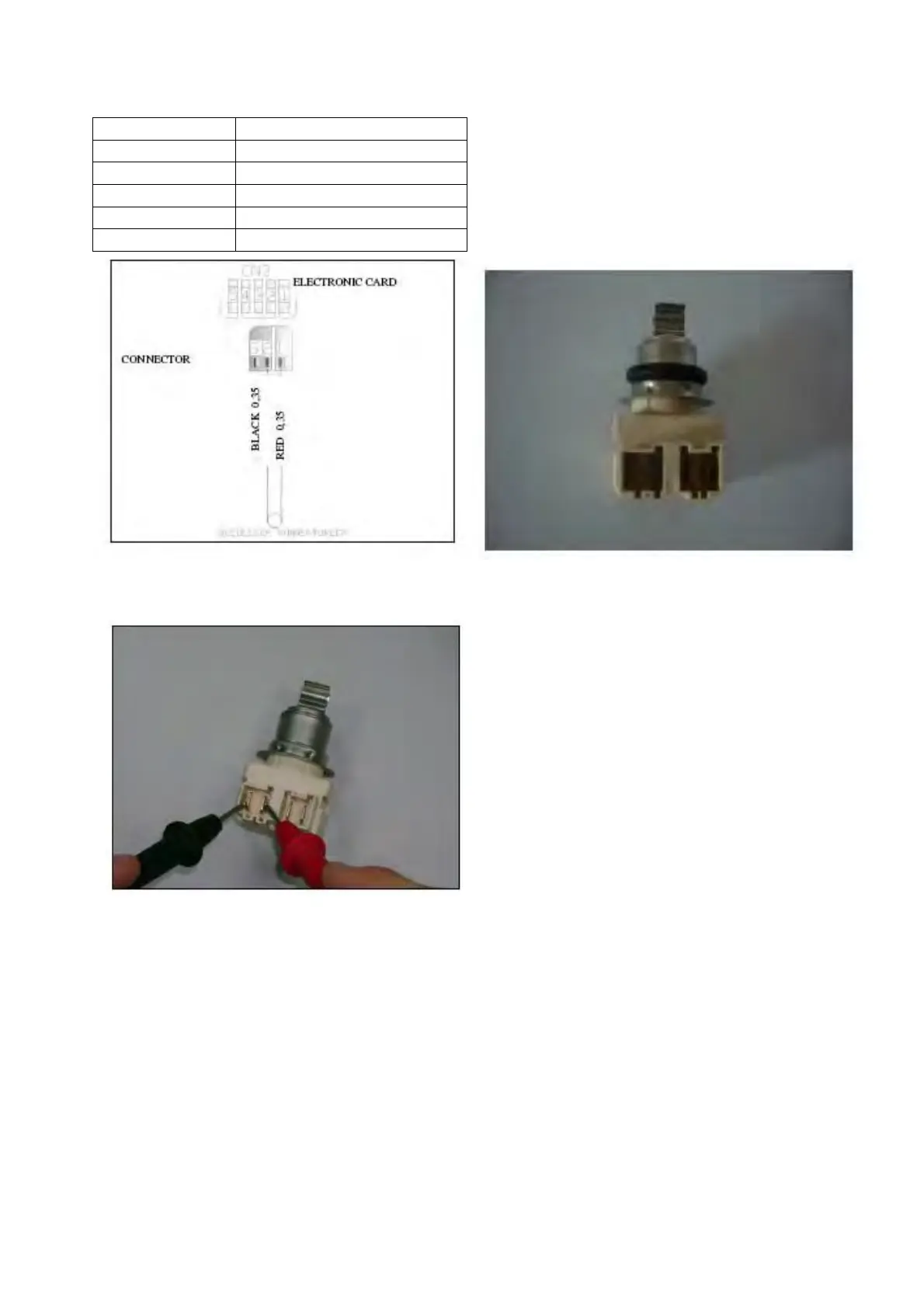

The above sketch shows the connectors of the NTC sensor on the Main P.C.B. Apply the
probes of the tester onto the relative connectors as shown.
From the component
Apply the probes of the tester onto the relative connectors as shown.
