Electrolux WSF67251S - Door Switch Functionality

Page 14
1.9 Door Switch
From the Main P.C.B. Connector:
0 on the connectors KN2.9 – KN2.2 (Door is closed)

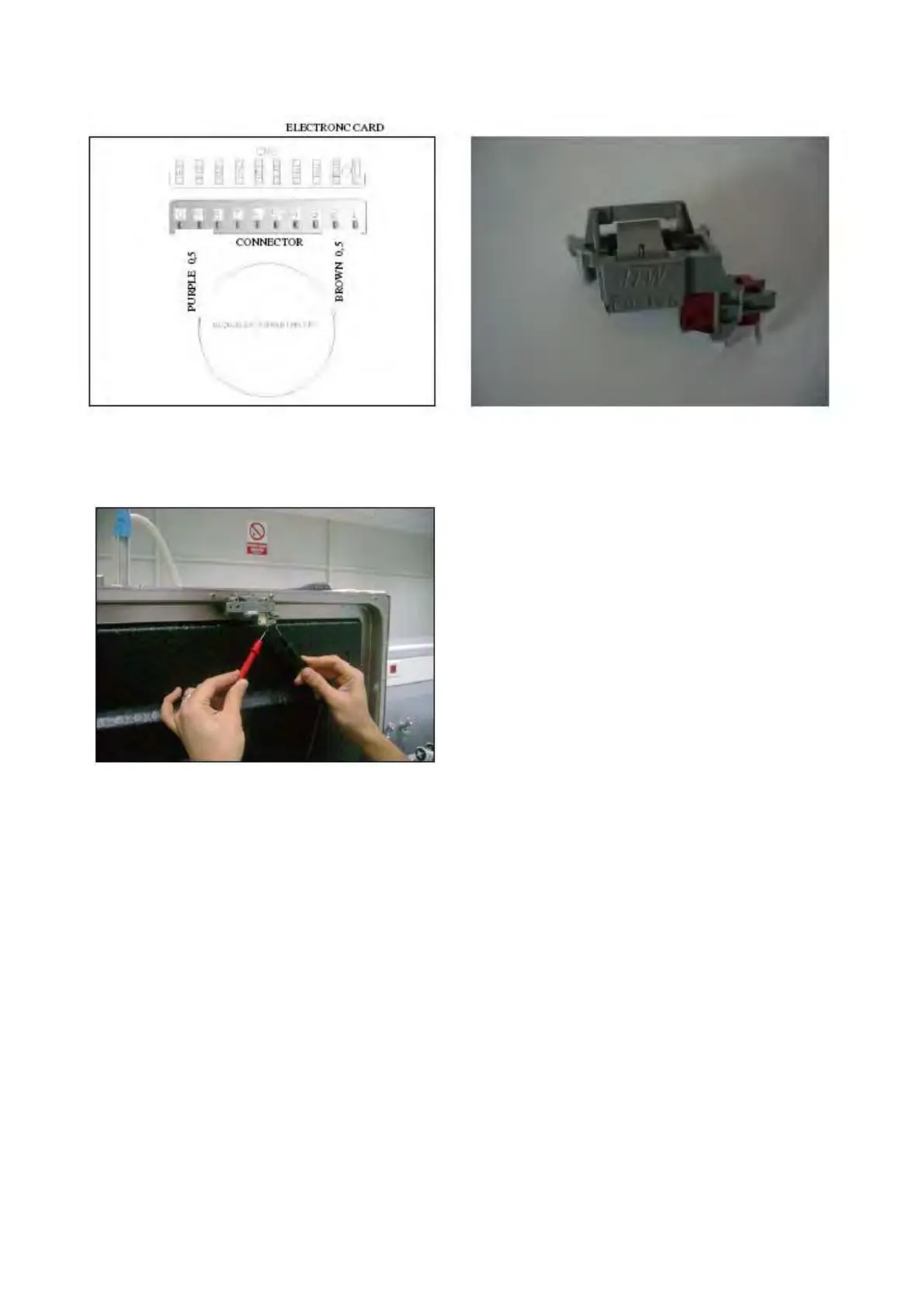

The above sketch shows the connectors of the door switch on the Main P.C.B. Apply the
probes of the tester onto the relative connectors as shown.
From the component
Apply the probes of the tester onto the relative connectors as shown.
