Page 17
2. ELECTRICAL COMPONENT
SPECIFICATIONS

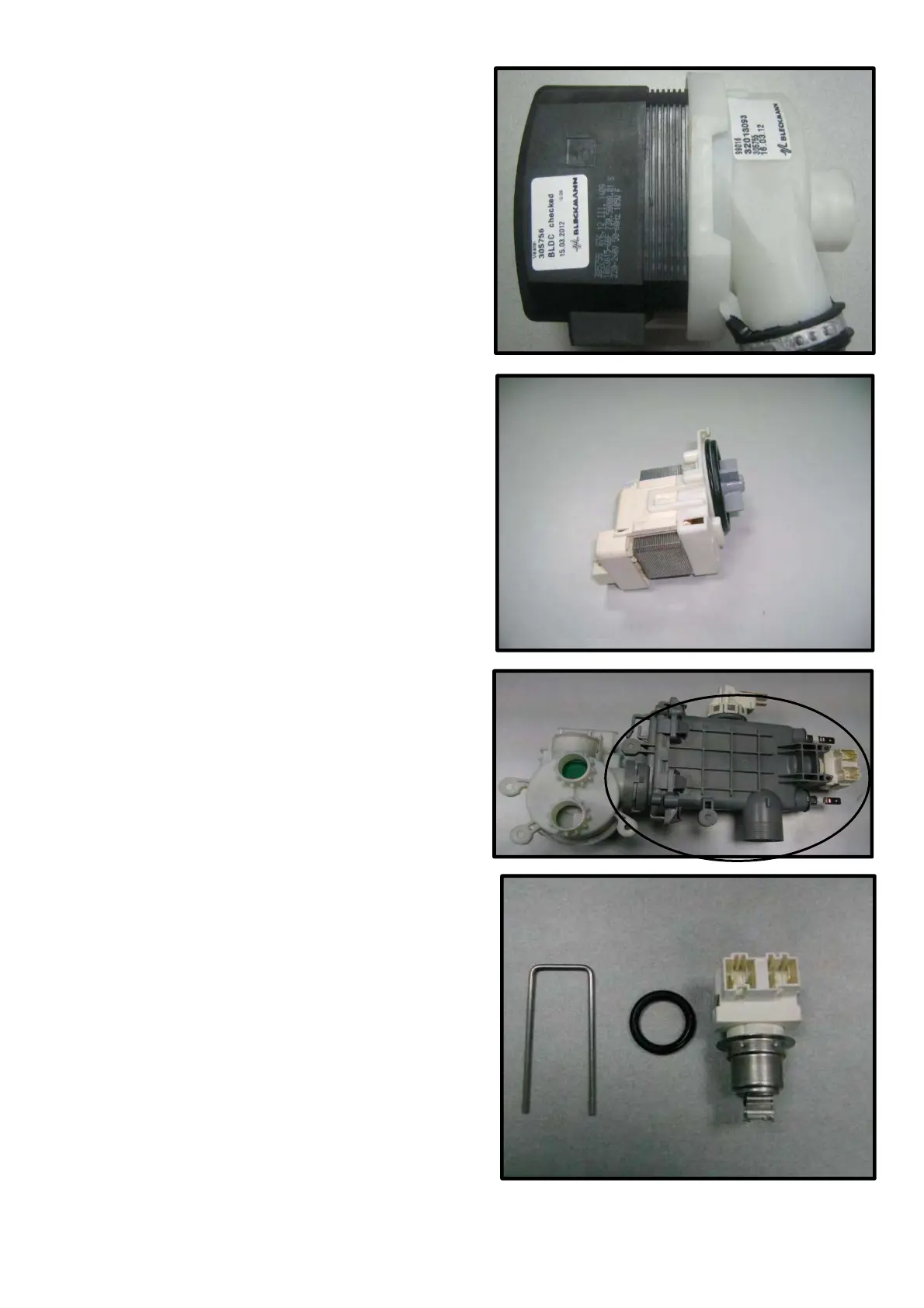

2.1 Circulation Pump
Brushless DC motors
• 0 – 3400 RPM range
• Winding value is immeasurable.
• Thermal protection software controlled.
• Pump output 0 - 80 l / min 0-400 mbar
• Power is from 0 - 60 watts.
Electronic card-controlled variable-speed
motor. Clockwise rotation in the opposite
direction, mounted on rubber hangers to the
base.
2.2 Drain Pump
Voltage : 220/240 Volt
Frequency : 50/60 Hz
Total Power : 30 W
Flowrate : 17 – 21 lt/min
Coil Resistance : 143 ±10
Coil Isolation Class : F
Thermal Protection : 120°C
2.3 Heater Casing Group
2.3.1 Heater
Voltage : 220/240V
Total Power : 2000 W
Resistance : 23.95 ±15
Used for heating the wash water.
The heater is not active in the drying process.
The inlet is mounted and placed on the
leading edge of the wash pump.
2.3.2 NTC
Thermal Protection: 83±3°C
Relative Temperatures:
25°C - 5000 ±250
35°C - 3300 ±181.5
55°C - 1520 ±98.8
63°C - 1174 ±88
80°C - 670 ±53.5
90°C - 488 ±41.5
