Page 19

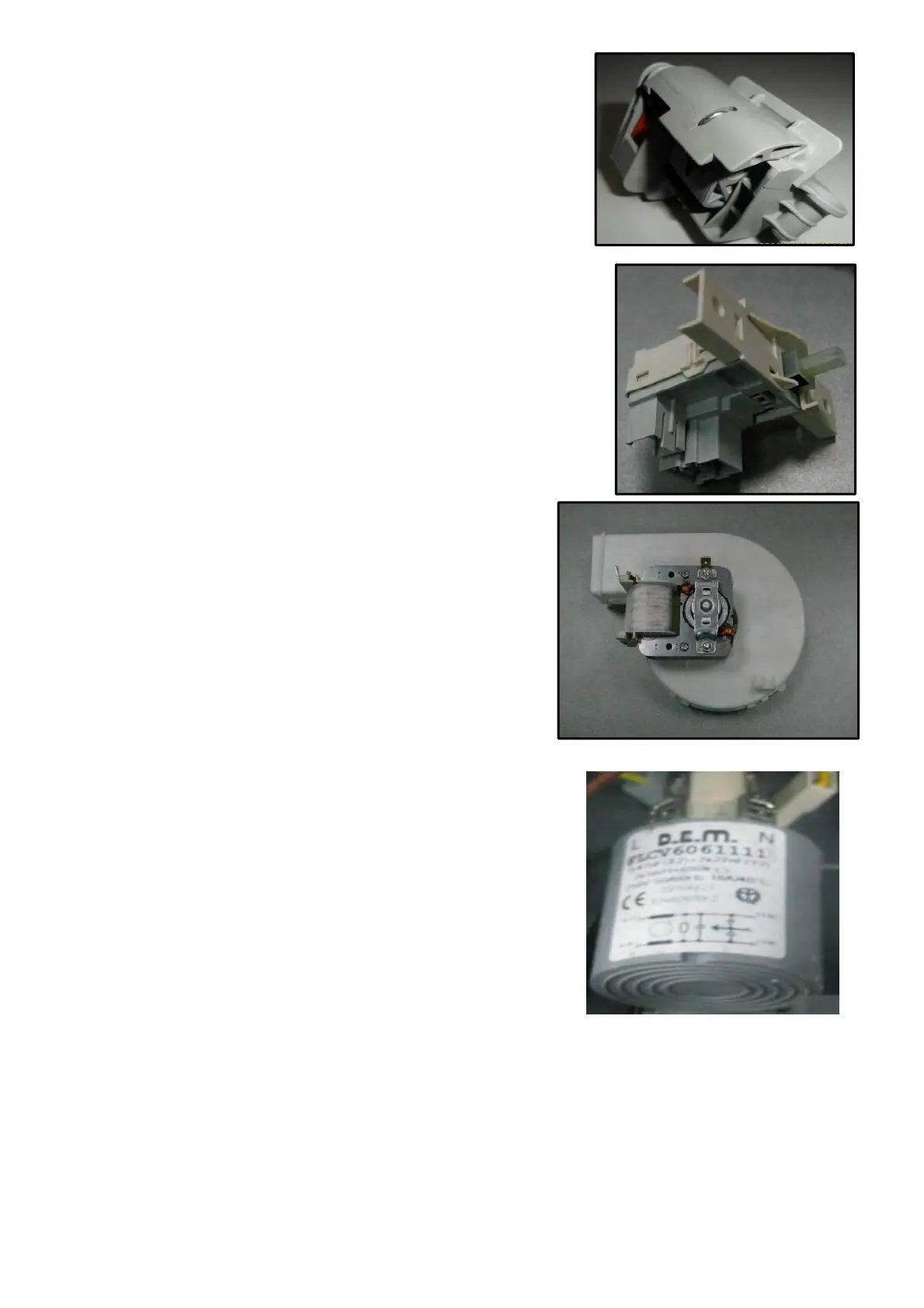

2.6 Door Lock
Is a mechanical lock/release system that holds the door
closed. It supplies connection of electrical parts in the
machine and cutting off the connection when door opens.
Current : 16 (4) A
2.7
ON/OFF Button
Assembled in the control panel unit ON/OFF (two pole)
Voltage
: 250V
Current : 50mA
2.8 Fan Motor (where fitted)
Total Power : 15 W
Voltage : 220/240 V
Frequency : 50/60 Hz
Resistance
: 238.6 ± 12
Coil solation Class: H
There is a thermal protector. Shaded pole motor 2
pole temperature is between: -40ºC – 150ºC
2.9 EMC Filter
Voltage : 220/240V
Frequency
: 50/60 Hz
0.1 µf (X1) + 2x0.027 µf (Y2) + 1M
To prevent electrical interference from the main supply.
Assembled to basement.
