Page 33
5.6Spray Arms

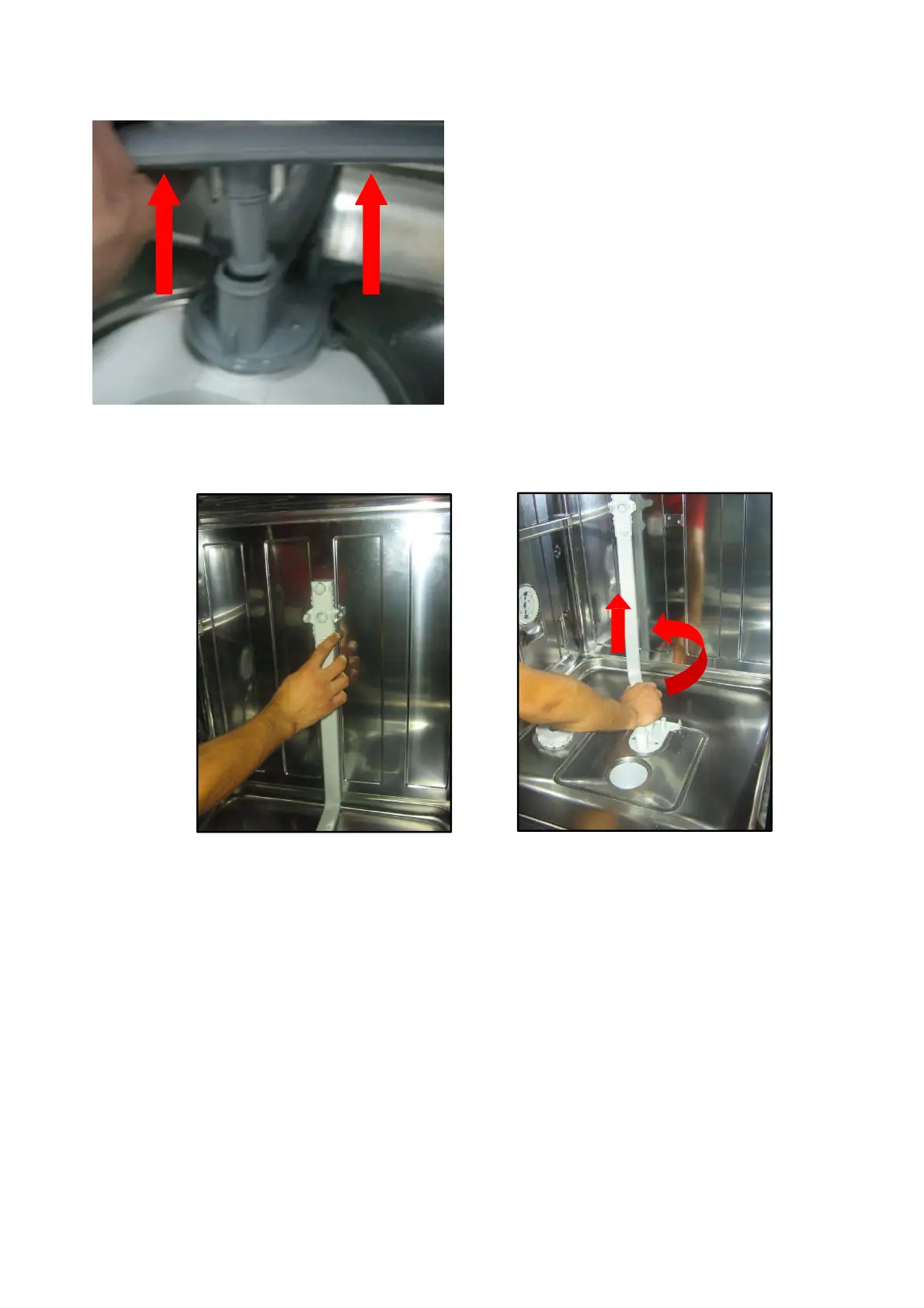

a) After removing the lower basket, gripping the lower spray arm centrally pull the spray
arm firmly upwards.
b) To remove upper spray arm feed pipe, part the bracket at the rear of the tub to release
the feed pipe upper spray arm.
c) To remove upper spray arm feed pipe, turn to the left it than pull it up as shown in the
picture.
