5.7 Sump

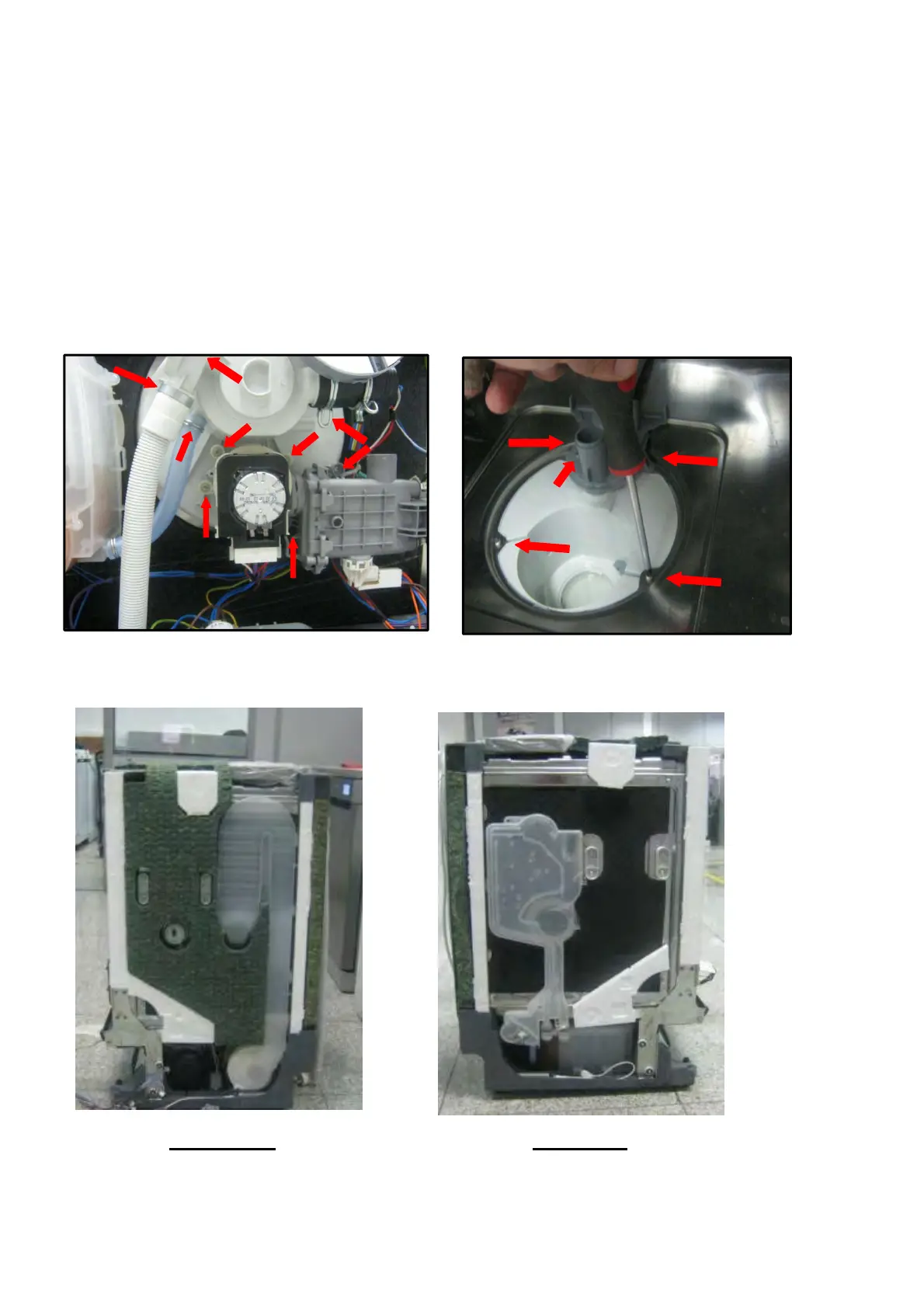

a) Remove any residual water from the sump with a sponge so that it does not flow into the
tub and the pressure switch tubes.
b) From inside tub remove the basket and lower spray arm
c) Remove the micro filter group and metal filter
d) Then lay the appliance on the rear panel
e) Remove lover cover
f) Detach all the hoses (sump-draining hose, circulation pump–sump, sump–water
softener).
g) Remove the two screws that secure the spray arm support to the sump
h) Remove the four screws that secure the sump to the tub
i) Detach the drain pump.
j)
Pull the sump out taking care not to damage the sump seal.
5.8
Access Components from Sides
a) Remove the side panel to reach components that you need to access
RIGHT SIDE LEFT SIDE
