Electrolux WTB3100 - Preparation; Attaching Top Hinge Bracket

9

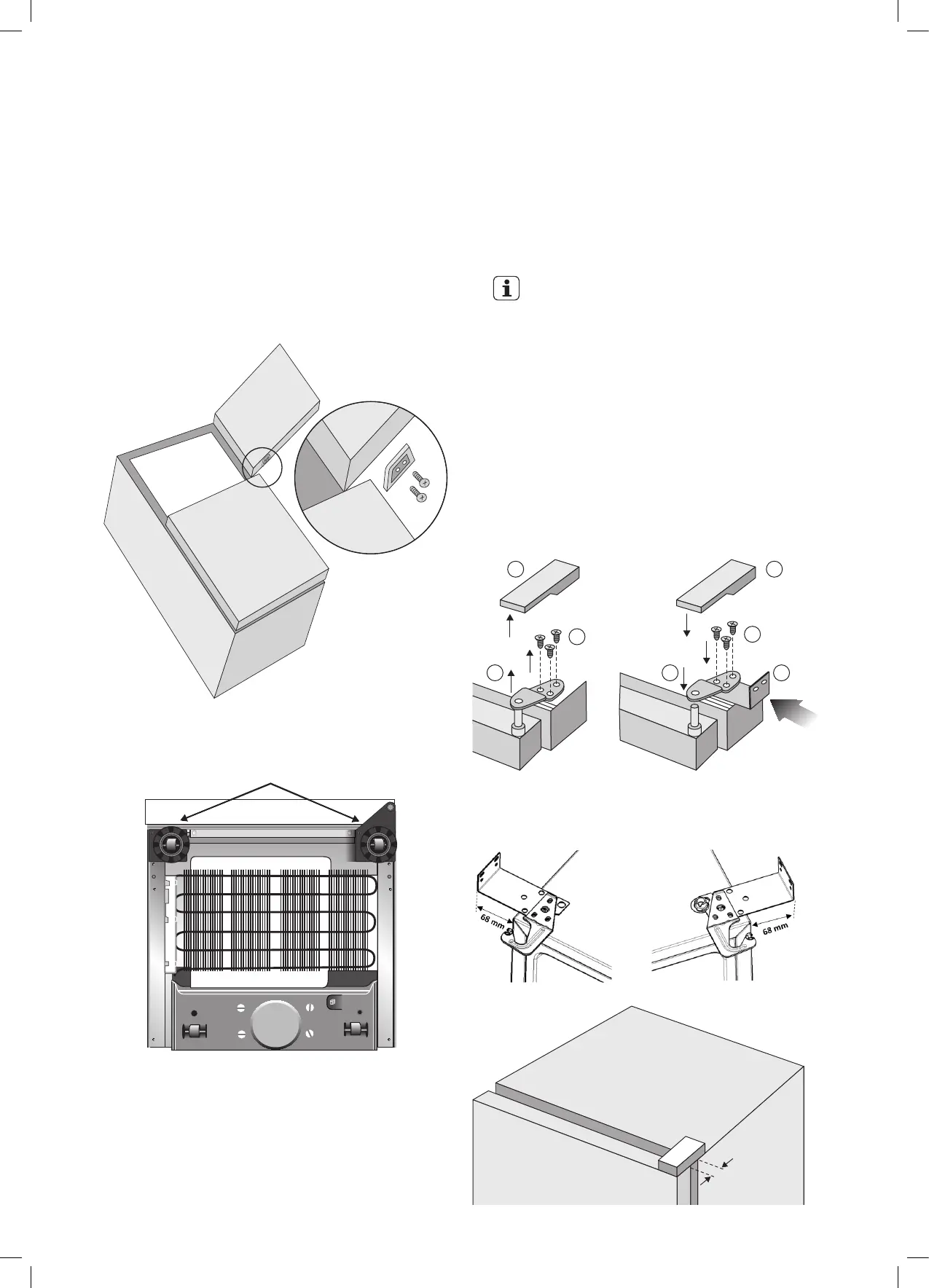

PREPARATION
1. Unpack refrigerator, removing foam packing.
2. Lay the refrigerator down on its back on a piece of
soft packing material. Use caution and two people
while laying the appliance down.
3. Remove top door stopper if fitted (Figure 1).
4. Place adjustable rollers in the fully retracted position
by screwing height adjusting screw fully anti-clockwise
(Figure 2). Do not remove the adjusting nut completely.
5. Stand upright.
Figure 1
Figure 2
Figure 2
Plastic roller nut
ATTACHING THE TOP HINGE BRACKET
1. Remove top hinge cover (Figure 3), cover clips off.
2. Remove the three (3) top hinge screws.
3. Elevate hinge.
4. Slide the top hinge bracket into position below
the hinge.
5. Re-attach hinge and screws ensuring that refrigerator
door is still correctly positioned.
IMPORTANT!
You must ensure that the refrigerator door is:
• Parallelwithsidesandtopofcabinet.
• Thegapbetweenthedoorandcabinetistypically
12mm allowing the door gasket to act correctly
(Figure 4).
Note: Ensure the gasket acts correctly, i.e. doesn’t make
a noise or leave gaps when the door is closed.
6. Recap hinge cover into position.
Figure 3
Top hinge cover
Top hinge
bracket
1
2
6
5
5
3
4
Figure 4
12mm
Top hinge bracket fitted
Figure 4
In case left side hinge In case right side hinge
