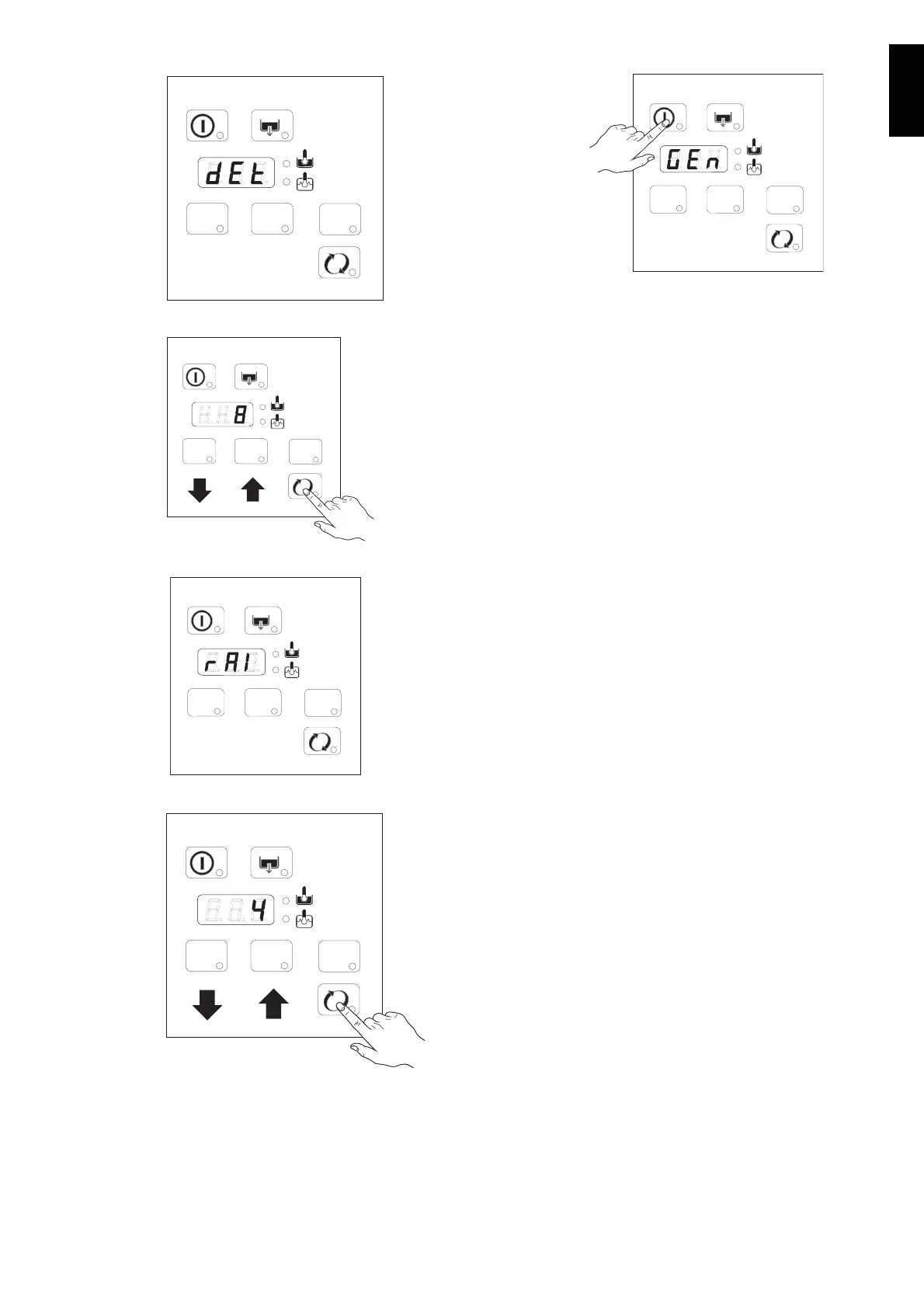

Amount of detergent during the cycle:
Setting the activation time:
Amount of rinse-aid during the cycle:
Setting the activation time:
Exit from programming mode:
Notes for external dispensers:
-if
dEt=181 the detergent dispenser only
operates during wash pump operation; terminals
7-9 of the main terminal board are powered at the
same time.
-if
dEt=182 the detergent dispenser only
operates during filling electrovalve operation for
restoring the boiler level; terminals 7-9 of the main
terminal board are powered at the same time.
-if
rAi=61 the rinse-aid dispenser only
operates during filling electrovalve operation for
restoring the boiler level; terminals 8-9 of the main
terminal board are powered at the same time.
-if
rAi=62 the rinse-aid dispenser only operates
during wash pump operation; terminals 8-9 of the
main terminal board are powered at the same time.
For connections, see the wiring diagram.
Example:
Supposing that an external detergent dispenser has
been connected with a tank concentration measuring
sensor, a standard setting could be as follows:
dIn=0 the dispenser is not activated during filling of
the tank.
dEt=181 the dispenser is activated during wash
pump operation and, thanks to the concentration
measured by the conduction sensor, the correct
amount of detergent is dispensed.
Suggestion: to check the effectiveness of the rinse-
aid, look at freshly washed glasses against the light.
Drops of water remaining on the glass indicate an
insufficient amount while streaks indicate an excess.
Changing the detergent/rinse-aid type.
If changing to a different detergent/rinse-aid type
(even one by the same manufacturer), you must rinse
the suction and pressure hoses with fresh water before
connecting the new detergent/rinse-aid container.
Otherwise, the mixing of different types of detergent/
rinse-aid will cause crystallisation, which may result in
a breakdown of the dosing pump. Failure to observe
this condition will invalidate the guarantee and product
liability.
