Screen goes into a red or yellow operating range, the appropriate
annunciator will blink, the appropriate external warning light will
blink and an appropriate voice warning will be played
(experimental only). In this way the pilot is immediately alerted of a
potential problem and should view the appropriate screen for
further information.

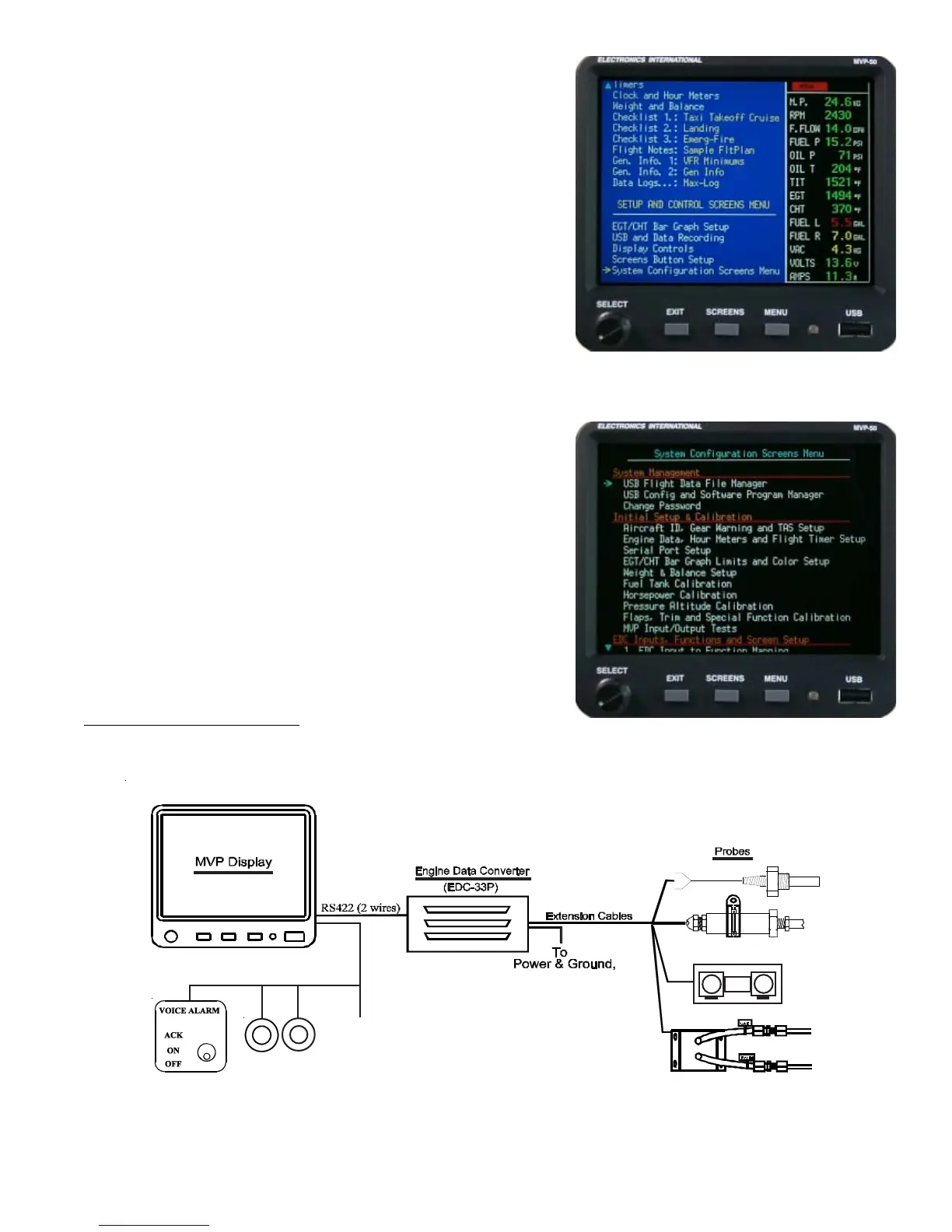

Setup and Control Screens (see section 5.0): The Setup and
Control Screen Menu provides access to screens containing
parameters that the pilot may want to change from time to time
during a flight (bar graph scaling, scan rate, recording interval,
control of warnings, brightness control, screen button setup, etc.).
System Configuration Screens (see section 6.0): The System
Configuration Screen Menu provides a list of setup screens used to
configure the MVP for almost any aircraft. These screens are only
accessible by the installer.
The “MVP-50P Setup Checklist” will guide the installer through
the necessary steps to set up the MVP for a specific aircraft. The
“MVP-50P Setup Checklist” is provided on a separate blue tag-
board. To make a change to data on any one of these screens
requires the appropriate password (see the Password Protection
section of this manual).
All of the System Configuration Screens will be displayed with a
black background and the engine instruments will not be displayed.
1.3 System Hardware:
6
Setup and Control Screen Menu
Master
Warning
Light
To
Pwr & Gnd
GPS
Auto Panel
Warning
and
Caution
Lights
System Configuration Screens
To Next Page
