Electronics Line Penta - Keypad Layout and Indicators; Keypad LED Display Meanings

-4-
3: System Operation
3.1: Keypad Layout
READY
1 234
SYSTEM
F
E
P

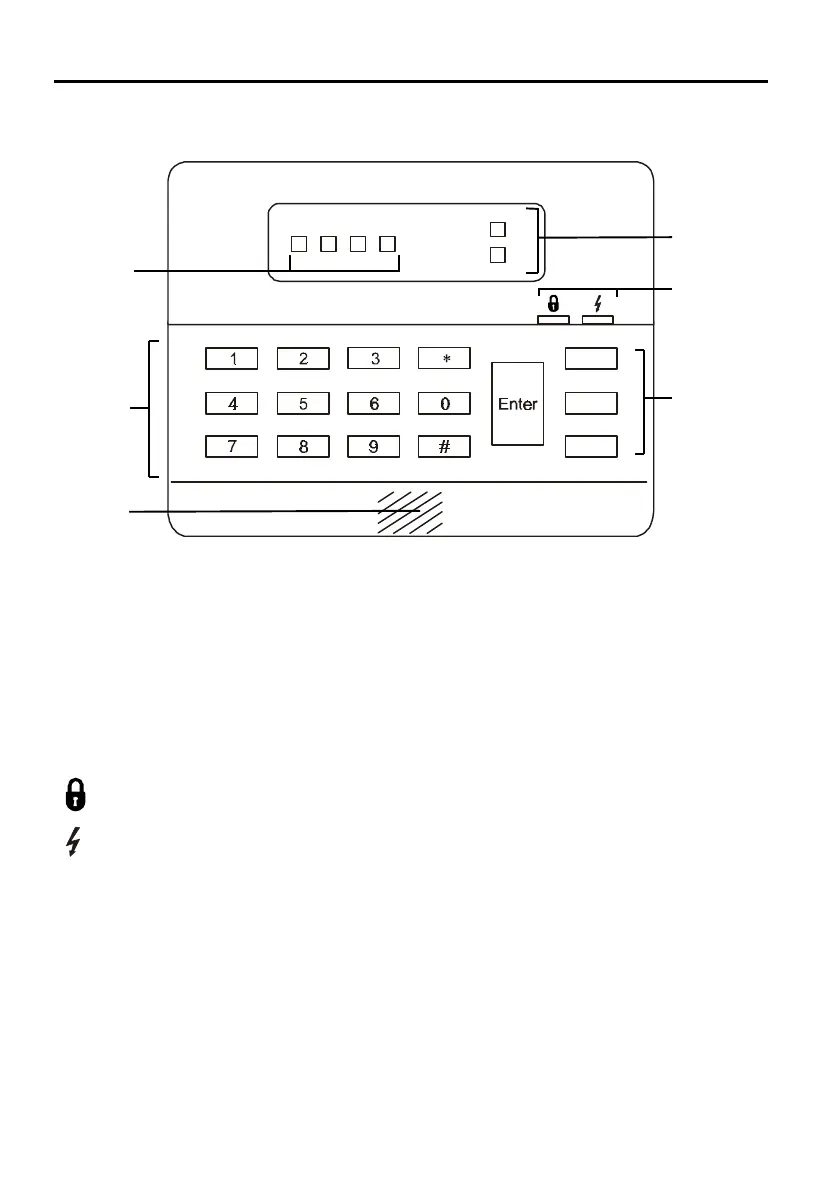

Figure 3.1: Keypad Layout
LED Display
1 - 4: LEDs 1 - 4 are used to display zone status. The corresponding LED lights up if a
zone is open. If a zone is bypassed the corresponding LED blinks.
READY: The Ready LED lights up to indicate that there are no open zones or tamper
conditions and the system is ready to be armed.
SYSTEM: The System LED blinks to indicate that new events have been recorded in
one of the logs and when displaying additional system information such as bypass
mode.
ARMED: The Armed LED lights to indicate the system is armed or in
programming mode and flashes during the exit delay.
POWER: The Power LED lights up when both AC & battery power are OK, blinks
when the battery is low & AC power is OK, and goes out in the event of AC failure.
Buzzer
System Status
Indicators
meric Keypad
Status
Indicators
Zone Status
Indicators
Distress Keys
