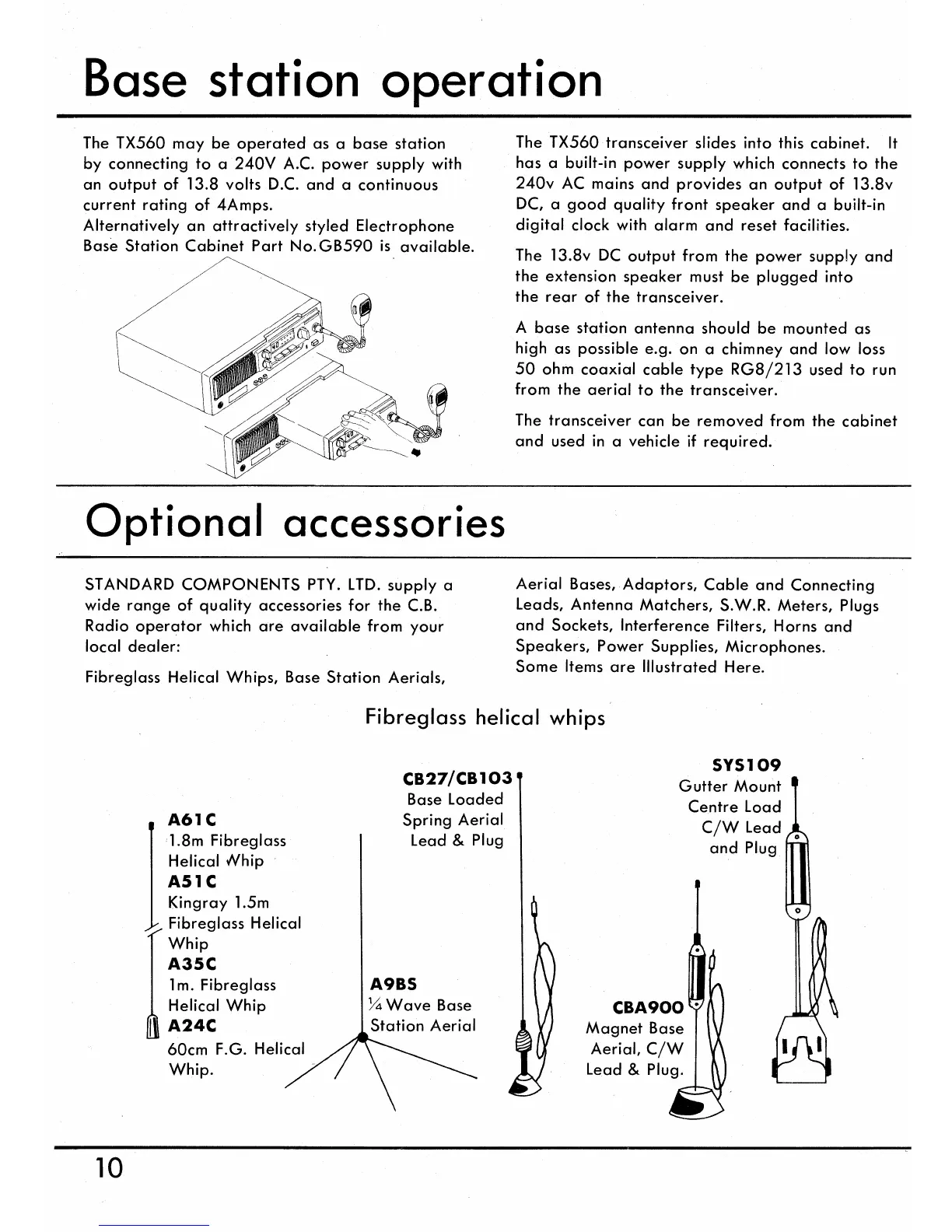

Base station operation
The TX560 may be operated as a base station
by connecting to a 240V A.C. power supply with
an output of 13.8 volts D.C. and a continuous
current rating of 4Amps.
Alternatively an attractively styled Electrophone
Base Station Cabinet Part No.GB590 is available.
The TX560 transceiver slides into this cabinet. It
has a built-in power supply which connects to the
240v AC mains and provides an output of 13.8v
DC, a good quality front speaker and a built-in
digital clock with alarm and reset facilities.
The 13.8v DC output from the power supply and
the extension speaker must be plugged into
the rear of the transceiver.
A base station antenna should be mounted as
high as possible e.g. on a chimney and low loss
50 ohm coaxial cable type RG8/213 used to run
from the aerial to the transceiver.
The transceiver can be removed from the cabinet
and used in a vehicle if required.
Optional accessories
STANDARD COMPONENTS PTY. LTD. supply a
wide range of quality accessories for the C.B.
Radio operator which are available from your
local dealer:
Fibreglass Helical Whips, Base Station Aerials,
Aerial Bases, Adaptors, Cable and Connecting
Leads, Antenna Matchers, S.W.R. Meters, Plugs
and Sockets, Interference Filters, Horns and
Speakers, Power Supplies, Microphones.
Some Items are Illustrated Here.
Fibreglass helical whips
A61C
1.8m Fibreglass
Helical Whip
A51C
Kingray 1.5m
Fibreglass Helical
i. Whip
A35C
lm. Fibreglass
Helical Whip
A24C
60cm F.G. Helical
Whip.
CB27/CB103
Base Loaded
Spring Aerial
Lead & Plug
A9BS
1
/
4
Wave Base
Station Aerial
I
10
