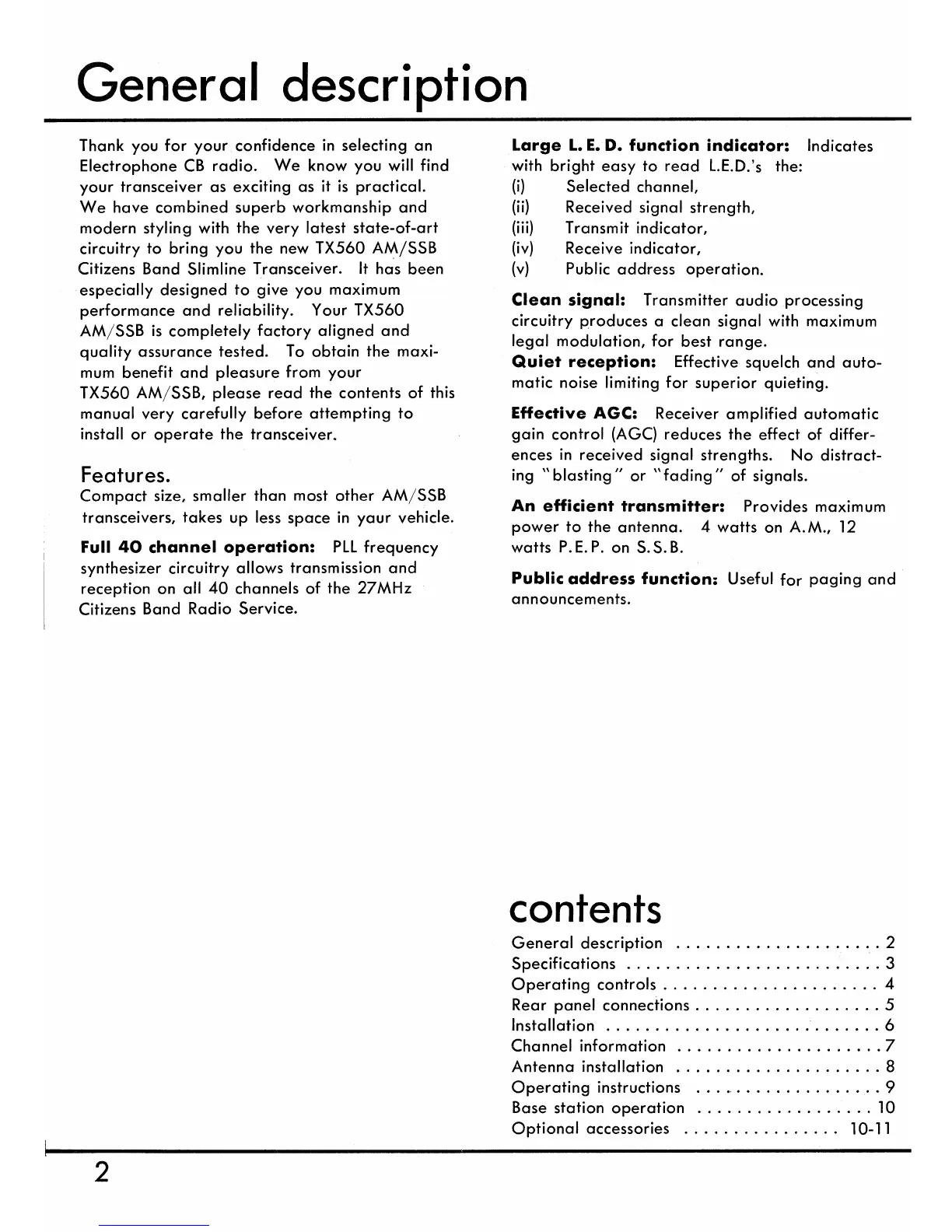

General description
Thank you for your confidence in selecting an
Electrophone CB radio. We know you will find
your transceiver as exciting as it is practical.
We have combined superb workmanship and
modern styling with the very latest state-of-art
circuitry to bring you the new TX560 AM/SSB
Citizens Band Slimline Transceiver. It has been
especially designed to give you maximum
performance and reliability. Your TX560
AM/SSB is completely factory aligned and
quality assurance tested. To obtain the maxi-
mum benefit and pleasure from your
TX560 AM/SSB, please read the contents of this
manual very carefully before attempting to
install or operate the transceiver.
Features.
Compact size, smaller than most other AM/SSB
transceivers, takes up less space in yaur vehicle.
Full 40 channel operation: PLL frequency
synthesizer circuitry allows transmission and
reception on all 40 channels of the 27MHz
Citizens Band Radio Service.
Large L. E. D. function indicator: Indicates
with bright easy to read L.E.D.'s the:
(i)
Selected channel,
(ii)
Received signal strength,
(iii)
Transmit indicator,
(iv)
Receive indicator,
(v)
Public address operation
Clean signal: Transmitter audio processing
circuitry produces a clean signal with maximum
legal modulation, for best range.
Quiet reception: Effective squelch and auto-
matic noise limiting for superior quieting.
Effective AGC: Receiver amplified automatic
gain control (AGC) reduces the effect of differ-
ences in received signal strengths. No distract-
ing " blasting" or "fading" of signals.
An efficient transmitter: Provides maximum
power to the antenna. 4 watts on A.M., 12
watts P.E. P. on S.S. B.
Public address function; Useful for paging and
announcements.
contents
General description
2
Specifications
3
Operating controls
4
Rear panel connections
5
Installation
6
Channel information
7
Antenna installation
8
Operating instructions
9
Base station operation
10
Optional accessories
10-11
2
