INFORMATIE VOOR DE INSTALLATEUR

Verticale dakdoorvoer met aopend kniestuk voor concentrisch rookkanaal

Aanbevolen wordt om eerst de verkleiner

USVK naar afvoermateriaal 150/100 te ge-

bruiken.

INSTALLER INFORMATION

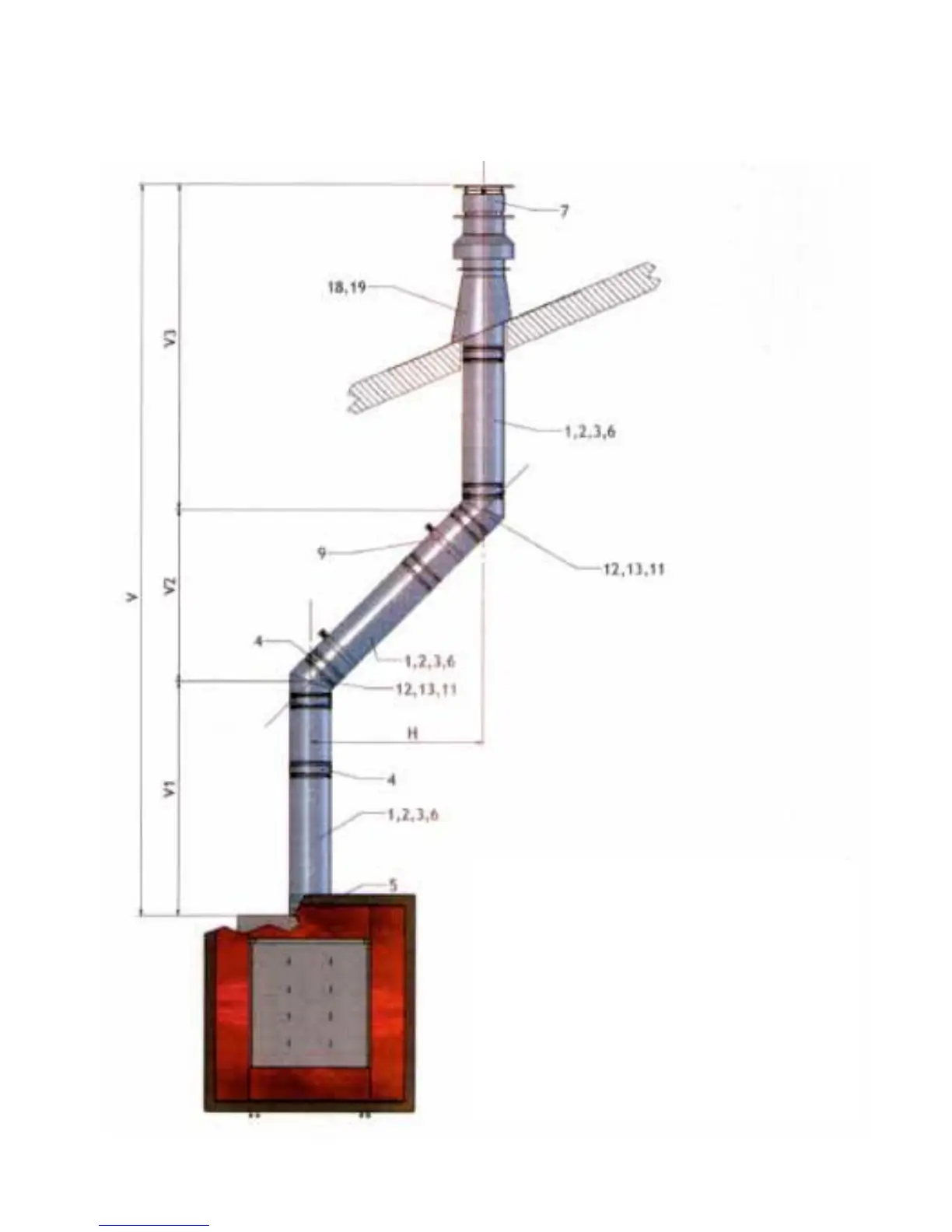

Vertical Roof Mounted Termination with Angled Elbow for Rigid Concentric Flue

In this situation we recommend to use a reducer

USVK towards ue dimension 150/100.

Distance “H” = 0 - 3m (min – max)

Distance “V1” = 500mm - 10m (min – max)

Distance “V2” = 500mm - 10m (min – max)

Distance “V” = (=V1 + V2) = 1-11m (min – max)

Distance “V” = 2 times distance “H” (min)
