12
SPECIFICATIONS and DIMENSIONS
Element4 Gas Fireplaces EuropeanHome.com

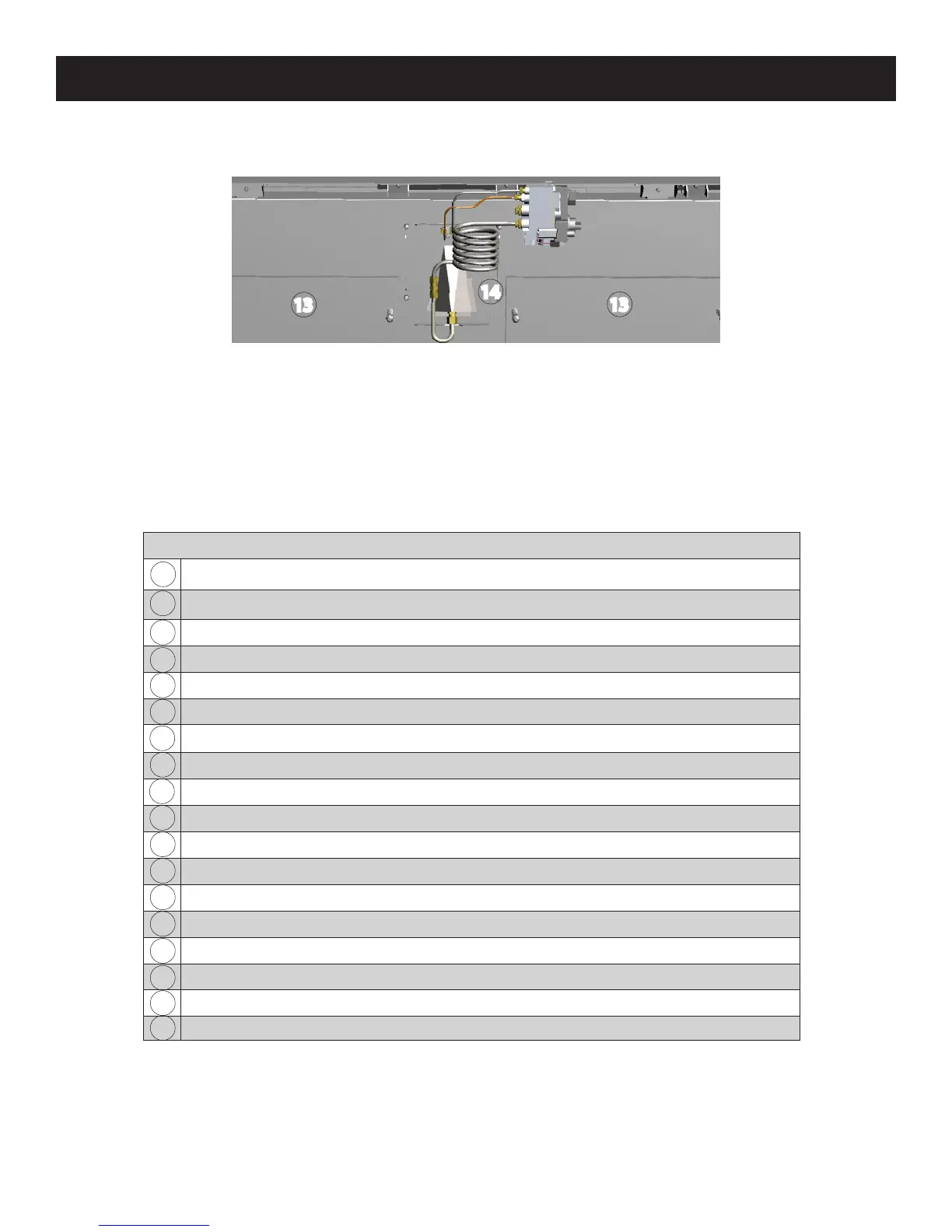

Figure 6
Figure 6 shows a view from below.
Table 1
Table of Fireplace Parts
Outer Frame Face- surrounds the glass panels and limits the non-combustible wall board
Exterior Glass Panel - 1 or 2 depending on model
Support Feet - four adjustable feet allow the replace to be levelled
Hearth Panel - supports various Fire Media
Primary Burner - produces the main ame
Secondary Burner - produces the second ame; may be controlled separately
Pilot Burner - the part of the safety circuit which lights the Main Burner
2
nd
Thermocouple - the part of the safety circuit which monitors the Main Burner
Finish Trim - hides the Glass Clamps
Interior Glass Panel (N/A - Sky, 1 - Sky T)
Glass Clamp - holds the Glass Panel in place (6 ea. - Sky, 12 ea. - Sky T)
Vent Collar - accepts the 5” x 8” venting adapter (included)
Relief Door - part of the safety system. Do NOT block the operation.
Pilot Assembly
Upright Trim - (2 ea. - Sky, 4 ea. - Sky T hides the vertical Glass Clamps)
No material zone
Top of replace
Flange
11
10
9
8
7
6
5
4
3
2
1
12
13
14
15
16
17
18
13
14
13
