MAINTENANCE
Element4 Gas Fireplaces EuropeanHome.com

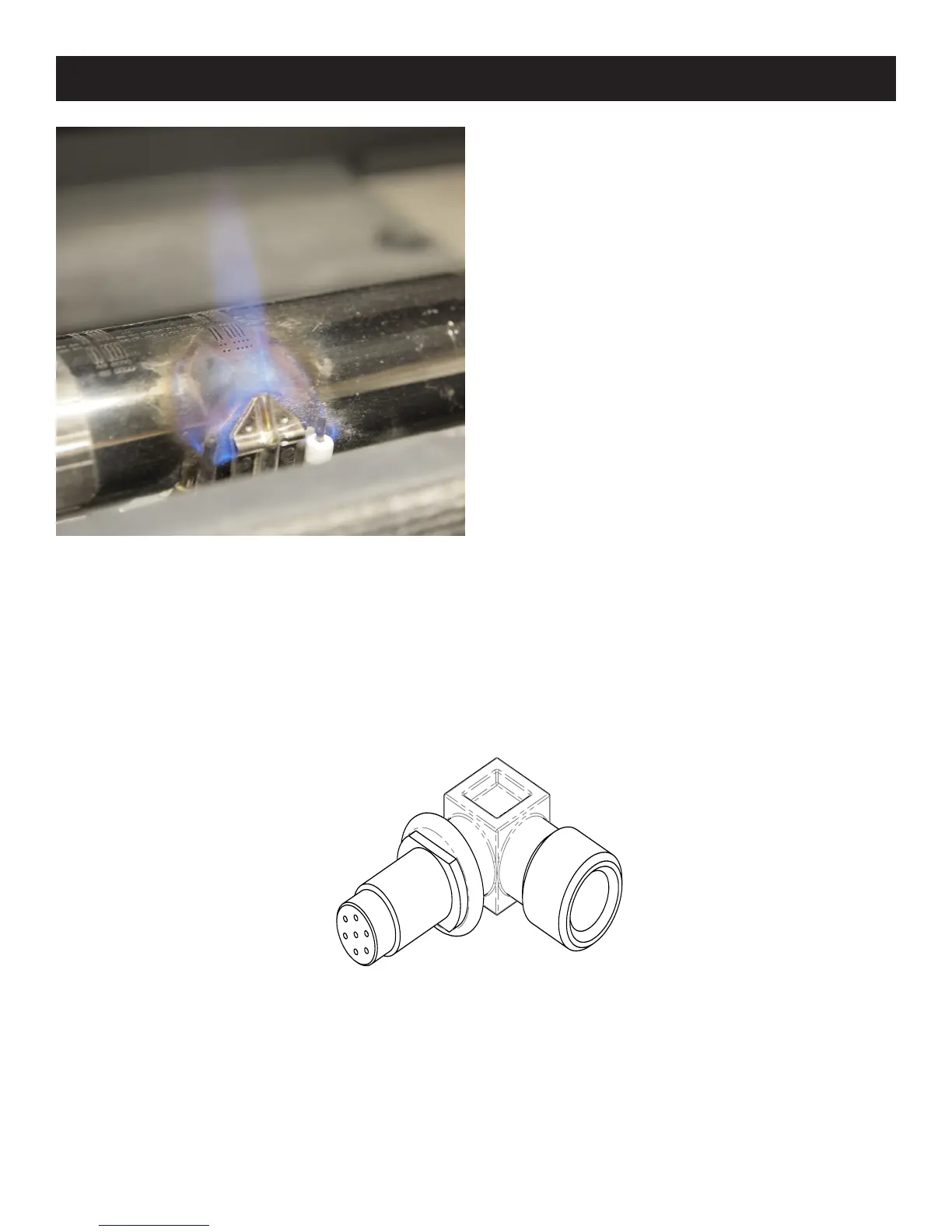

Natural Gas Injector - marked 1200
Propane Gas Injector - marked 320
Figure 43
The orice for the burners is shown in Figure 44. The NG orices are marked 1200, LP orices are marked 220.
Figure 44
REPLACEMENT PARTS
E4-SA-LPCK-100H-04 LP Conversion Kit
REPL-E4-GS-1T-01 Replacement Primary Thermocouple
REPL-E4-GS-2TC-01 Replacement 2nd Thermocouple
REPL-E4-GS-CM-01 Replacement Receiver
REPL-E4-GS-RC-01 Replacement Remote Control
THERMOCOUPLE MAINTENANCE
The Element4 replaces have two thermocouples; one next to
the pilot and one opposite the pilot side of the main burner. The
completeness and operation of both must be checked. A qualied
installer must conrm that both thermocouples are in place and
not damaged. While checking the thermocouple, please ensure
that the ignitor rod is not cracked as well.
VENT MAINTENANCE
The following venting system inspection by a qualied service
technician is recommended every six months:
1. Inspect for excessive condensation, e.g. water droplets
forming in the inner lining and subsequently dripping out
of the joints. This can cause corrosion in the system.
2. Check for corrosion in areas exposed to the elements.
Where rust spots or holes have appeared, these must be
immediately replaced.
3. Ensure that there is no foreign material in the vents. Survey
by removing the cap and shining a light down the vent.
4. Check all joints and pipes to make sure that nothing has
been disturbed or loosened.
