Element4 Sky - Horizontal Vent Terminations

21
VENTING
Element4 Gas Fireplaces EuropeanHome.com
H
V
Distance “H” = 0.5-5m (min - max)
Distance “V” = 0.5-3m (min - max)
Note - for E4-10 & 11 Elbow can go
on to fire, thus “V” min = 200mm
Note2 - For E4-5, use a 50mm flue
Restrictor

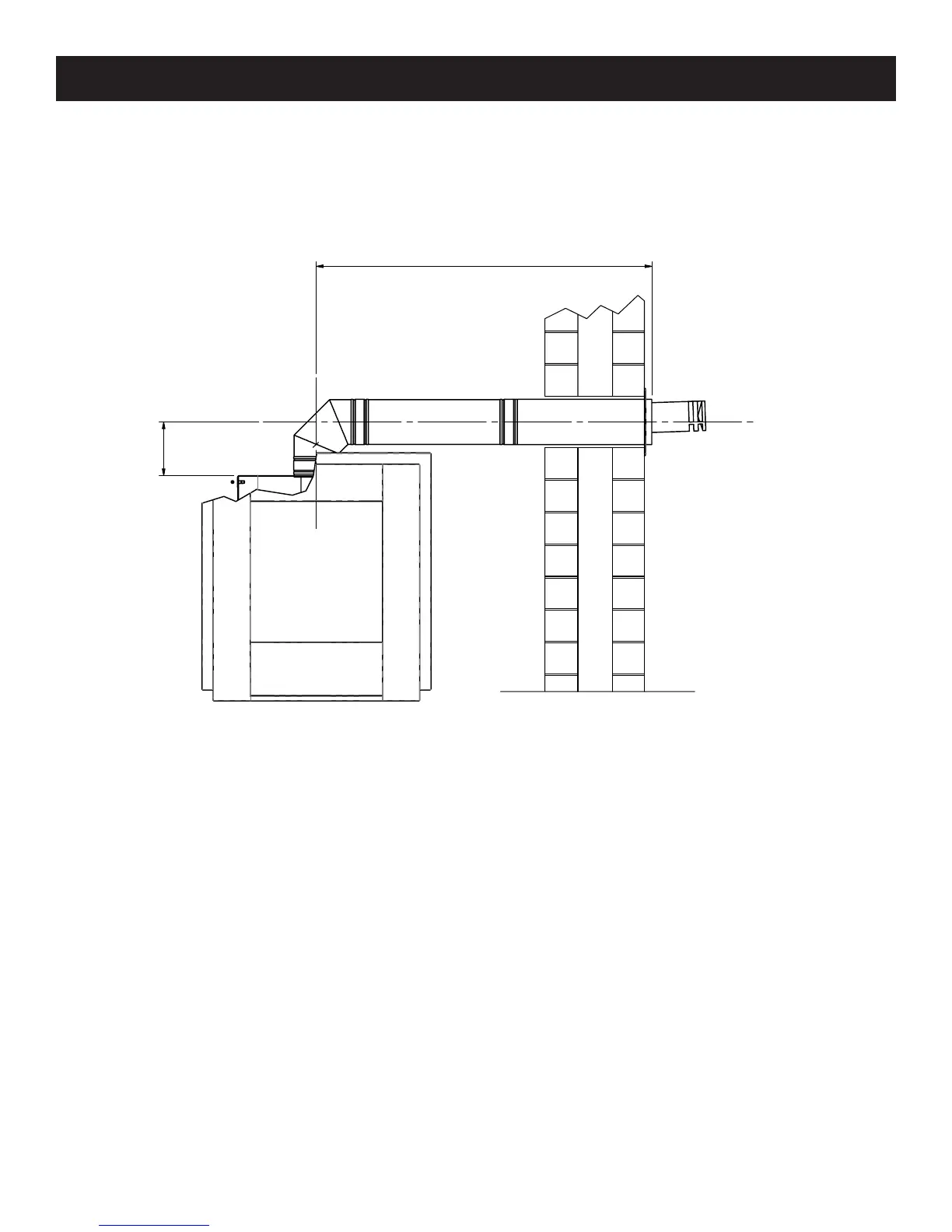

Figure 17
Dimension “H” (run) can vary between 3’3”/1.0 m minimum to 16’4”/5.0 m maximum depending on Dimension “V”. (See Graph 1)
Dimension “V” (rise) can vary between 19”/500 mm minimum to 11’5”/3.5 m maximum depending on Dimension “H”. (See Graph 1)
HORIZONTAL TERMINATIONS
HORIZONTAL
Note: Congurations with vertical terminations may need a restrictor. See the INSTALLING A RESTRICTOR section.
