25
VENTING
Element4 Gas Fireplaces EuropeanHome.com
V
V2
H
V1
Distance "H" = 0 - 3m (min - max)
Distance "V1" = 500mm - 10m (min - max)
Distance "V2" = 500mm - 10m (min - max)
Distance "V" (= V1+V2) = 1m - 11m
(min - max)
Distance "V" =2x "H" (min)
Distance “H” = 0”/0.0 m minimum to 9’10”/3.0 m maximum
Distance “V1” = 19”/500 mm minimum to 33’10”/10.0 m maximum
Distance “V2” = 19”/500 mm minimum to 33’10”/10.0 m maximum
Distance “V” (V1+V2) = 3’3”/1.0 m minimum to 36’/11.0 m maximum
Distance “V” must be greater than twice the distance of “H”
Subtract 3’3”/1.0 m of maximum height for every 90° elbow up to a maximum
of four (4) 90° elbows.
A minimum distance of 12”/304 mm between the roof and the lowest
discharge opening in the termination must be maintained.
Power vent systems are available for congurations beyond these limits.

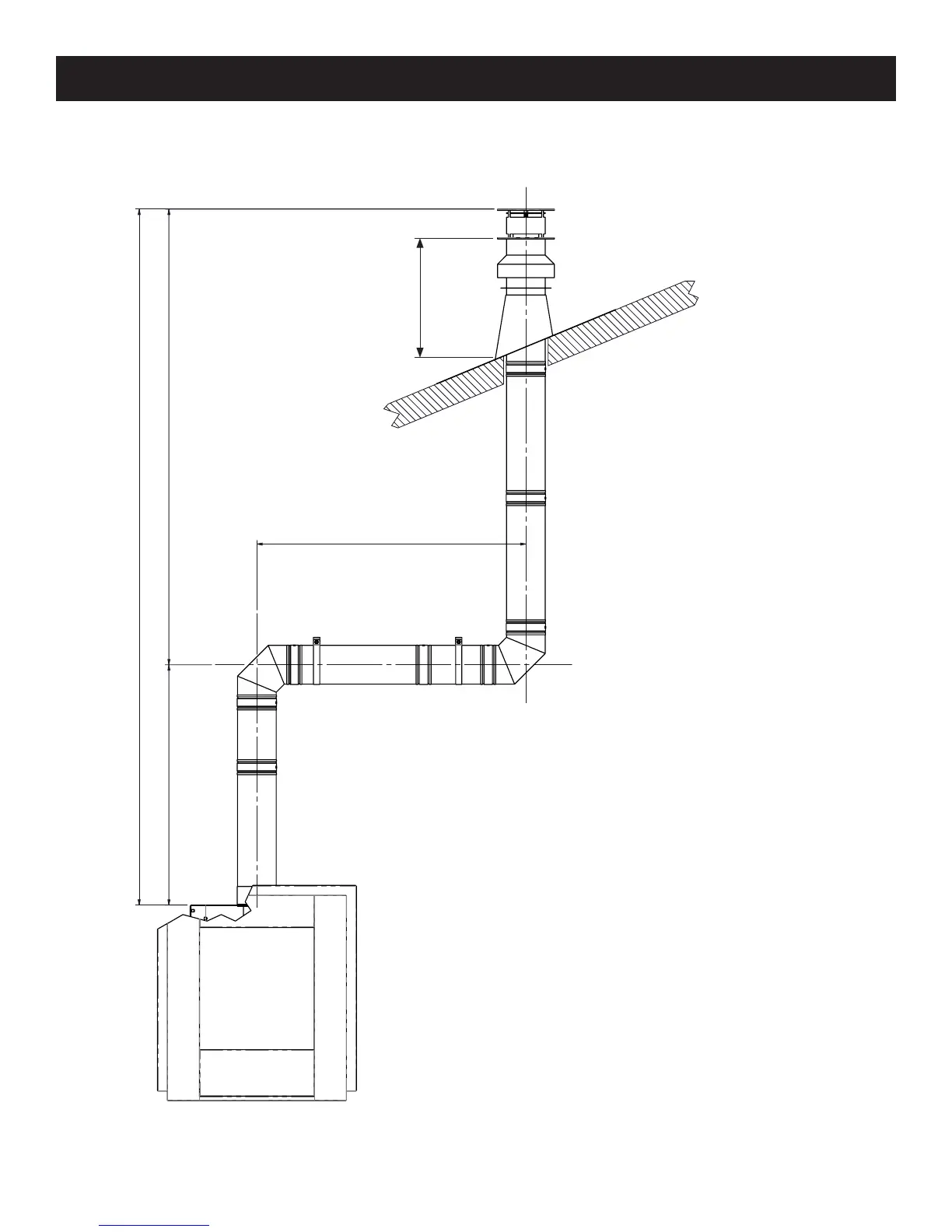

Figure 19 Vertical Terminations with 90° elbows
VERTICAL TERMINATIONS WITH 90° ELBOWS
12”/304 mm
minimum
VERTICAL
Note: Congurations with vertical terminations may need a restrictor. See the
INSTALLING A RESTRICTOR section.
