3. For the second, smaller hole, drilling is required to reinforce the rack. Use an electric hand drill to
drill a hole that aligns with second smaller hole. Install the M12x75 external hexagonal bolt full thread
(9), 12 spring washer (7), and 12 large at washer (8), tting the bolt through the small hole in the
xed seat and the drilled hole in the pickup, screwing it into the at panel mounting plate (5). Repeat

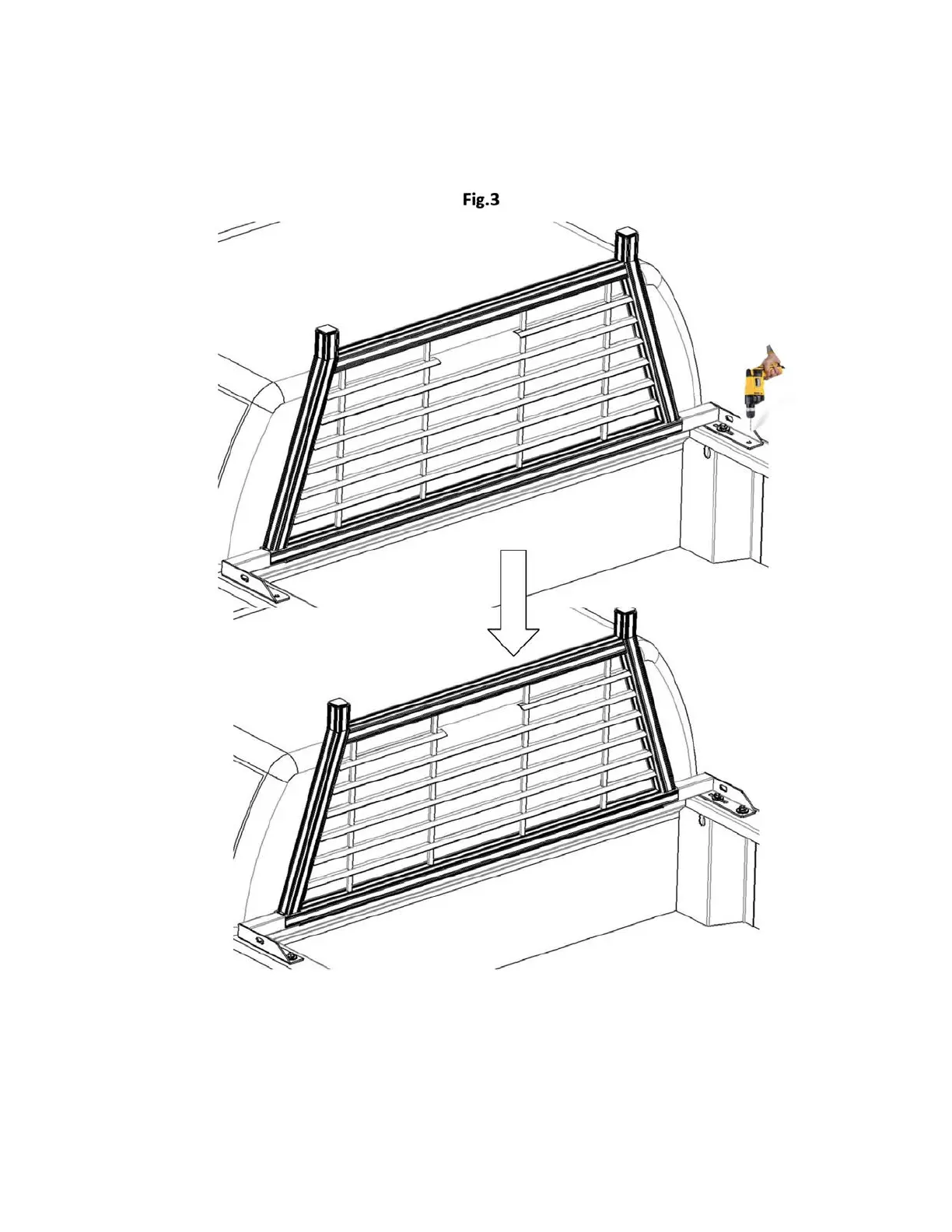

on the other side, tightening securely. See Figure 3:
