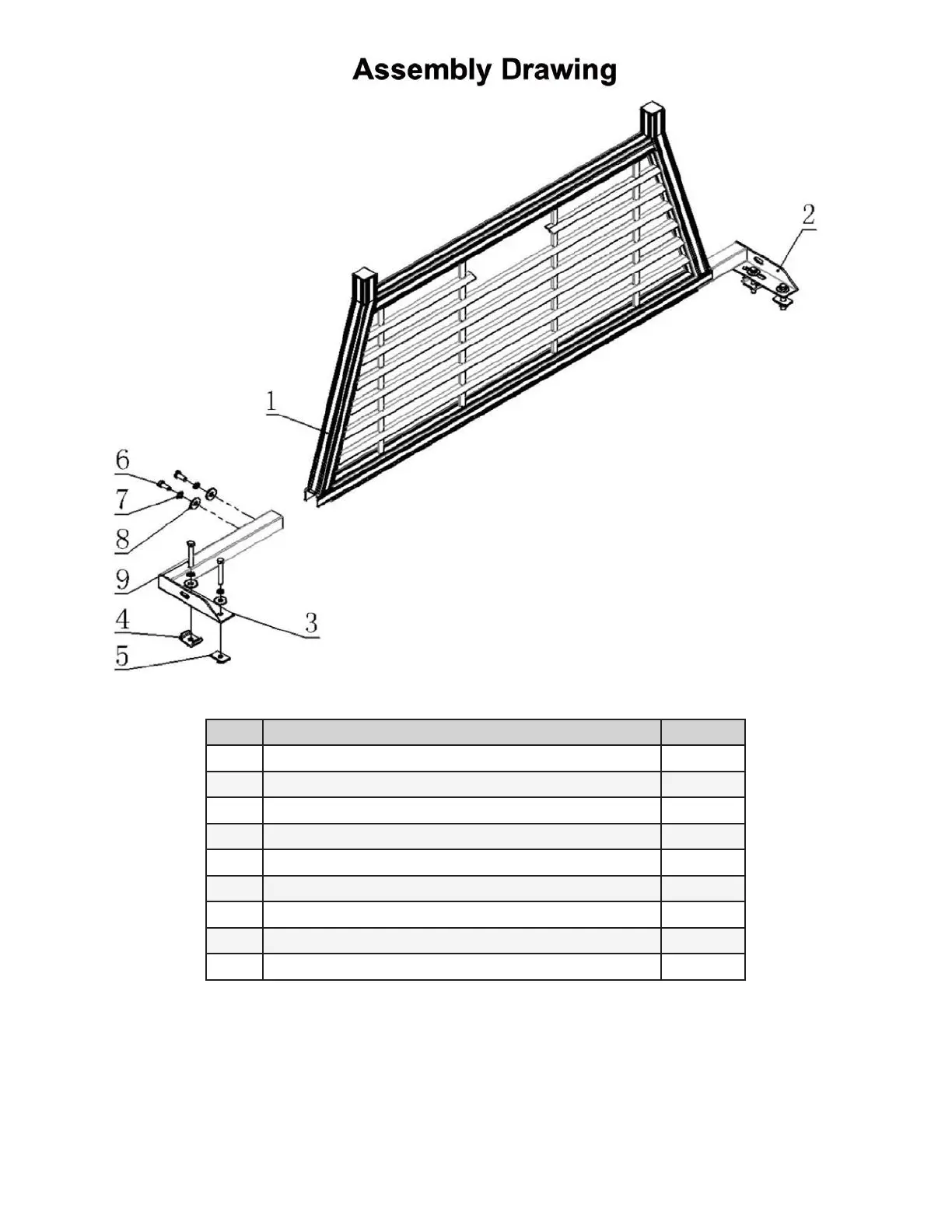

Note: The Parts List and Assembly Diagram is provided as a reference tool only. Some parts are listed and shown for
illustration purposes only, and are not available as replacement parts. All repairs to this tool (including replacing parts)
should only be done by a qualied service technician.
Part Description Quantity
1 Frame 1
2 Right Fixed Seat 1
3 Left Fixed Seat 1
4 U-Type Mounted Plate 2
5
Flat Panel Mounting Plate
2
6 M12x30 Outer Hexagonal Bolt Full Thread 4
7 12 Spring Washer 8
8 12 Large Flat Washer 8
9 M12x75 External Hexagonal Bolt Full Thread 4
To Next Page
