Rev.04/17/2017 DR www.elitescreens.com 5

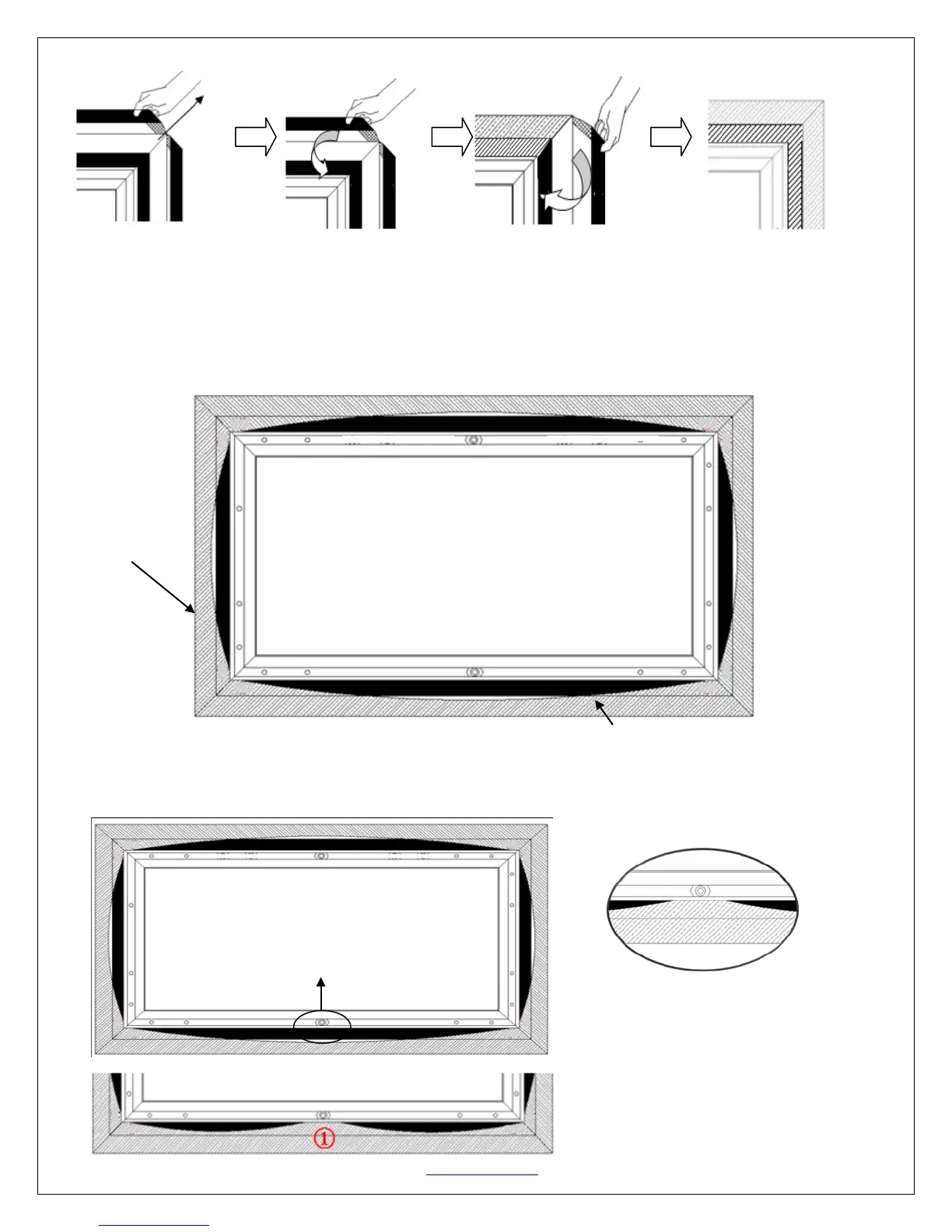

Attach the screen material to the corners as shown below.
4. After all four corners have been attached; please check whether the frame corners are wrapped by the screen
material. If not, please loosen the velcro connection and repeat the above steps so the frame is not exposed.
5. Proceed to attach the rest of the material to the frame as described in the illustrations below.
Note: The black shaded part represents the velcro on the frame. That Velcro
end will ultimately attach with the other velcro end on the screen material.
Note:
Represents the
screen material
Lay the Velcro end on the screen
material over the Velcro end of the
frame and keep it within the edge.
Proceed in the following sequence
below
2) Fold over and attach
material to the velcro
strip of the frame.
3) Fold over second side
and attach to frame
4) Repeat until all four
sides are done in the
order A, B, C, D
1) Stretch the screen
material in the direction
of the arrowhead.
Grasp the middle of the screen
material and attach it to the velcro
strip on the frame
To Next Page
