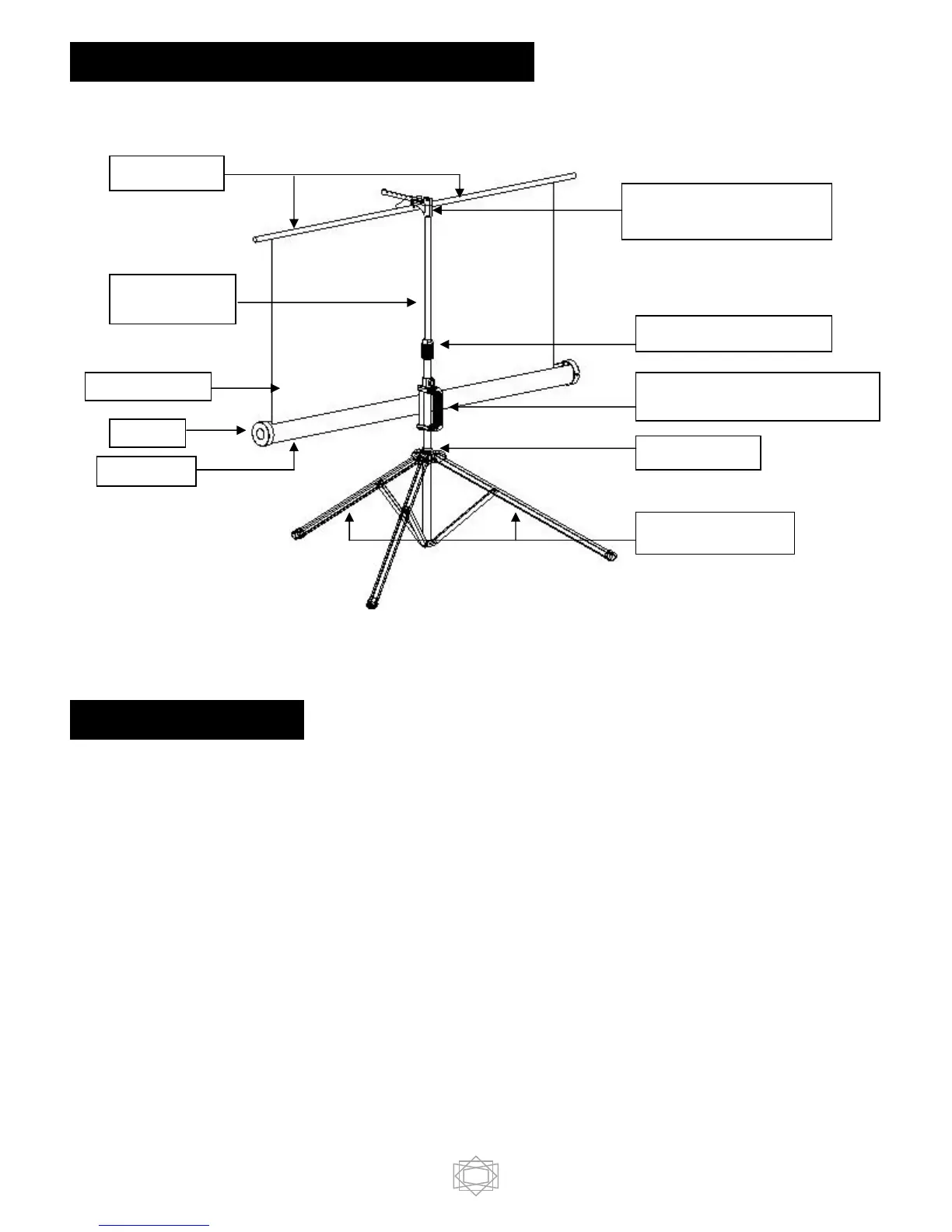

Tripod Screen Parts Identification
Using the Screen
A. Setting up the screen:
Follow the steps below and Fig. 1 & 2.
1. Place the screen in an upright position (fig.1) with the legs toward the ground.
2. Deploy the Tripod Support legs by pushing down on the Tripod Junction.
3. Turn the tripod’s screen casing in a 90-degree horizontal position so that the screen casing is now
parallel to the ground with the screen handle facing the bottom of the top hook.
4. Completely extend the legs as much as possible so they are stable and position them away from
objects that may interfere with their balance. DO NOT stand the tripod on an unstable platform to avoid
an injury should the tripod screen collapse.
Top Hook, Keystone
Eliminator & Screen Handle
Vertical locking sleeve ring
Support beam
Vertical
Extension Bar
Screen Material
Screen case
Carrying handle & Screen height
adjustment lock/release tab
Tripod junction
Tripod Support Legs
End ca
