Elite Screens Manual SRM Pro Series User Manual

Rev. 010710-JA 3
Unit: mm
Models
Diagonal
Size /
Aspect
Ratio
Case
Length
(A)
Viewing
Width
(A1)
Screen
Width
(A2)
Weight
bar
Length
(A3)
Bottom
Edge
Distance
(B2)
Screen
Material
to Weight
Bar
Height
(B3)
Viewing
Height
(B1)
Screen
Overall
Height
(B)
End cap
Height
(B4)
End
cap
Width
(C)
Screen
material
distance
to wall
(C1)
M84VSR-Pro 84" (4:3) 1867.0 1707.0 1783.0 1863.0 62.0 1456.0 1280.0 1552.0 96 80 20
M100VSR-Pro 100" (4:3) 2192.0 2032.0 2108.0 2188.0 62.0 1700.0 1524.0 1796.0 96 80 20
M120VSR-Pro 120" (4:3) 2598.0 2438.0 2514.0 2594.0 62.0 2005.0 1829.0 2101.0 96 80 20
M84HSR-Pro 84" (16:9) 2014.0 1860.0 1936.0 2010.0 62.0 1222.0 1046.0 1318.0 96 80 20
M100HSR-Pro 100" (16:9) 2374.0 2214.0 2290.0 2370.0 62.0 1421.0 1245.0 1517.0 96 80 20
M120HSR-Pro 120" (16:9) 2816.0 2657.0 2733.0 2812.0 62.0 1670.0 1494.0 1766.0 96 80 20
Unit:inch
Models
Diagonal
Size /
Aspect
Ratio
Case
Length
(A)
Viewing
Width
(A1)
Screen
Width
(A2)
Weight
bar
Length
(A3)
Bottom
Edge
Distance
(B2)
Screen
Material
to Weight
Bar
Height
(B3)
Viewing
Height
(B1)
Screen
Overall
Height
(B)
End cap
Height
(B4)
End
cap
Width
(C)
Screen
material
distance
to wall
(C1)
M84VSR-Pro 84" (4:3) 73.5 67.2 70.2 73.3 2.4 57.3 50.4 61.1 3.8 3.1 0.8
M100VSR-Pro 100" (4:3) 86.3 80.0 83.0 86.1 2.4 66.9 60.0 70.7 3.8 3.1 0.8
M120VSR-Pro 120" (4:3) 102.3 96.0 99.0 102.1 2.4 78.9 72.0 82.7 3.8 3.1 0.8
M84HSR-Pro 84" (16:9) 79.3 73.2 76.2 79.1 2.4 48.1 41.2 51.9 3.8 3.1 0.8
M100HSR-Pro 100" (16:9) 93.5 87.2 90.2 93.3 2.4 55.9 49.0 59.7 3.8 3.1 0.8
M120HSR-Pro 120" (16:9) 110.9 104.6 107.6 110.7 2.4 65.7 58.8 69.5 3.8 3.1 0.8
*Measurement dimensions are intended as a reference only and subject to change without notice
Note: Data Error ±1"

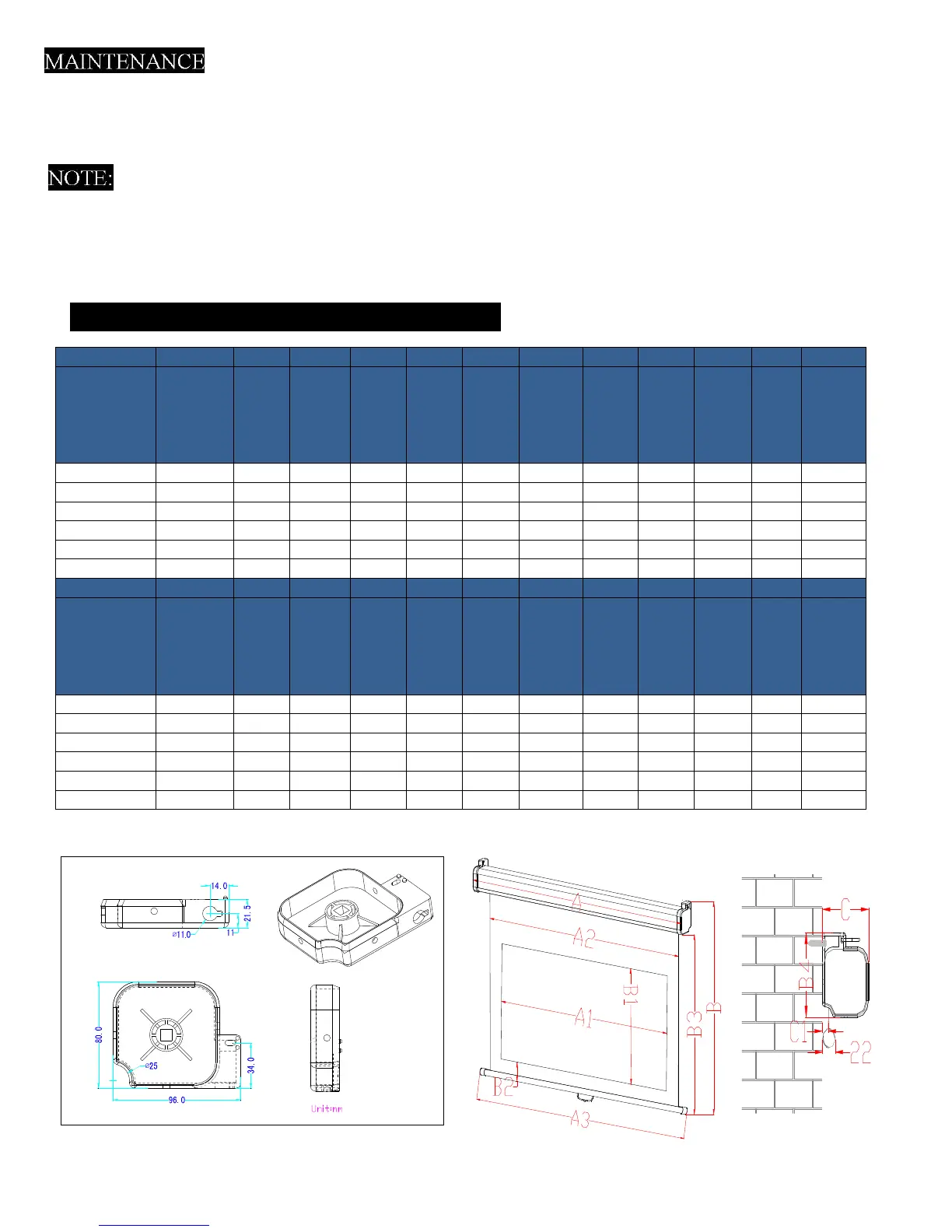

Manual SRM Pro Series Dimensions Table
Clean matte white screen material with a soft cloth and mild soap with water. When not in
use, retract screen in its housing to keep the screen material surface clean.
Regardless of mounting method, the screen should be securely supported so that vibration or even abusive
pulling on the viewing surface will not cause the case to work loose or fall. The installer must insure that the
fasteners used are of adequate strength and suitable for the mounting surface chosen.

Elite Screens Manual SRM Pro Series Specifications
