8. To secure the frame, place a stake (I) into each hole located
on the frame footing, and hammer it into the ground. Finally,
tie the 4 ropes (G) to the stakes to prevent the screen from
tilting or falling over. As shown in fig.18.

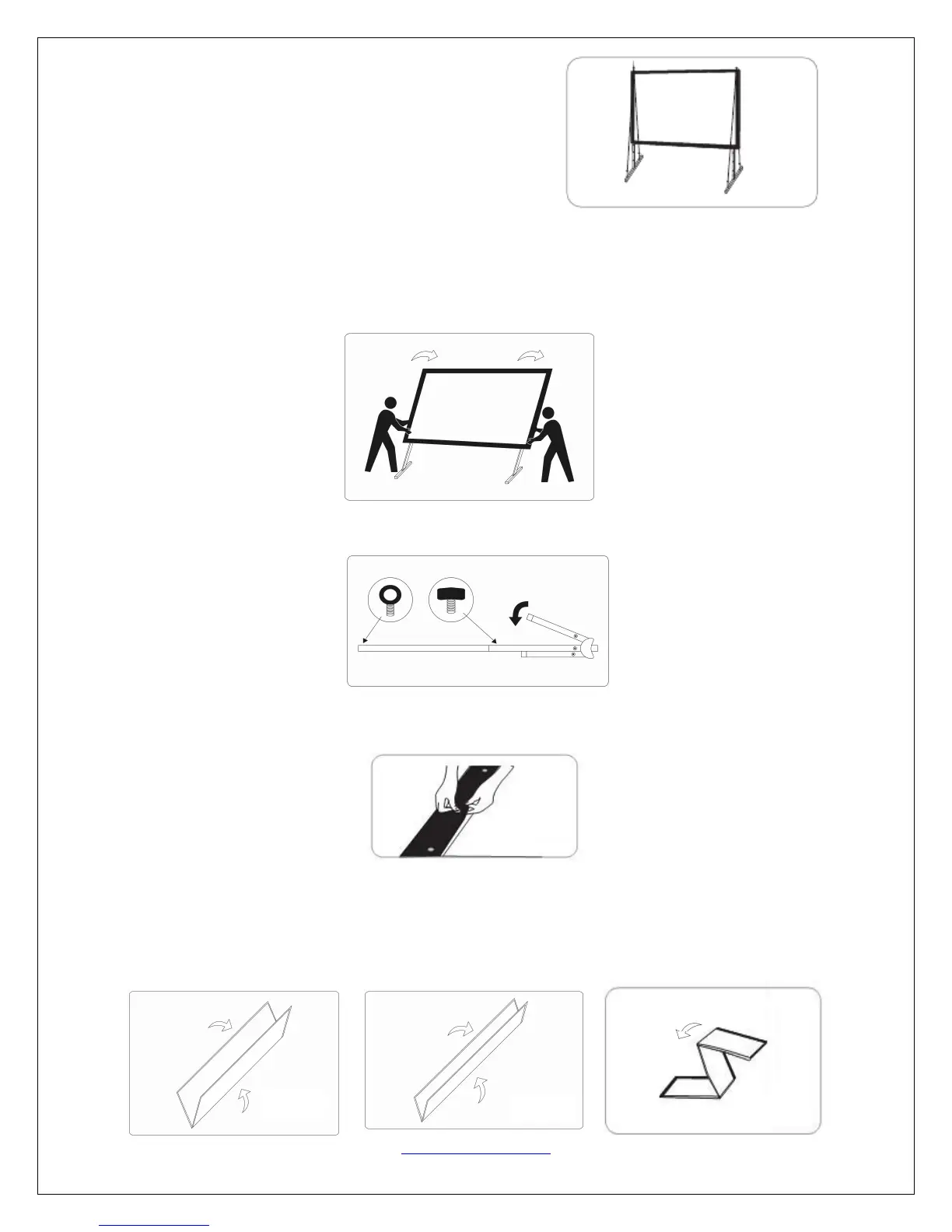

Screen Disassembly
1. Remove ropes (G) and stakes (I) from the ground.
2. Unlatch the hinged support bars on front side of each leg so that it is bent and fold that half of the legs
up for the next step.
3. Slowly lower the screen to the ground (towards the closed legs). Two people are needed for this step.
4. Unlatch the hinged support bars and fold down other half of legs.
5. Loosen and remove the ropes, knob screws (E) and eyebolts (F) from each leg.
6. Remove the frame legs (B) from the folding frame (A).
7. Detach the screen material (D) from the folding frame (A) by carefully unsnapping each button as
shown.
8. Fold screen material (D) in half, folding the bottom of the screen towards the top. Then, fold in half
again in the same way. Lastly, fold the material into thirds to condense the length, see Fig. 19 – 21.
*If you prefer to roll the material, instead of folding into thirds, roll from one end to the other after
folding in half twice.
Fig. 20
Fig. 21
To Next Page
