NOTE FOR CONNECTING CABLES AND WIRES

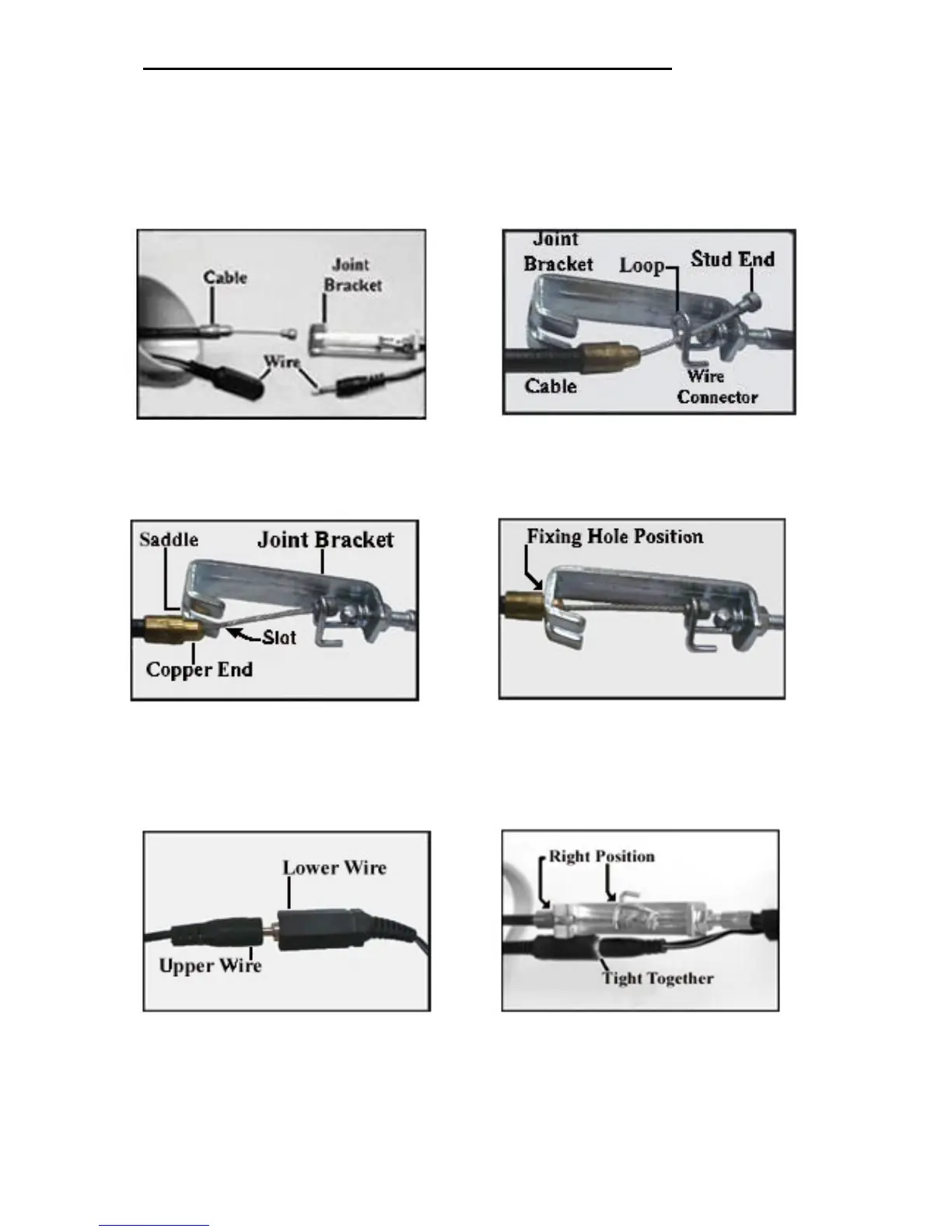

Please follow the steps to assemble the cable and wire.
This is main doing when assembly handlebar post with main body.
Step a. Prepare to connect cable and Step b. Slide the cable wire into the slot of
Computer wire. Maybe need a wire connector of the joint bracket.
Friend to hold the Handlebar Pull up to let the casting stud end of
Post. The cable wire fixed in the loop of connector.
Step c. Put the connecting cable wire Step d. Fix the salience of the copper end
Into the slot of the joint bracket. Of the upper cable into the fixing hole
Pull a little hard to let the copper of the joint bracket.
End of upper cable jump over the
Saddle then to the hole.
Step e. Connect the upper computer wire Step f. Make sure the cable and wire were
with the lower computer wire. Push right connected. Carefully put back
together to be whole piece. whole set inside tube before assembly.
2. Fix the Handlebar (5) to the Front Post (4) with 1set of M8x20 (18). Then fix clamp cover
(20) with T Knob (21).
