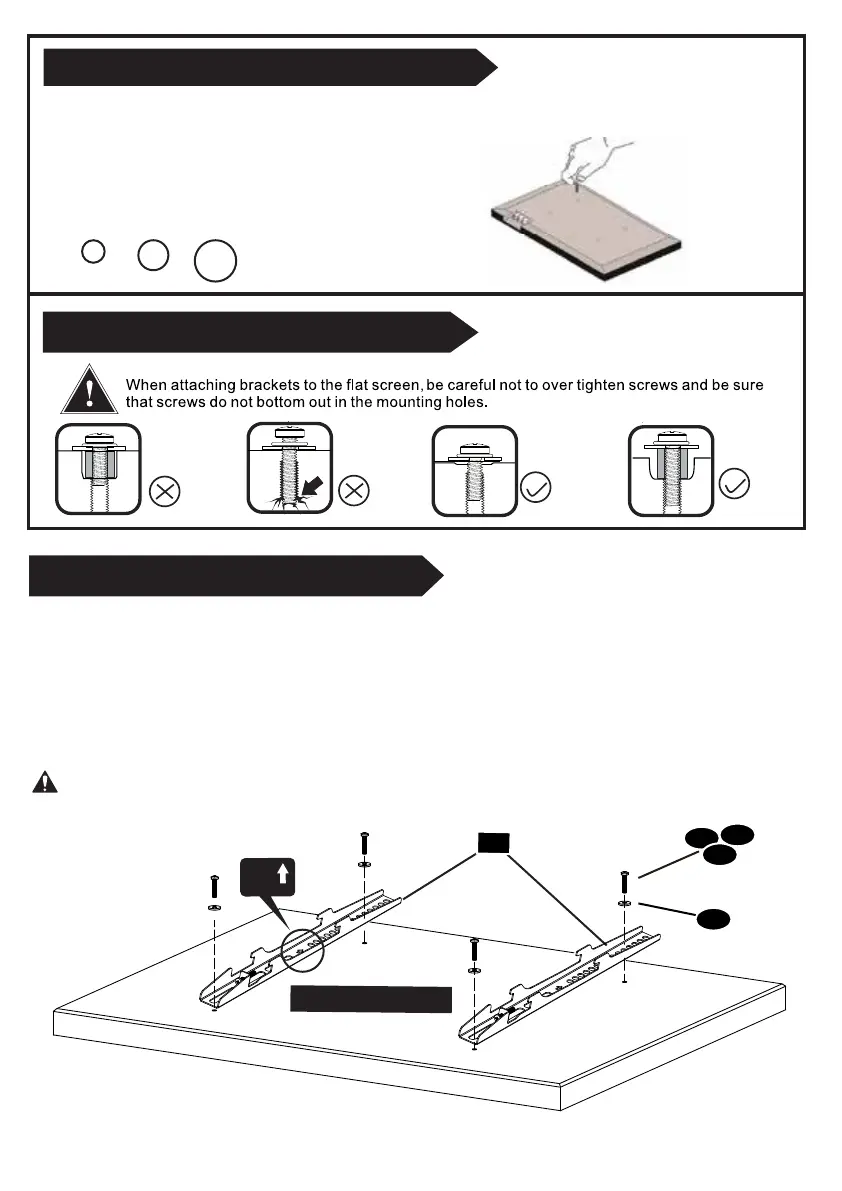

STEP 1-1 Select TV
Screw Diameter
STEP 1-3
Attach the Brackets
(a) Flat Back
04
Position your brackets over your TV hole pattern - making sure the brackets are centered
and level over the TV hole pattern.
Secure the brackets using your screw/washer/spacer selection:
(a) for Flat Back
(b) for Round Back / Extra space
CAUTION: Ensure bracket is securely fastened before moving on to the next step.
Thread screws by hand into the threaded holes on the back of your TV to select which screw
diameter fits your TV.
M6M4
M8
STEP 1-2 Select TV Screw Length
Correct
Correct
Too Long
Too Short
M-E
Not for M8 screws
Top of TV
- 4 -
M-A
Use the shorter screws
M-B
M-C
UP
To Next Page
