Elka P 3000 - 8 Terminal row and wiring; Interior view and mains connection

P 2500 - P 500
0
4
0

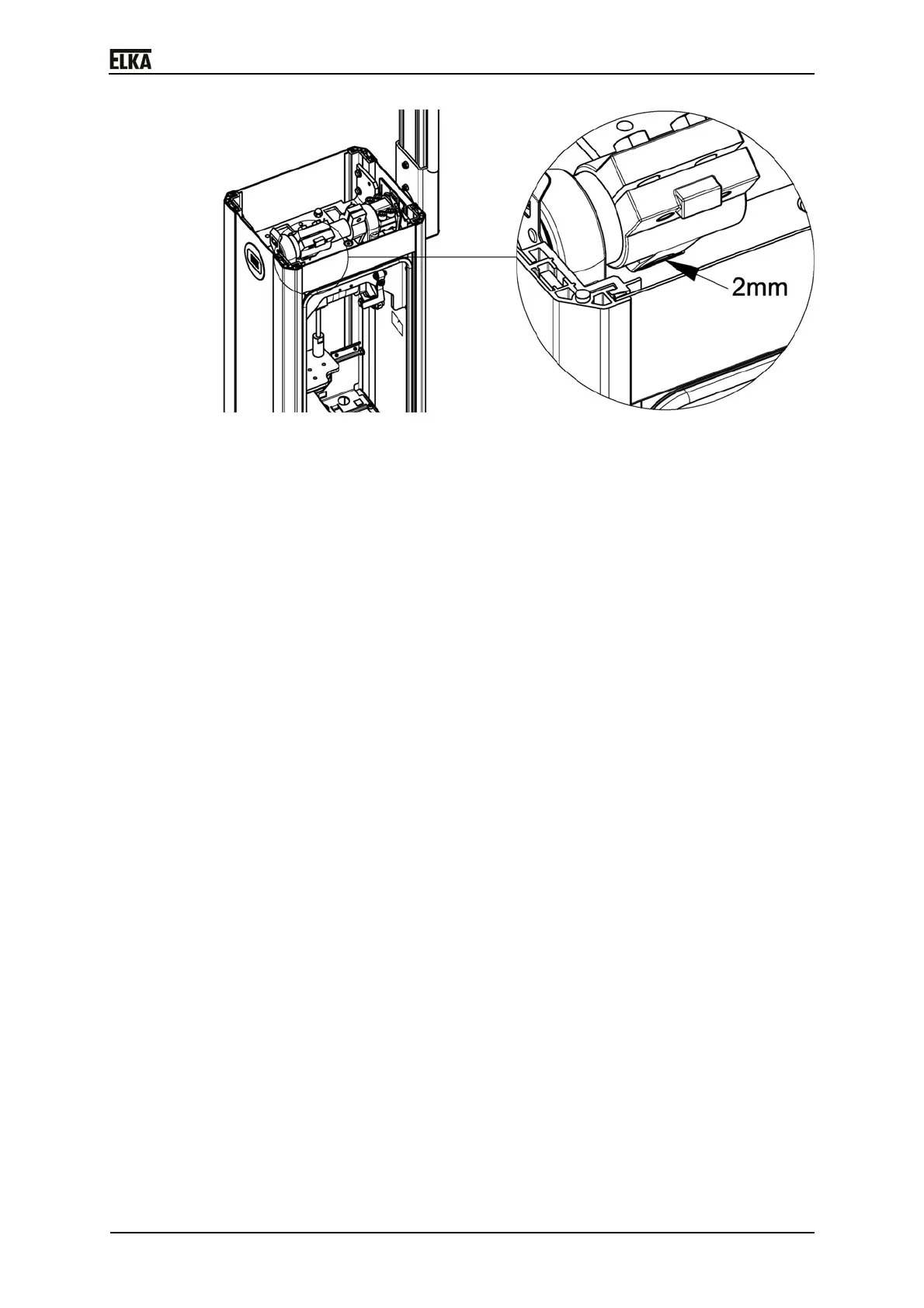

Drawing 29
5. Tighten the clamping screw of the drive lever M to the specified torque.
The torque is adapted to the mechanics and is marked on the label (B).
6. Turn on the barrier (power supply). Check the faultless running and the
correct positions (OPEN and CLOSE).
