Elka T 3000 - Terminal row; Interior view; Mains connection

T 3000 - T 350
0
2
9
8 Terminal row
8.1 Interior view

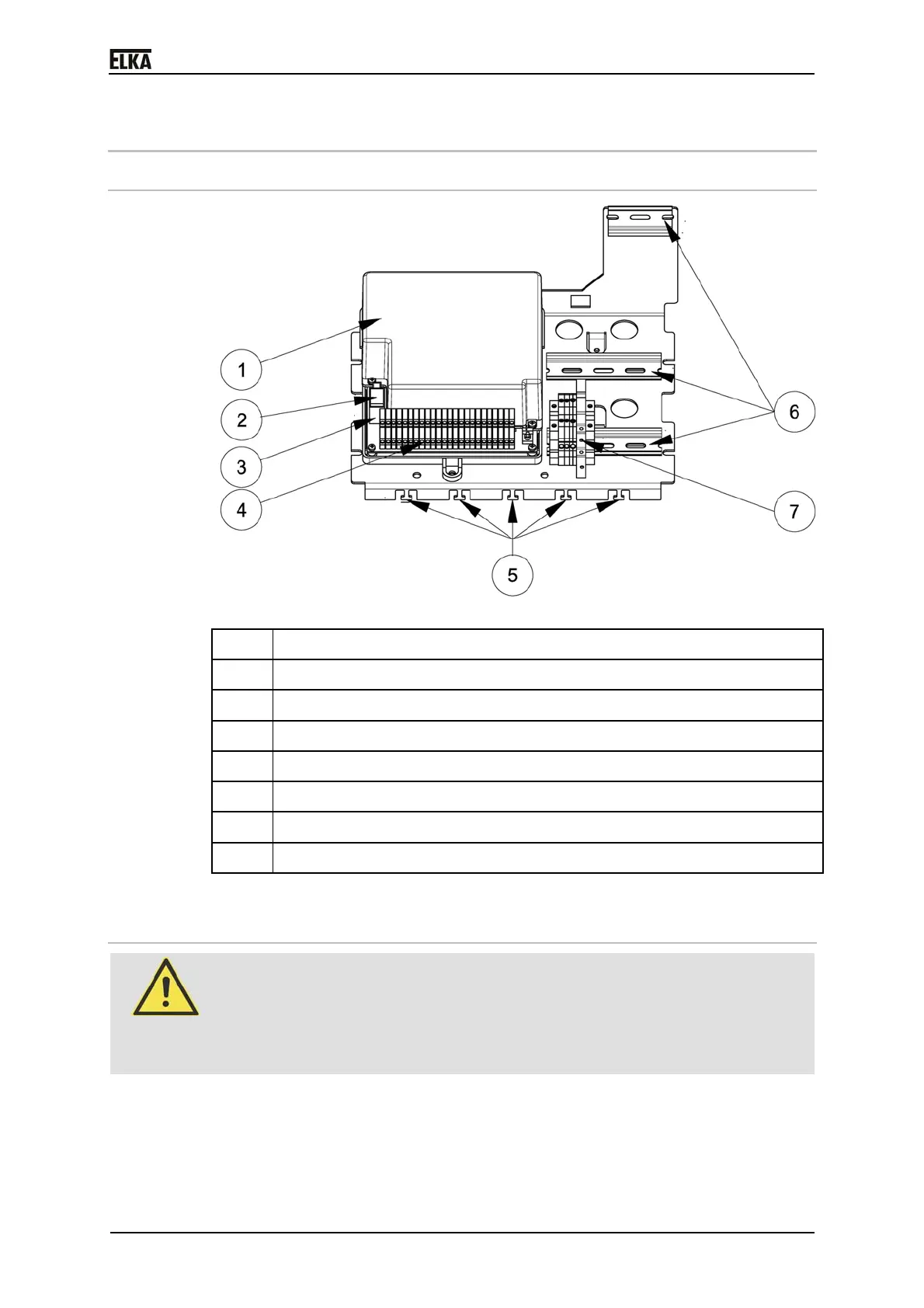

Drawing 18
Pos. Description
1 Controller MO 24 (with housing and cover)
2 Supply voltage 24VDC
3 Motor connection
4 Terminal row
5 Fixing clamp for power- and signal lines
6 Top hat rail for accessories (optional or on-site)
7 Power supply with on-off switch
Table 8
8.2 Mains connection
WARNING!
Danger through voltage!
Danger of an electric shock.
 Only certified electricians (VDE 0100) should connect the controller to the
mains supply.
