NOTE: DUE TO THE WEIGHT OF THE ALLURE FAUCETS, ELKAY
RECOMMENDS THESE FAUCETS BE INSTALLED TO AN 18 GAUGE
STAINLESS STEEL SINK (OR HEAVIER) OR TO A SOLID SURFACE
COUNTERTOP.
Maximum thickness for solid surface countertop is 1-1/2".

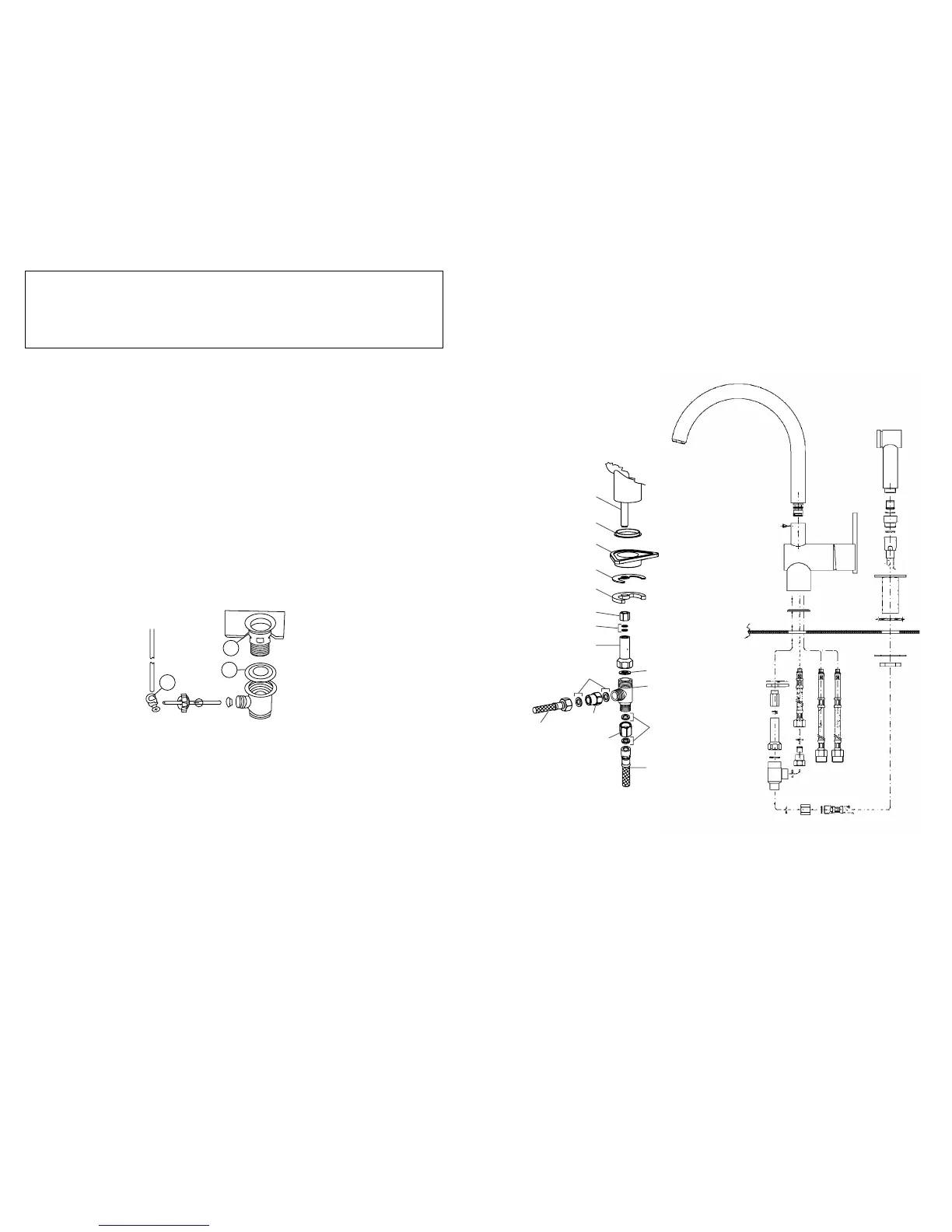

Installation Instructions for LK6155
1. Place the faucet base in the faucet hole. Make sure O-ring is placed
between the faucet and the sink (or countertop).
2. Slip the shaped rubber washer over the supply pipes and fasten by fixing
the claw and the mounting nut to be tightened on the bolt.
3. Connect the flexible supply tubes to water supply.
4. Place the washer and drain in faucet hole. Washer (1) to be in between drain
and sink.
5. Place other washer (2) on top of body and screw onto the drain.
6. Fix the horizontal rod (with ball) to the drain. The horizontal rod must be per-
pendicular to the wall.
7. Insert the vertical rod in the hole in the back of the faucet and connect it to
the horizontal rod with the clamp.
8. Connect shank extension to mounting shank using 2 copper gaskets.
Then attach diverter housing to bottom of shank after inserting a 3/4" fiber
washer. Note: Ensure white retaining sleeve remains in diverter housing.
9. Connect check valve adaptor to diverter housing and diverter return hose
to adaptor using two 7/16" fiber washers.
10. Attach spray hose adaptor to bottom of diverter using a 1/2" fiber washer.
Installation Instructions for
LK6165, LK6166, LK6175 and LK6176
1. Insert the spout into the faucet body and lock it with set screw. (Some models
are pre-assembled.)
2. Position base sleeve into faucet body. Place plastic washer onto base.
3. Attach 2 supply hoses to faucet body, passing through faucet base.
4. Attach mounting shank to faucet body in similar manner. Attach diverter
return hose in similar manner.
5. Pass hoses throough hole in deck, making sure plastic ring is positioned
between faucet base and deck.
6. If required position support bracket underneath deck.
7. Slip rubber C washer and C bracket over shank and around hoses. Secure
faucet assembly with mounting nut.
1. Place side spray escutcheon through deck hole. Ensure o-ring remains in
position under escutcheon.
2. Place metal washer on shank and secure escutcheon with nut.
3. Slip hose through escutcheon and attach spray hose to side spray adaptor
using a 1/2" fiber washer.
4. Check that all fittings are tight. Check for leaks.
