VRCGRNTLDWS*C VRCGRNTL8WS*1C LVRCGRNTLDWS*C LVRCGRNTL8WS*1C
1000001742 (Rev. N - 01/19)

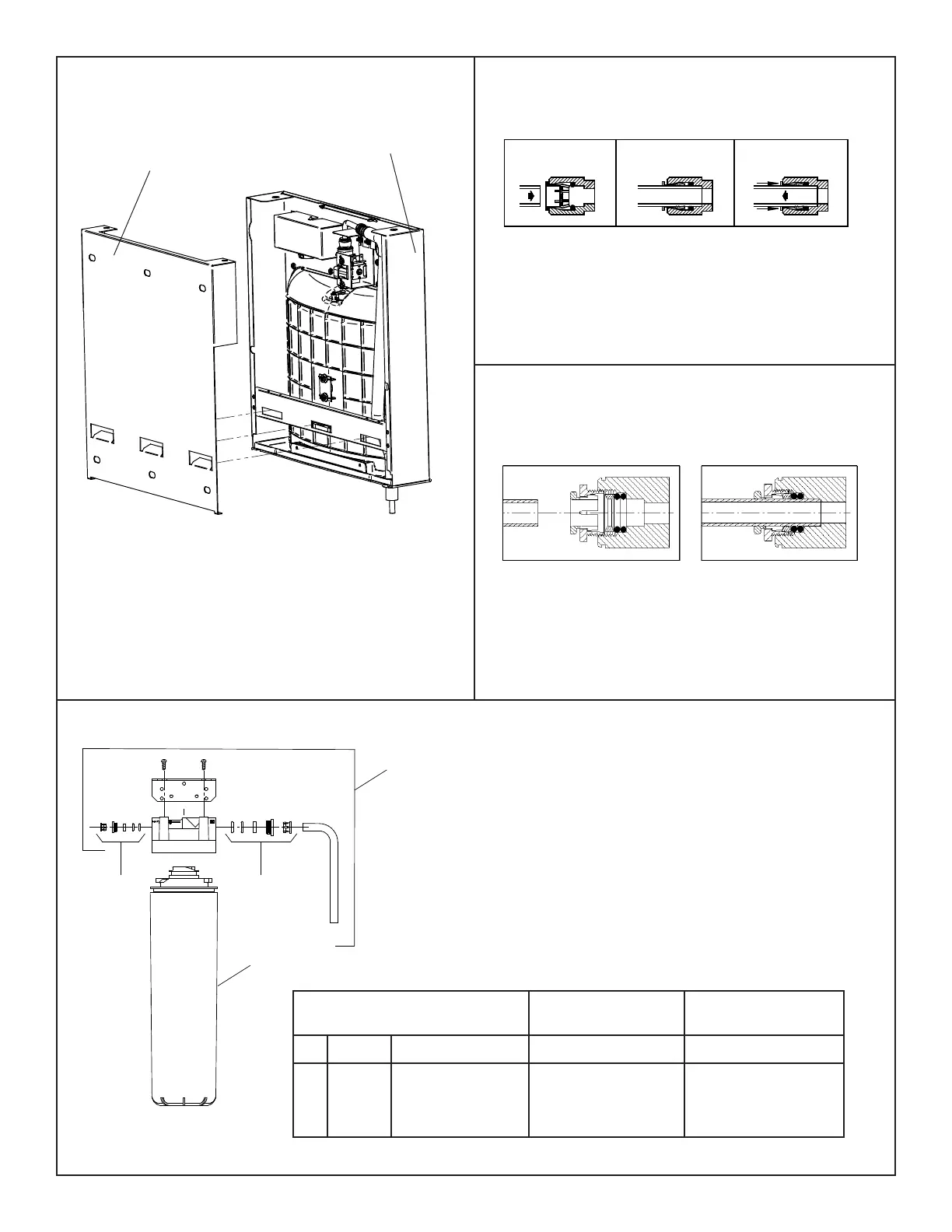

Page 8
Fig. 13
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C
Superseal Fitting Assembly
Fig. 14
Note: Screw the locknut hand tight to seal.
Supersello Accesorio de Montaje
Superseal Montage Assemblage
Remarque : Visser la main de l'écrou de blocage pour
assurer l'étanchéité.
Nota: Apriete la mano de la contratuerca para sellar.
Fig. 15
2
2
1
DESCRIPCIÓN
ITEM
NO.
Filter Assy-3000 Gal.
Kit-Filter Head Fittings-includes
John Guest Fittings
Assy-Filter Head & Bracket
includes John Guest Ftgs/
Screws
1
2
3
51300C
98926C
1000003563
Ensamblado del Filtro-3000 Galón
Cabeza Kit-Filter-Accesorios incluye
John Guest Herrajes
Montaje ltro cabeza y soporte
incluye tornillos y accesorios John
Guest
DESCRIPTION
PART
NO.
Ens. ltre-3000 Gallon
Head-Filter Kit Raccords-Raccords
comprend John Guest
Assemblée-ltre tête & Support
inclut John Guest/vis
DESCRIPTION
WATERSENTRY
®
PLUS FILTER PARTS LIST
(See Fig. 15)
LISTA DE PIEZAS DEL FIL-
TRO (Vea la Fig. 15)
LISTE DES PIÈCES DU
FILTRE (Voir Fig. 15)
Fig. 12
3
WALL MOUNTING PLATE
BOTTLE FILLING
UNIT
