Elkay EZH2O VRCGRNTLDWS C Series User Manual

VRCGRNTLDWS*C VRCGRNTL8WS*1C LVRCGRNTLDWS*C LVRCGRNTL8WS*1C
1000001742 (Rev. N - 01/19)
Page 9
WHT
GND
BLK
FAN
3
1
2
5
M
S
C
1
2
3
COLD CONTROL
(WATER)
6
RELAY
COMPRESSOR
OVERLOAD
Fig. 16

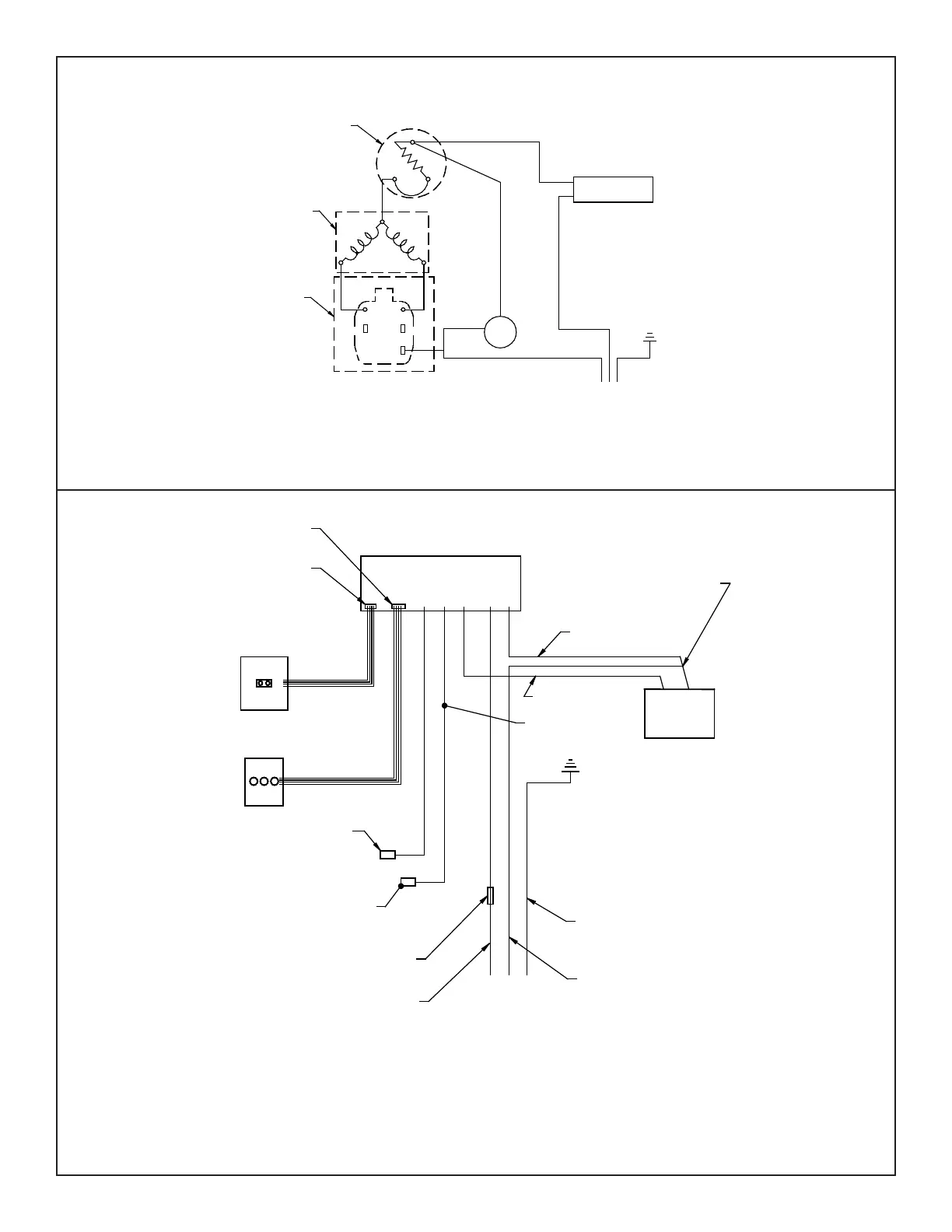

115V Wiring Diagram
Diagrama de cableado de 115 voltios
schéma de câblage de 115 volts
BOTTLE FILLER WIRING DIAGRAM 115 VOLT & 220 VOLT SINGLE & BI-LEVEL
DIAGRAMA DE CABLEADO DE RELLENADORES DE BOTELLAS DE 115 VOLTIOS Y 220 VOLTIOS SOLA Y DOS NIVELES
REMPLISSAGE DE BOUTEILLE DE CÂBLAGE DIAGRAMME 115 VOLTS & 220 VOLT UNIQUE & DEUX NIVEAUX
Fig. 17
MAIN BOARD
I.R.
BOARD
LED
BOARD
GND
SOLENOID
RED
POWERCORD
FOUR PIN
CONNECTOR
FIVE PIN
CONNECTOR
WHITE
CONNECTOR FROM
POWER CORD
LINE VOLTAGE
SMOOTH
BLACK
GROUND
GREEN
NEUTRAL
WHITE
RIBBED
PIGGY BACK TERMINAL
ON POWER CORD
YELLOW
NOT USED
CAPPED
YELLOW
VIOLET
NOT USED
CAPPED

Elkay EZH2O VRCGRNTLDWS C Series Specifications

General

Type	Water Dispenser
Cooling Capacity	8.0 GPH
Filter Status	Filtered
Material	Stainless Steel
Brand	Elkay
Mounting Location	Wall
Filtered	Yes
Installation Type	Wall Mount
Product Type	Bottle Filling Station
Model	EZH2O VRCGRNTLDWS C
Certifications	NSF/ANSI 61
Warranty	5 Years
